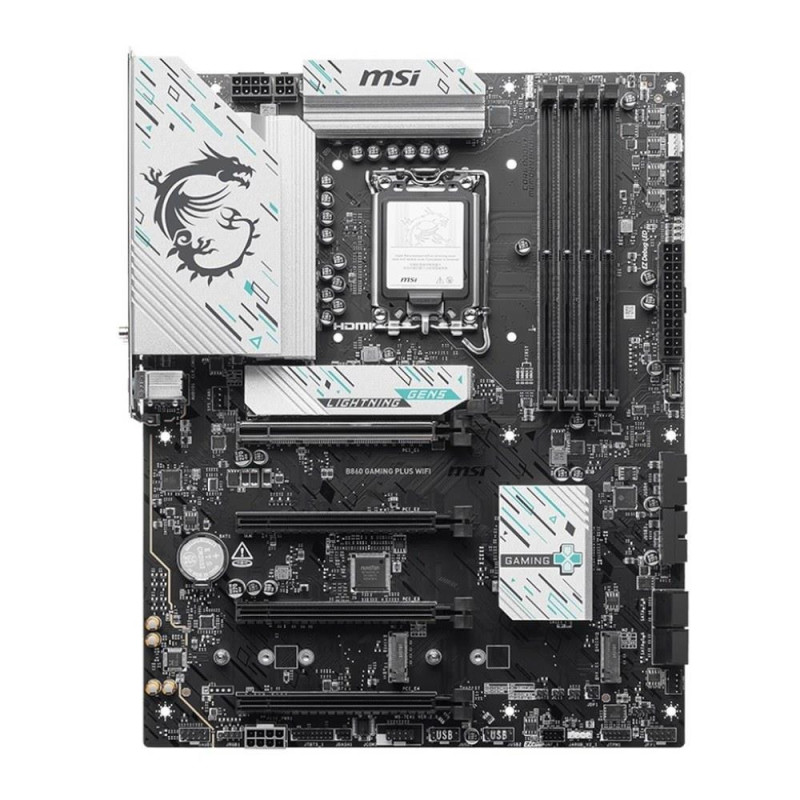

Płyta MSI B860 GAMING PLUS WIFI

Opis

Informacje dodatkowe

Support for Windows 11 64-bit

Kod producenta

B860 GAMING PLUS WIFI

Cechy

B860 GAMING PLUS WIFI;ATX

Wyposażenie dodatkowe

1 to 2 EZ Conn-Cable (V1)
EZ M.2 Clip II Remover
EZ M.2 Clips II
EZ Wi-Fi antenna
SATA Cables

Chipset płyty głównej

Intel® B860

Maksymalna wielkość pamięci

256 GB

Format płyty

ATX

Tryb pracy pamięci RAM

Dual Channel

Gniazda karty graficznej

DisplayPort
HDMI
Thunderbolt™ 4

Gniazda karty dźwiękowej

3x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu

Złącza PCI Express x16

4

Ilość złącz pamięci DDR5

4

Port PS/2

Brak

Port szeregowy (COM)

1x wewnętrzne gniazdo portu COM

Port równoległy (LPT)

Brak

Maksymalna ilość portów USB 2.0

8

Inne porty i gniazda

2x Addressable V2 RGB LED connector
2x Antenna Ports
4x EZ Debug LED
4x System Fan
CPU Fan
Chassis Intrusion (JCI)
Clear CMOS button(s)
Combo Fan (Pump_Sys Fan)
EZ Conn-header (JAF_1)
Gniazdo modułu TPM
RGB LED connector
Thunderbolt 5 card connector(JTBT5, support RTD3)
Tuning Controller Connector

Port LAN

1x 5 Gigabit LAN Intel® Killer™ E5000

Uwagi do kontrolera SATA

- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,
supports 2280/2260 devices
supports 2280/2260/2242 devices

Uwagi do WiFi / BT

6GHz band support may depend on every country’s regulations and Wi-Fi 7
Intel Killer™ BE1750x Wi-Fi 7
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
The Bluetooth version may be updated, please refer to the Wi-Fi chipset
The Wireless module is pre-installed in the M.2 (Key-E) slot
Windows 11 plan
vendor's website for details. Bluetooth 5.4 support schedule depends on
will be ready in Windows 11 SV3

Uwagi do złącz PCI

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetooth

Bluetooth V5.4

Uwagi do karty graficznej

Available only on processors featuring integrated graphics
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Support HDMI 2.1, maximum resolution of 4K 60Hz
Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over
USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

Uwagi do pamięci RAM

- 1DPC 1R Max speed up to 8800+ MT/s
- 1DPC 2R Max speed up to 7200+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 5600+ MT/s
Max. overclocking frequency:
Supports CUDIMM
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports non-ECC, un-buffered memory
The DIMM slots on this motherboard have double-sided latches

Zintegrowana karta dźwiękowa

Realtek® ALC 897 7.1-Channel High Definition Audio CODEC

Gniazdo procesora

Socket 1851

Obsługiwane typy procesorów

Intel Core Ultra Processors (series 2)

Standard pamięci

DDR5-4800
DDR5-5000
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-5800
DDR5-6000
DDR5-6200
DDR5-6400
DDR5-6400 (OC)
DDR5-6800 (OC)
DDR5-7000 (OC)
DDR5-7200 (OC)
DDR5-7600 (OC)
DDR5-7800 (OC)
DDR5-7900 (OC)
DDR5-8000 (OC)
DDR5-8200 (OC)
DDR5-8400 (OC)
DDR5-8600 (OC)
DDR5-8800 (OC)

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 3x M.2

Maksymalna ilość portów USB 3.x

9

Porty USB na panelu tylnym

4x USB 2.0 + 2x USB 3.0 + 2x USB 3.1

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.1 Type-C (1 port)

Gniazdo zasilania

ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin) + PCIe (8-pin)

Wymiary [S x W] (mm)

243,84 x 304,8

Opakowanie

BOX

Zawiera baterię / akumulator

Tak
