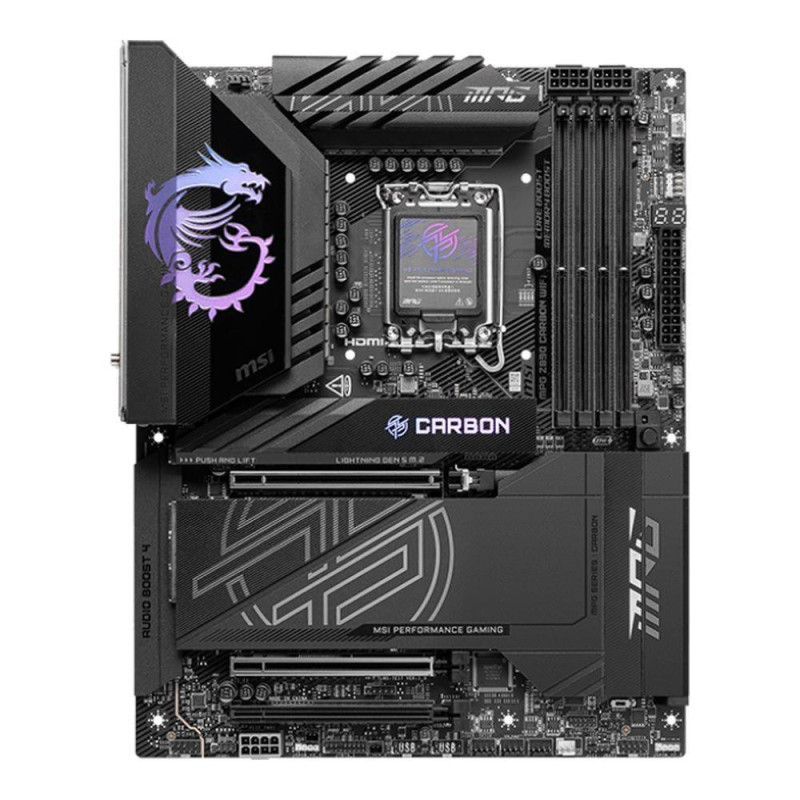

Płyta MSI MPG Z890 CARBON WIFI

Opis

Informacje dodatkowe

Support for Windows® 11 64-bit

Kod producenta

MPG Z890 CARBON WIFI

Cechy

MPG Z890 CARBON WIFI

Chipset płyty głównej

Intel® Z890

Maksymalna wielkość pamięci

256 GB

Format płyty

ATX

Tryb pracy pamięci RAM

Dual Channel

Gniazda karty graficznej

2x Thunderbolt
HDMI

Gniazda karty dźwiękowej

2x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Złącza PCI Express x16

3

Ilość złącz pamięci DDR5

4

Port PS/2

Brak

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Maksymalna ilość portów USB 2.0

4

Inne porty i gniazda

2x Front Panel
3x Addressable V2 RGB LED connector
5x System Fan
CPU Fan
Chassis Intrusion (JCI)
Combo Fan (Pump_Sys Fan)
EZ Conn-header (JAF_2)
RGB LED connector
TPM pin header
Thermal Sensor connectors
Water Flow connector

Port LAN

1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Intel® I226V)
1x 5 Gigabit LAN Intel® Killer™ E5000B

Uwagi do kontrolera SATA

- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4,
- M.2_2 Source (From CPU) supports up to PCIe 4.0 x4,
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 ,
- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4,
- M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,
Please refer to the manual for M.2 SSD heatsink restrictions.
supports 2280/2260 devices
supports 22110/2280/2260 devices

Uwagi do WiFi / BT

6GHz band support may depend on every country’s regulations and Wi-Fi 7
Intel® Killer™ BE1750x Wi-Fi 7
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
The Bluetooth version may be updated, please refer to the Wi-Fi chipset
The Wireless module is pre-installed in the M.2 (Key-E) slot
Windows 11 version 24H2.
vendor’s website for details. Bluetooth 5.4 will be ready in
will be ready in Windows 11 version 24H2.

Uwagi do złącz PCI

- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 supports BIOS adjustment to x8+x4+x4
PCI_E2 supports BIOS adjustment to x4+x4

Maksymalna ilość portów USB 4.0

2

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetooth

Bluetooth V5.4

Uwagi do karty graficznej

Graphics specifications may vary depending on the CPU installed
Support HDMI 2.1 with FRL port, maximum resolution of 8K 60Hz
Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over
USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

Uwagi do pamięci RAM

- 1DPC 1R Max speed up to 9200+ MT/s
- 1DPC 2R Max speed up to 7200+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 5600+ MT/s
Max. overclocking frequency:
Supports CUDIMM
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports non-ECC, un-buffered memory

Zintegrowana karta dźwiękowa

Realtek® ALC1220P Codec 7.1-Channel High Definition Audio

Gniazdo procesora

Socket 1851

Obsługiwane typy procesorów

Intel Core Ultra Processors (series 2)

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 5x M.2 + RAID 0,1,5,10

Maksymalna ilość portów USB 3.x

16

Porty USB na panelu tylnym

10x USB 3.1 + 1x USB 3.1 Type-C + 2 Thunderbolt 4/USB4

Gniazda USB na płycie głównej

4x USB 2.0 + 4x USB 3.0 + 1x USB 3.2 Type-C

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)

Wymiary [S x W] (mm)

243,84 x 304,8

Opakowanie

BOX

Zawiera baterię / akumulator

Tak
