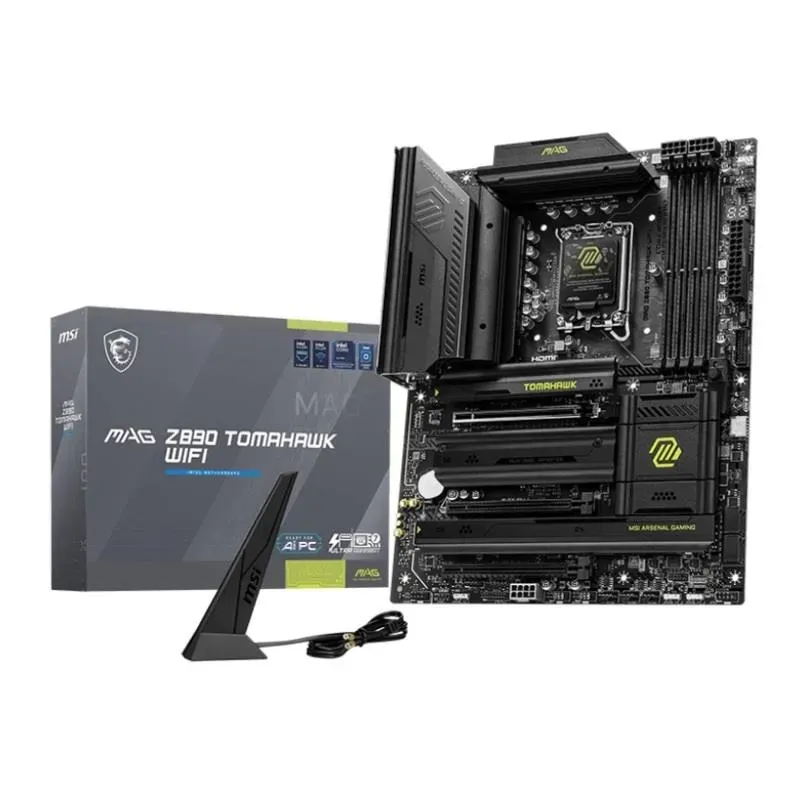

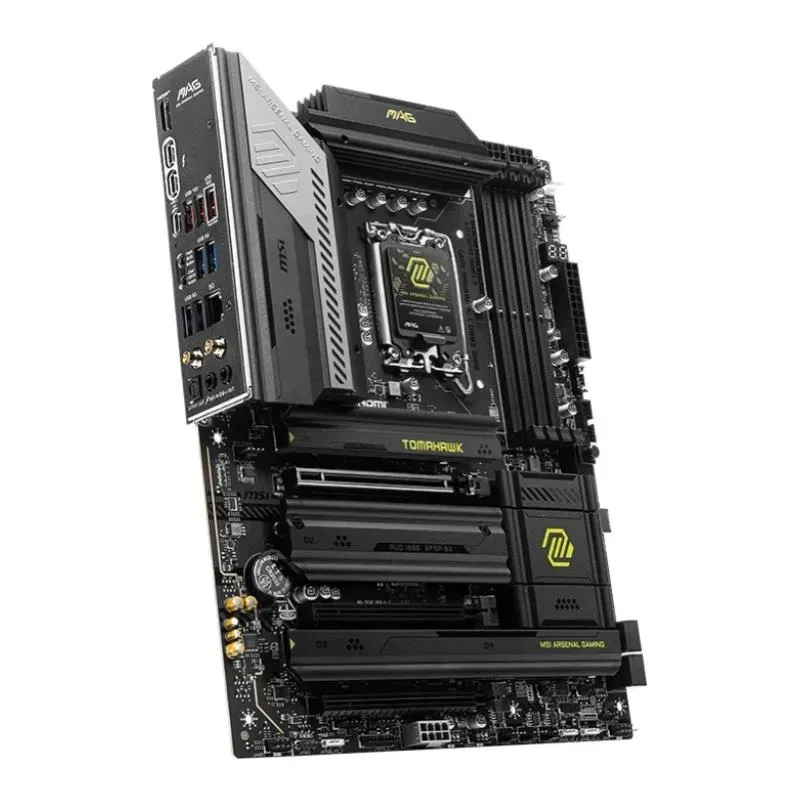

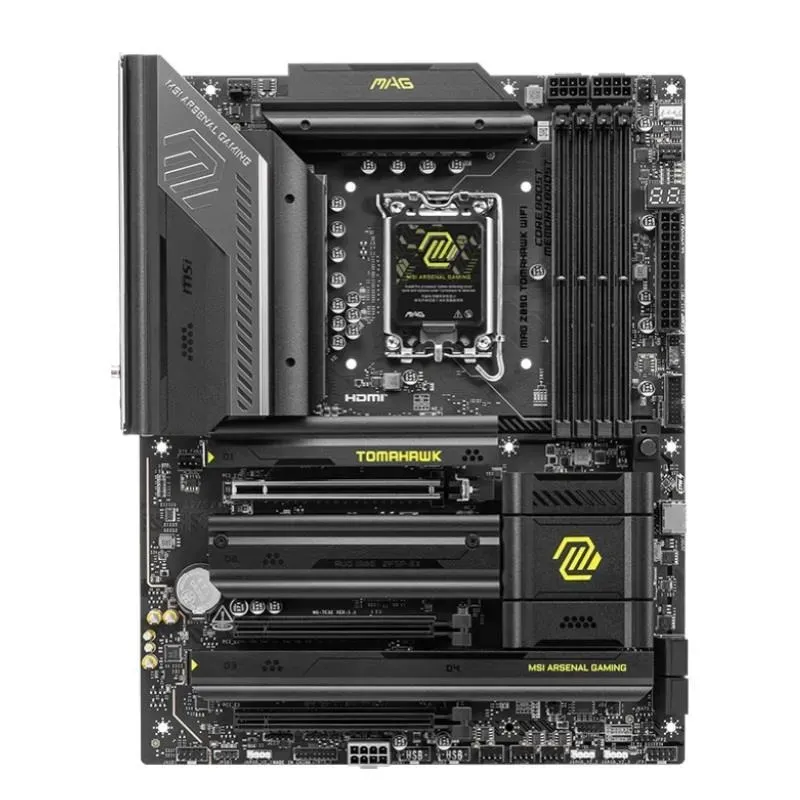

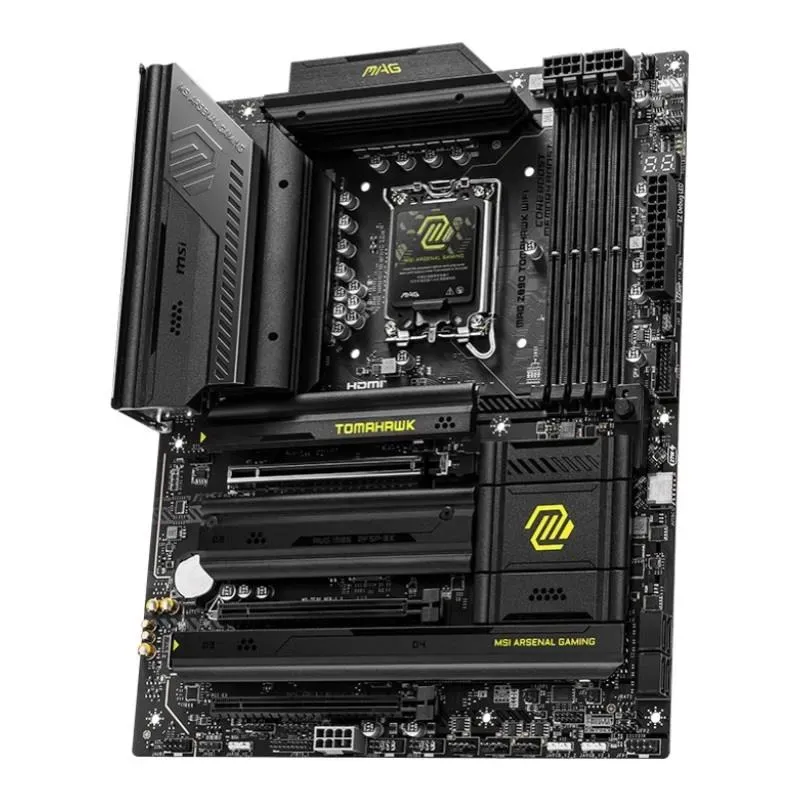

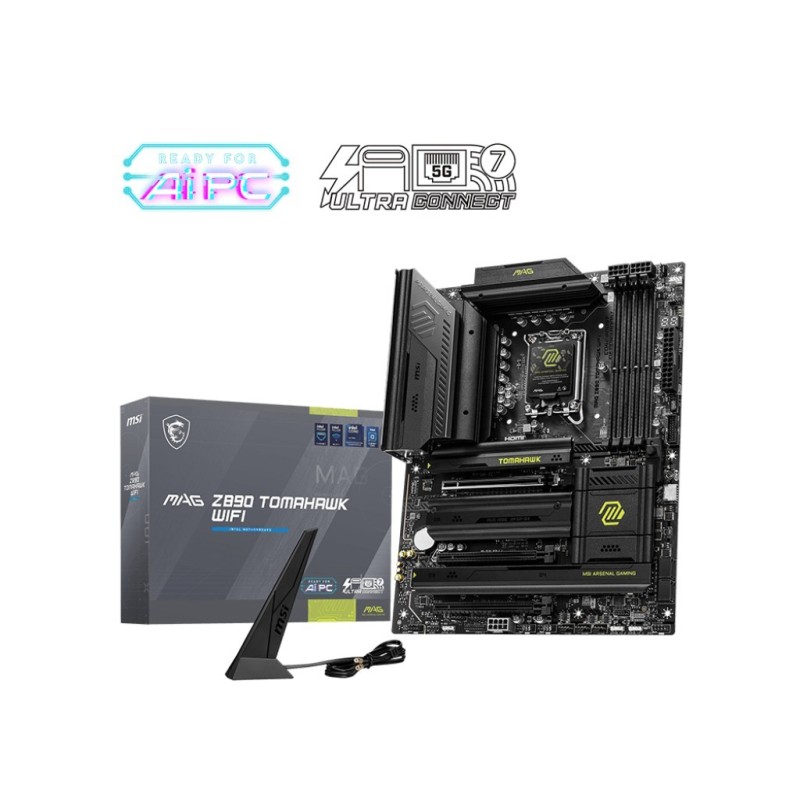

Płyta MSI MAG Z890 TOMAHAWK WIFI

Opis

Gniazdo procesora

Socket 1851

Format płyty

ATX

Zawiera baterię / akumulator

Tak

Wymiary [S x W] (mm)

243,84 x 304,8

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 10 Gigabit LAN Marvell® AQC113CS

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

Intel® Z890

Obsługiwane typy procesorów

Intel Core Ultra Processors (series 2)

Uwagi do karty graficznej

Graphics specifications may vary depending on the CPU installed
Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz
Thundebolt 4 ports supporting DisplayPort 1.4 with HBR3 over USB Type-C,
with a maximum resolution of 8K@60Hz

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

- 1DPC 1R Max speed up to 9200+ MT/s
- 1DPC 2R Max speed up to 7200+ MT/s
- 2DPC 1R Max speed up to 4800+ MT/s
- 2DPC 2R Max speed up to 4800+ MT/s
Max. overclocking frequency:
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Supports CUDIMM
Supports Dual-Controller Dual-Channel mode
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Non-ECC, Un-buffered Memory

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s + 5x M.2

Uwagi do kontrolera SATA

- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,
- M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 ,
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 ,
- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 ,
- M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,
BIOS adjustment
M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual
supports 2280/2260 devices
supports 22110/2280 devices

Gniazda karty graficznej

2x Thunderbolt™ 4 (USB Type-C®)
HDMI

Zintegrowana karta dźwiękowa

Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA

Gniazda karty dźwiękowej

2x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Uwagi do karty dźwiękowej

Supports up to 32-Bit/384 kHz playback on front panel

Złącza PCI Express x16

3

Uwagi do złącz PCI

- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed
- PCI_E1 slot will run at x8 speed when PCI_E2 slot installing device
- PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4
- PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
- PCI_E2 support manual BIOS adjustment to X4+X4
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
when installing PCIe Gen 5 M.2 device in the M2_4 slot

Maksymalna ilość portów USB 2.0

4

Maksymalna ilość portów USB 3.x

18

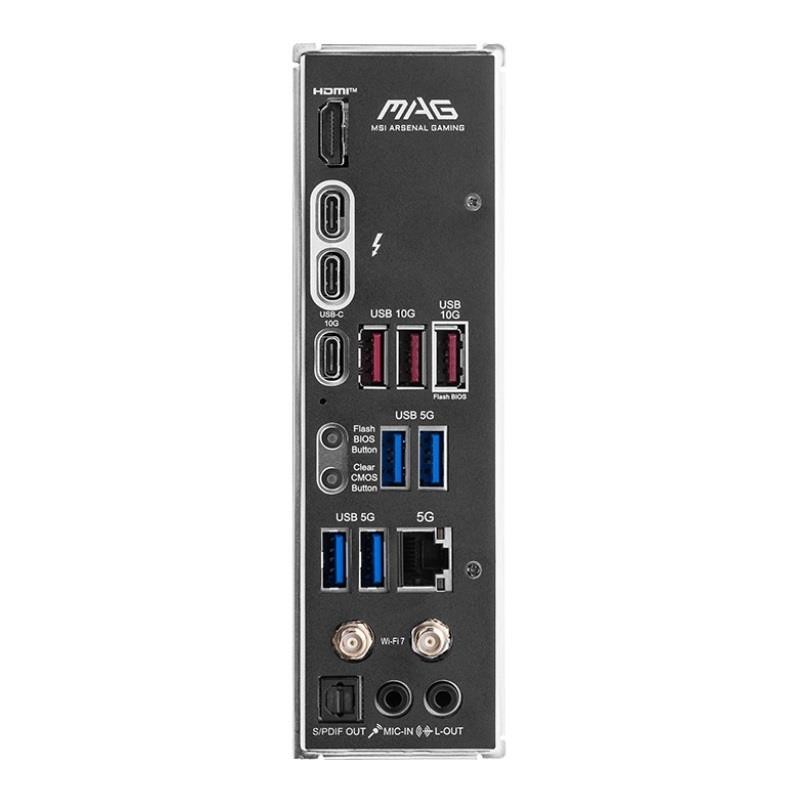

Porty USB na panelu tylnym

11x USB 3.1 + 2x USB 3.1 Type-C

Gniazda USB na płycie głównej

2x USB 2.0 (2 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)

Port PS/2

Brak

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Inne porty i gniazda

2x Combo Fan (Pump_Sys Fan)
2x Front Panel
2x Thermal Sensor connectors
3x Addressable V2 RGB LED connector
5x System Fan
Chassis Intrusion (JCI)
Clear CMOS button(s)
EZ Conn-header (JAF_2)
Front Type-C Quick Charge Connector(PD_PWR1)
Gniazdo modułu TPM
RGB LED connector
Slow mode booting jumper
Thunderbolt 5 card connector(JTBT5, support RTD3)
Tuning Controller Connector
V-check point
Water Flow connector

Ilość złącz pamięci DDR5

4

Uwagi do WiFi / BT

6GHz band support may depend on every country’s regulations and Wi-Fi 7
Intel® Killer™ BE1750x Wi-Fi 7
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
The Bluetooth version may be updated, please refer to the Wi-Fi chipset
The Wireless module is pre-installed in the M.2 (Key-E) slot
vendor's website for details. Bluetooth 5.4 will be ready in Windows 11
version 24H2
will be ready in Windows 11 version 24H2
