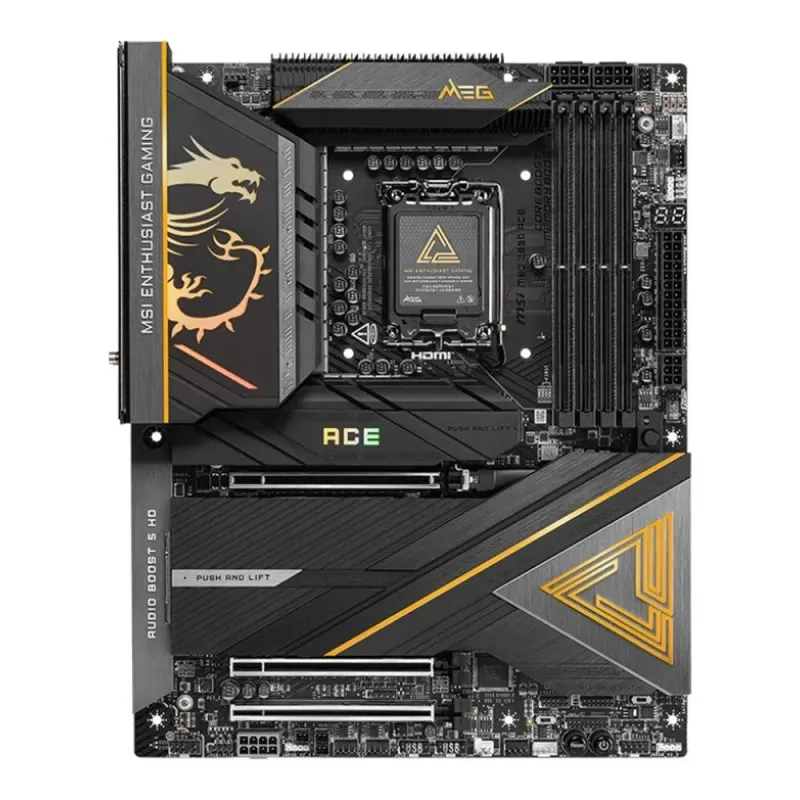

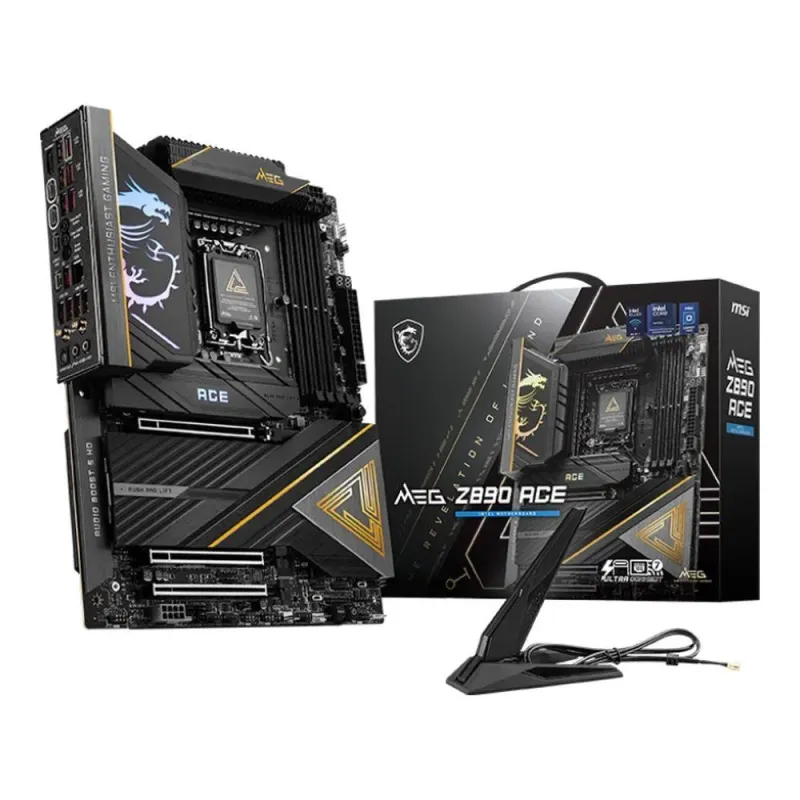

Płyta MSI MEG Z890 ACE /Z890/DDR5/SATA3/M.2/TB4/WiFi/BT/PCIe5.0/s.1851/ATX

Opis

Gniazdo procesora

Socket 1851

Format płyty

ATX

Zawiera baterię / akumulator

Tak

Wymiary [S x W] (mm)

243,84 x 304,8

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 10 Gigabit LAN Marvell® AQC113CS

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

Intel® Z890

Obsługiwane typy procesorów

Intel Core Ultra Processors (series 2)

Uwagi do karty graficznej

Graphics specifications may vary depending on the CPU installed
Support HDMI 2.1 with FRL port, maximum resolution of 8K 60Hz
Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over
USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

- 1DPC 1R Max speed up to 9200+ MT/s
- 1DPC 2R Max speed up to 7200+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 5600+ MT/s
Max. overclocking frequency:
Supports CUDIMM
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Non-ECC, Un-buffered Memory

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 5x M.2 + RAID 0,1,5,10

Uwagi do kontrolera SATA

- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4,
- M.2_2 Source (From CPU) supports up to PCIe 4.0 x4,
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 ,
- M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4,
- M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,
BIOS adjustment
M2_4 and M2_5 cannot support 22110 Device at the same time
M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual
Please refer to the manual for M.2 SSD heatsink restrictions.
supports 2280/2260 devices
supports 22110/2280 devices
supports 22110/2280/2260 devices

Gniazda karty graficznej

2x Thunderbolt
HDMI

Zintegrowana karta dźwiękowa

Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA

Gniazda karty dźwiękowej

2x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Uwagi do karty dźwiękowej

7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel

Złącza PCI Express x16

3

Uwagi do złącz PCI

- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when
PCI_E1 slot will run at x8 speed when PCI_E2 slot installing device
PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4
PCI_E2 support manual BIOS adjustment to X4+X4
installing PCIe Gen 5 M.2 device in the M2_4 slot.

Maksymalna ilość portów USB 2.0

4

Maksymalna ilość portów USB 3.x

18

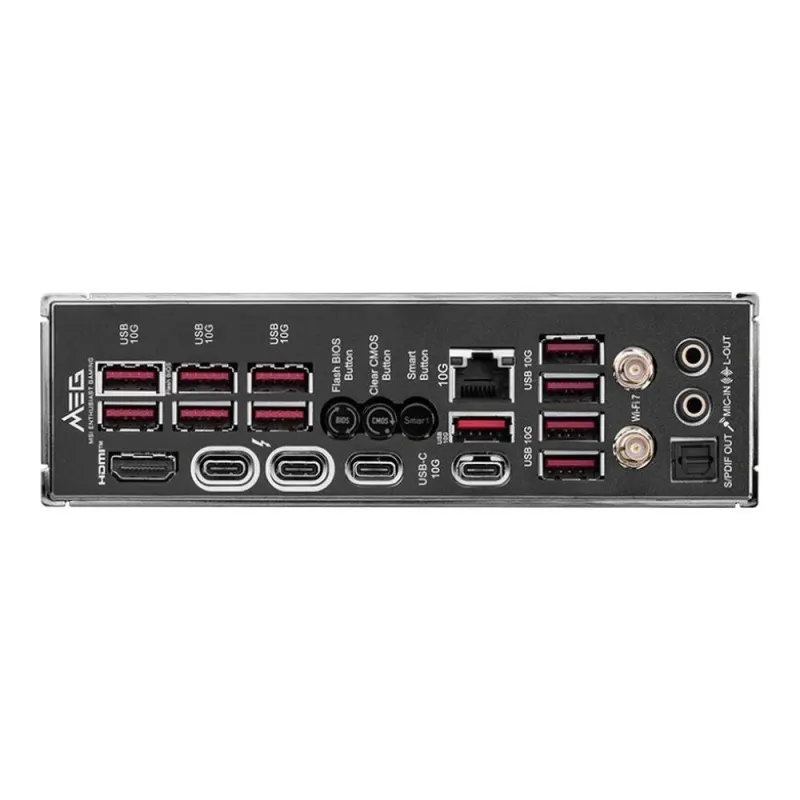

Porty USB na panelu tylnym

11x USB 3.1 + 2x USB 3.1 Type-C + 2x Thunderbolt 4/USB4

Gniazda USB na płycie głównej

4x USB 2.0 + 4x USB 3.0 + 1x USB 3.2 Type-C

Port PS/2

Brak

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Inne porty i gniazda

2x Combo Fan (Pump_Sys Fan)
2x Front Panel
3x Addressable V2 RGB LED connector
5x System Fan
CPU Fan
Chassis Intrusion (JCI)
EZ Conn-header (JAF_2)
RGB LED connector
Slow mode booting jumper
TPM pin header
Thermal Sensor connectors
Tuning Controller Connector
V-check point
Water Flow connector

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)

Ilość złącz pamięci DDR5

4

Maksymalna ilość portów USB 4.0

2

Uwagi do WiFi / BT

6GHz band support may depend on every country’s regulations and Wi-Fi 7
Intel® Killer™ BE1750x Wi-Fi 7
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
The Bluetooth version may be updated, please refer to the Wi-Fi chipset
The Wireless module is pre-installed in the M.2 (Key-E) slot
Windows 11 version 24H2.
vendor’s website for details. Bluetooth 5.4 will be ready in
will be ready in Windows 11 version 24H2.
