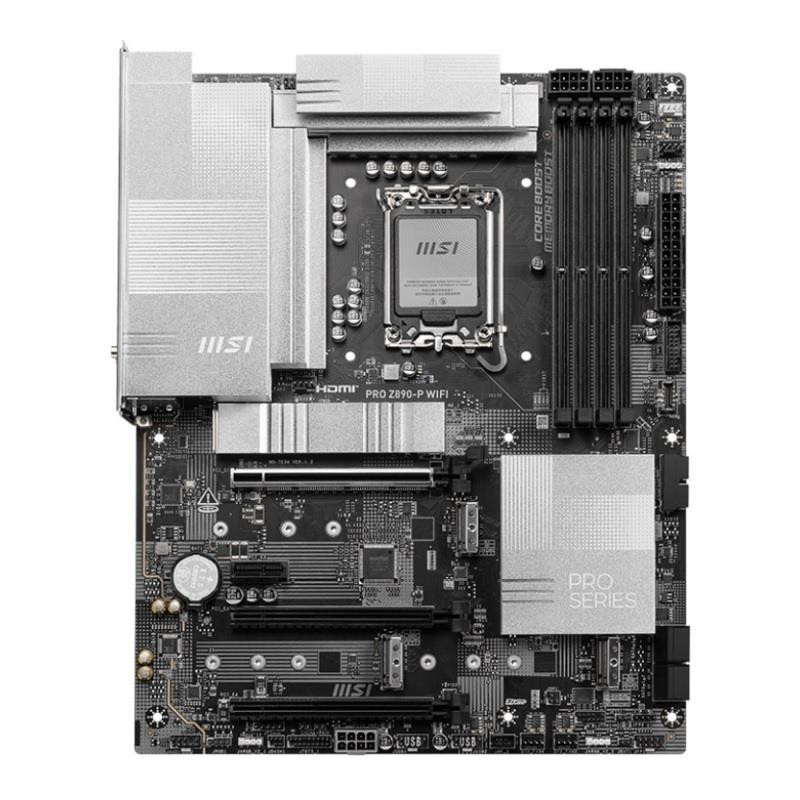

Płyta MSI PRO Z890-P WIFI

Opis

Gniazdo procesora

Socket 1851

Format płyty

ATX

Zawiera baterię / akumulator

Tak

Wymiary [S x W] (mm)

243,84 x 304,8

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 5 Gigabit LAN Realtek®

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

Intel® Z890

Obsługiwane typy procesorów

Intel Core Ultra Processors (series 2)

Uwagi do karty graficznej

Graphics specifications may vary depending on the CPU installed
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Support HDMI™ 2.1, maximum resolution of 4K 60Hz
Thunderbolt™ 4 port, supporting DisplayPort 1.4 over USB Type-C®,
with a maximum resolution of 4K 120Hz / 8K 60Hz

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

- 1DPC 1R Max speed up to 9200+ MT/s
- 1DPC 2R Max speed up to 7200+ MT/s
- 2DPC 1R Max speed up to 4800+ MT/s
- 2DPC 2R Max speed up to 4800+ MT/s
Max. overclocking frequency:
Supports CUDIMM
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Non-ECC, Un-buffered Memory

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10,5 + 4x M.2 - RAID 0,1,10,5

Uwagi do kontrolera SATA

- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,
- M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 ,
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 ,
- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,
supports 2280/2260 devices
supports 2280/2260/2242 devices
supports 22110/2280/2260 devices

Gniazda karty graficznej

DisplayPort
HDMI
USB Type-C/DisplayPort

Zintegrowana karta dźwiękowa

Realtek ALC897

Gniazda karty dźwiękowej

3x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu

Złącza PCI Express x16

3

Złącza PCI Express x1

1

Uwagi do złącz PCI

- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

Maksymalna ilość portów USB 2.0

8

Maksymalna ilość portów USB 3.x

9

Porty USB na panelu tylnym

4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)

Port PS/2

Port combo klawiatury/myszy PS/2

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Inne porty i gniazda

2x Front Panel
3x Addressable V2 RGB LED connector
5x System Fan
CPU Fan
Gniazdo modułu TPM
RGB LED connector
Thunderbolt 5 card connector(JTBT5, support RTD3)
Tuning Controller Connector
Złącze czujnika otwarcia obudowy

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)

Ilość złącz pamięci DDR5

4

Uwagi do WiFi / BT

6GHz band support may depend on every country’s regulations and Wi-Fi 7
Intel® Wi-Fi 7
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
The Bluetooth version may be updated, please refer to the Wi-Fi chipset
The Wireless module is pre-installed in the M.2 (Key-E) slot
Windows 11 version 24H2.
vendor’s website for details. Bluetooth 5.4 will be ready in
will be ready in Windows 11 version 24H2.

Specyficzne kody

EAN13

4711377257701
