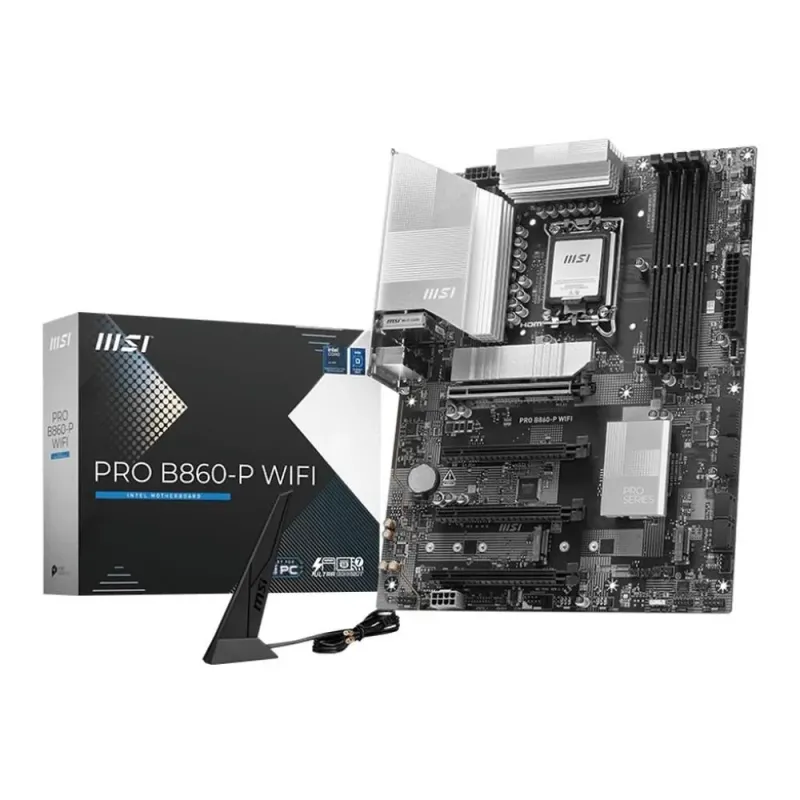

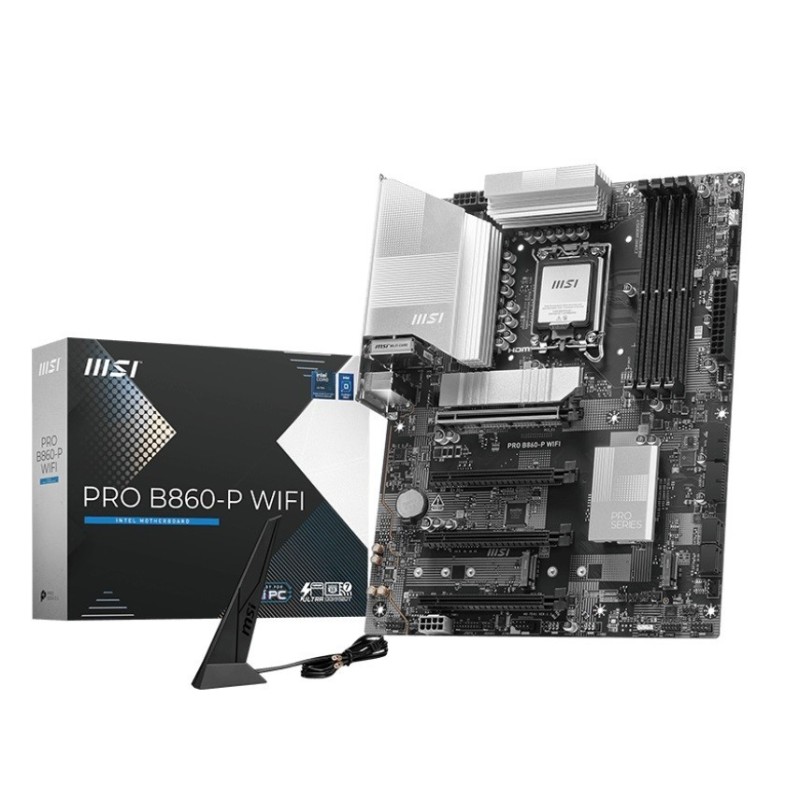

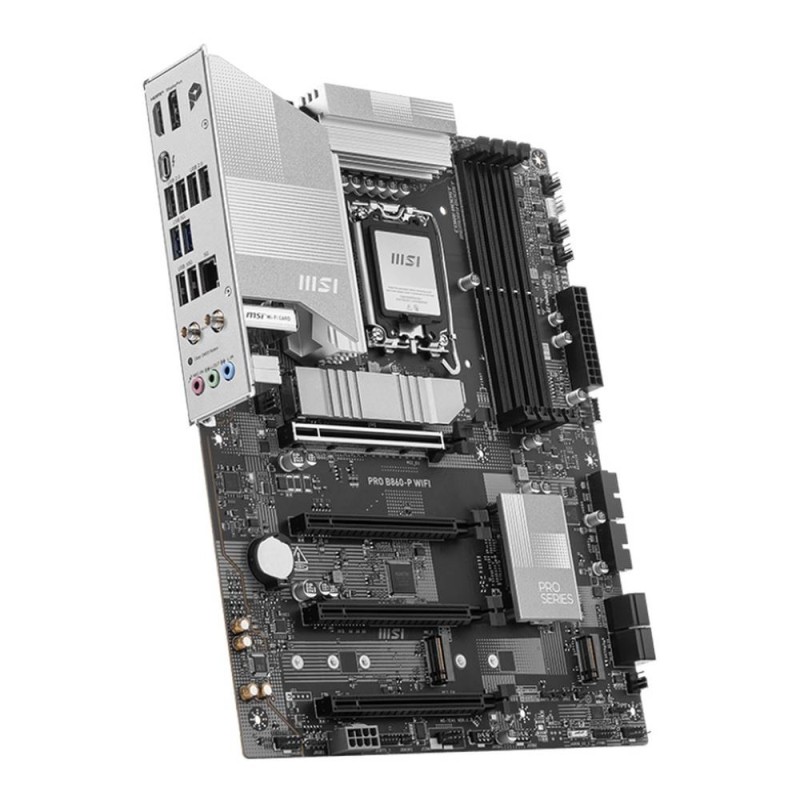

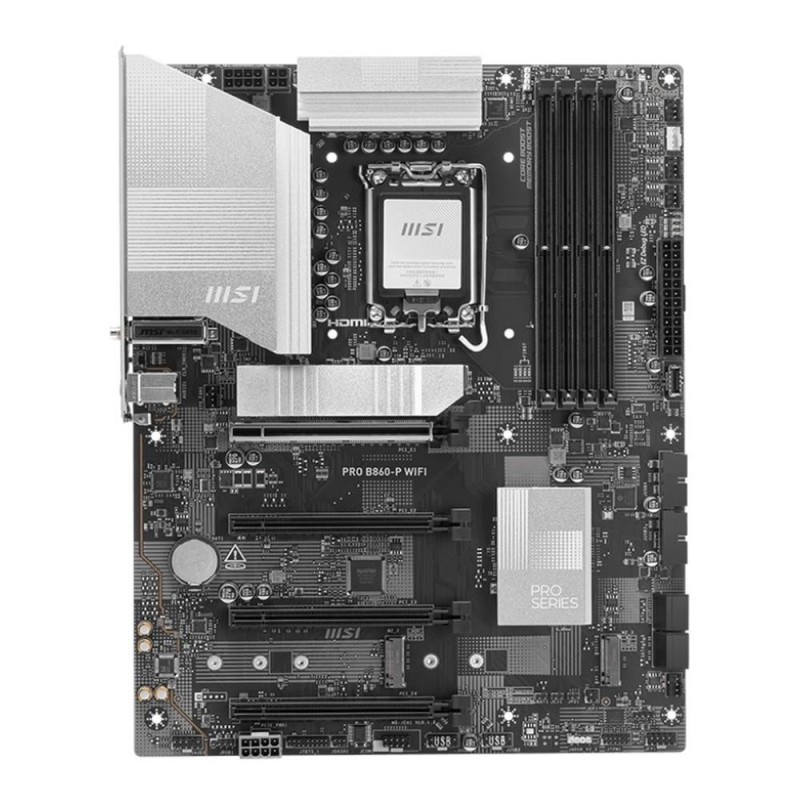

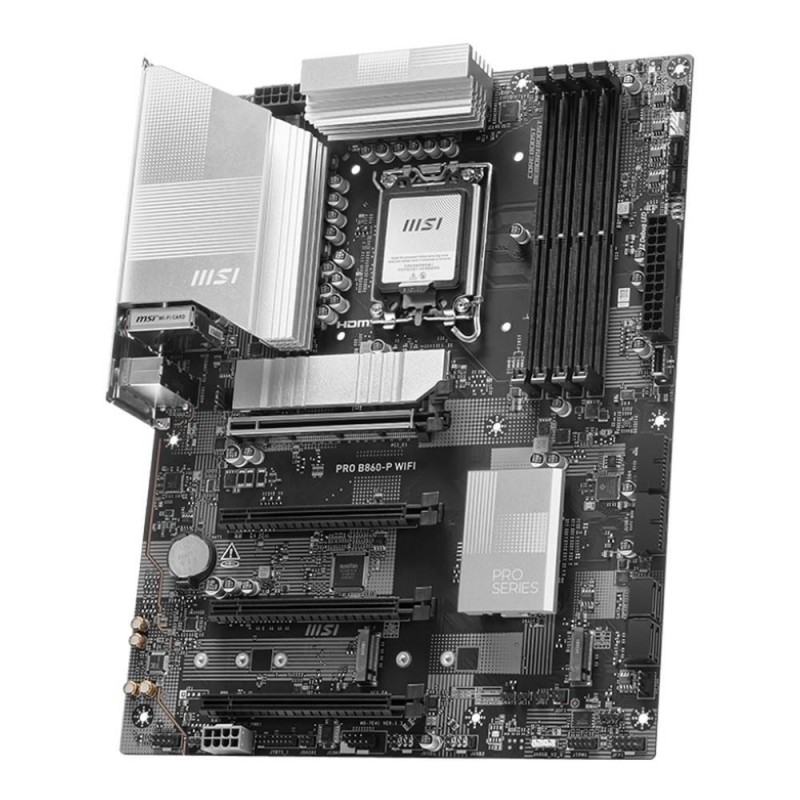

Płyta MSI PRO B860-P WIFI

Opis

Gniazdo procesora

Socket 1851

Format płyty

ATX

Zawiera baterię / akumulator

Tak

Wyposażenie dodatkowe

3x EZ M.2 Clips II
EZ M.2 Clip II Remover
EZ Wi-Fi antenna
SATA Cables

Wymiary [S x W] (mm)

243,84 x 304,8

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 5 Gigabit LAN Realtek®

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

Intel® B860

Obsługiwane typy procesorów

Intel Core Ultra Processors (series 2)

Standard pamięci

DDR5-4800
DDR5-5000
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-5800
DDR5-6000
DDR5-6200
DDR5-6400
DDR5-6400 (OC)
DDR5-6800 (OC)
DDR5-7000 (OC)
DDR5-7200 (OC)
DDR5-7600 (OC)
DDR5-7800 (OC)
DDR5-7900 (OC)
DDR5-8000 (OC)
DDR5-8200 (OC)
DDR5-8400 (OC)
DDR5-8600 (OC)
DDR5-8800 (OC)

Uwagi do karty graficznej

Available only on processors featuring integrated graphics
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Support HDMI 2.1, maximum resolution of 4K 60Hz
Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over
USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

- 1DPC 1R Max speed up to 8800+ MT/s
- 1DPC 2R Max speed up to 7200+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 5600+ MT/s
Max. overclocking frequency:
Supports CUDIMM
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Non-ECC, Un-buffered Memory
The DIMM slots on this motherboard have double-sided latches

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 3x M.2

Uwagi do kontrolera SATA

- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 ,
supports 2280/2260 devices
supports 2280/2260/2242 devices

Gniazda karty graficznej

DisplayPort
HDMI
Thunderbolt™ 4

Zintegrowana karta dźwiękowa

Realtek® ALC 897 7.1-Channel High Definition Audio CODEC

Gniazda karty dźwiękowej

3x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu

Złącza PCI Express x16

4

Uwagi do złącz PCI

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)

Maksymalna ilość portów USB 2.0

8

Maksymalna ilość portów USB 3.x

9

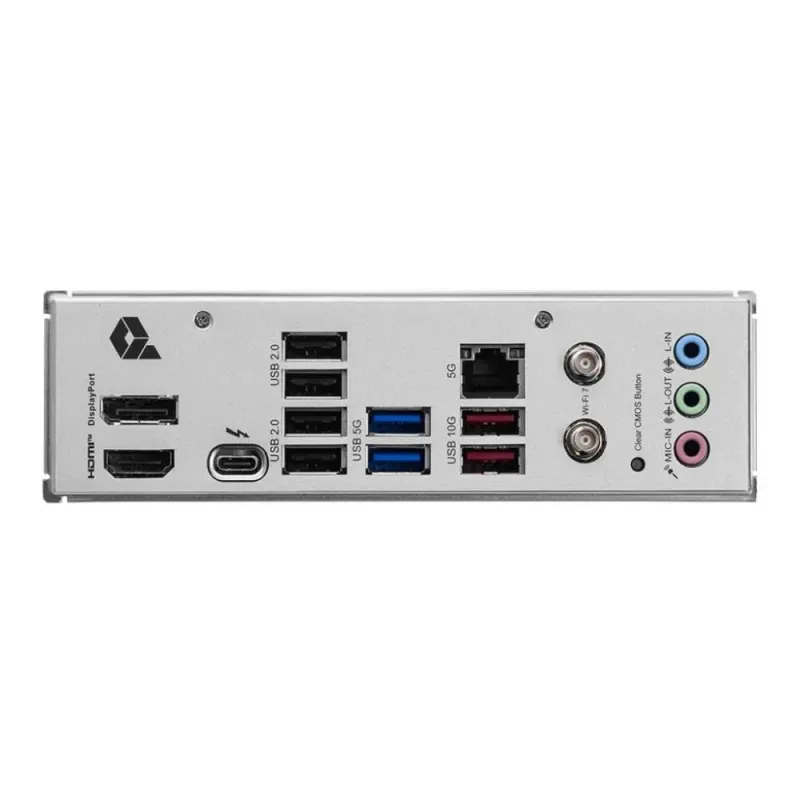

Porty USB na panelu tylnym

4x USB 2.0 + 2x USB 3.0 + 2x USB 3.1

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.1 Type-C (1 port)

Port PS/2

Brak

Port szeregowy (COM)

1x wewnętrzne gniazdo portu COM

Port równoległy (LPT)

Brak

Inne porty i gniazda

2x Addressable V2 RGB LED connector
2x Antenna Ports
4x EZ Debug LED
4x System Fan
CPU Fan
Chassis Intrusion (JCI)
Clear CMOS button(s)
Combo Fan (Pump_Sys Fan)
Gniazdo modułu TPM
RGB LED connector
Thunderbolt 5 card connector(JTBT5, support RTD3)
Tuning Controller Connector

Gniazdo zasilania

ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin) + PCIe (8-pin)

Ilość złącz pamięci DDR5

4

Uwagi do WiFi / BT

6GHz band support may depend on every country’s regulations and Wi-Fi 7
Intel Killer™ BE1750x Wi-Fi 7
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
The Bluetooth version may be updated, please refer to the Wi-Fi chipset
The Wireless module is pre-installed in the M.2 (Key-E) slot
Windows 11 plan
vendor's website for details. Bluetooth 5.4 support schedule depends on
will be ready in Windows 11 SV3
