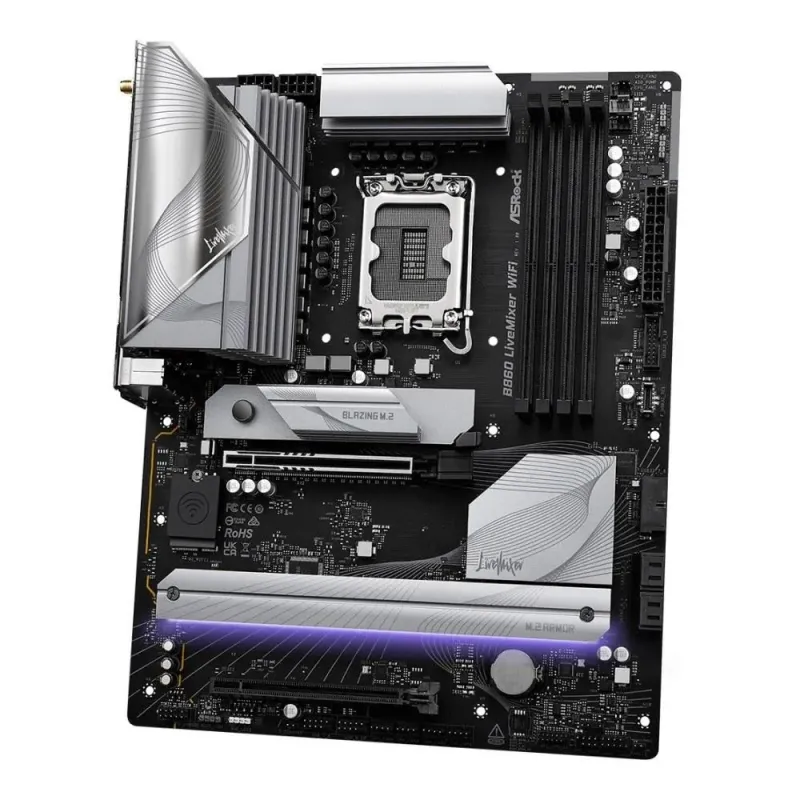

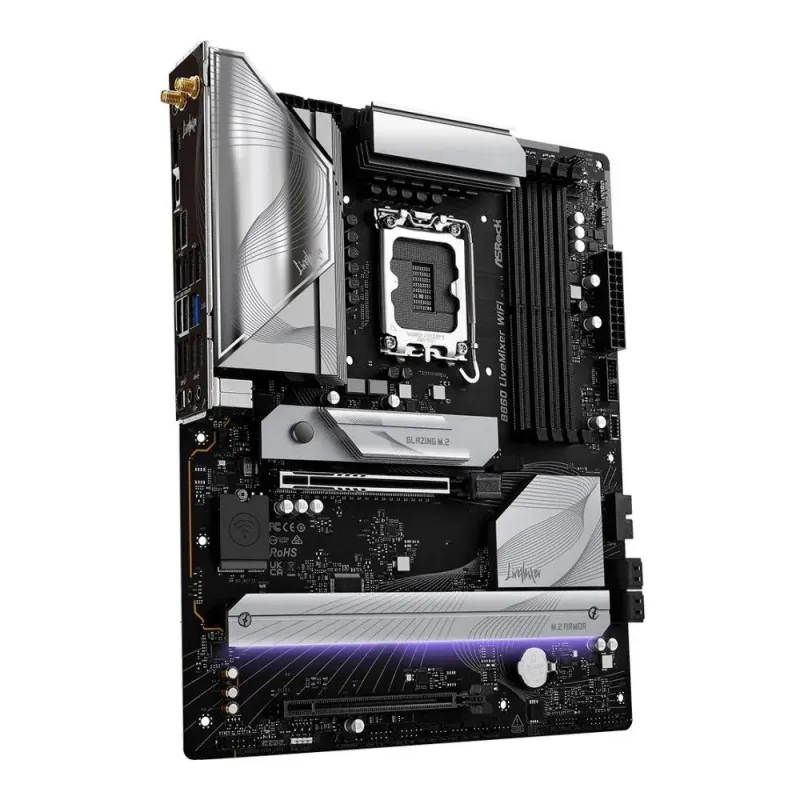

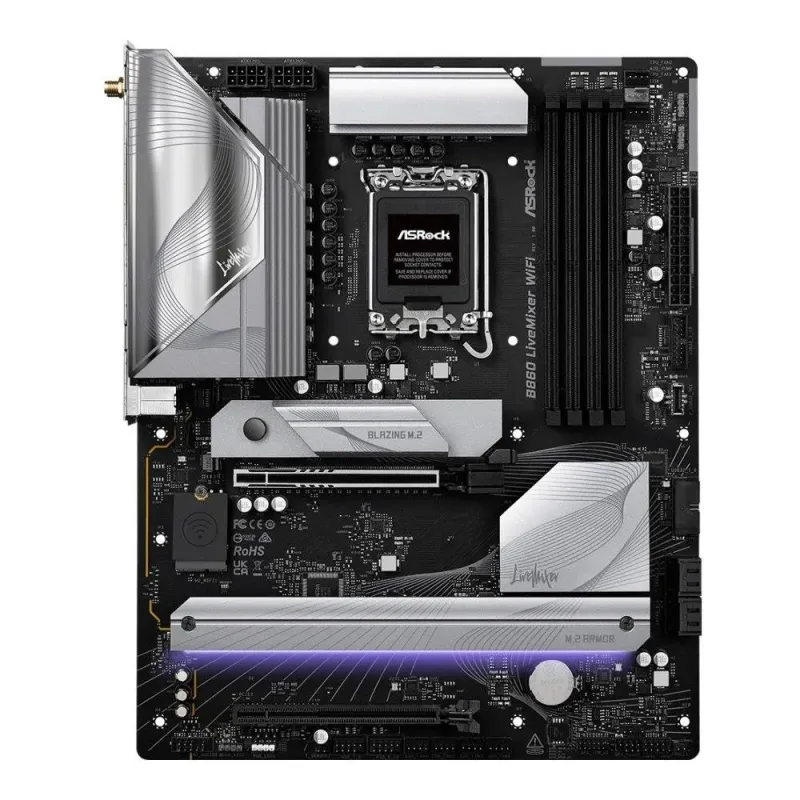

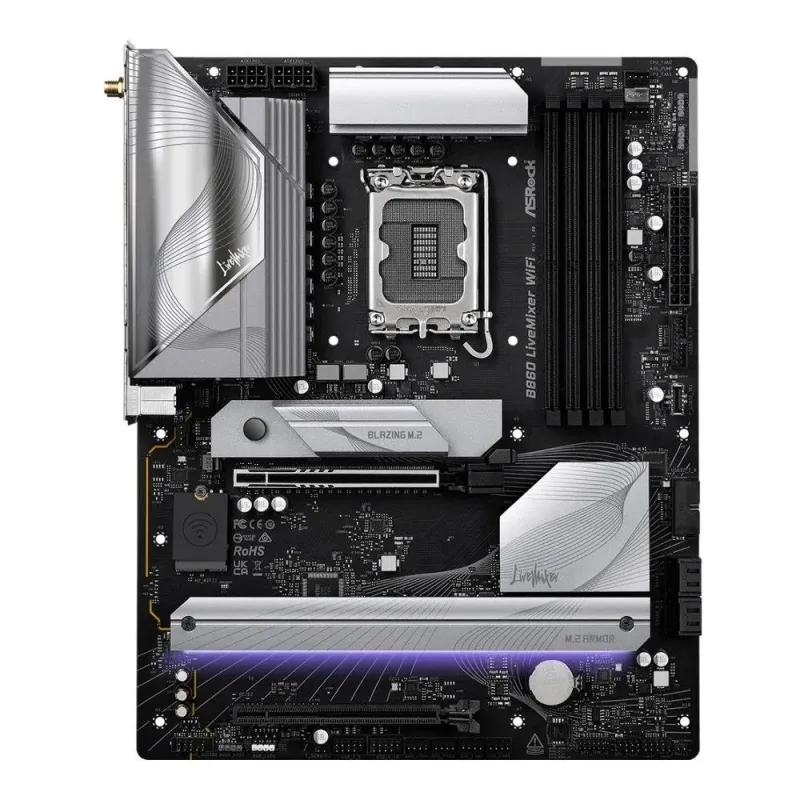

Płyta ASRock B860 LiveMixer WiFi

Opis

Gniazdo procesora

Socket 1851

Format płyty

ATX

Bios

256Mb AMI UEFI Legal BIOS with GUI support

Zawiera baterię / akumulator

Tak

Wyposażenie dodatkowe

1x Standoff for M.2 Socket
1x User Manual, 2x SATA Data Cables, 4x Screws for M.2 Sockets

Wymiary [S x W] (mm)

305 x 244

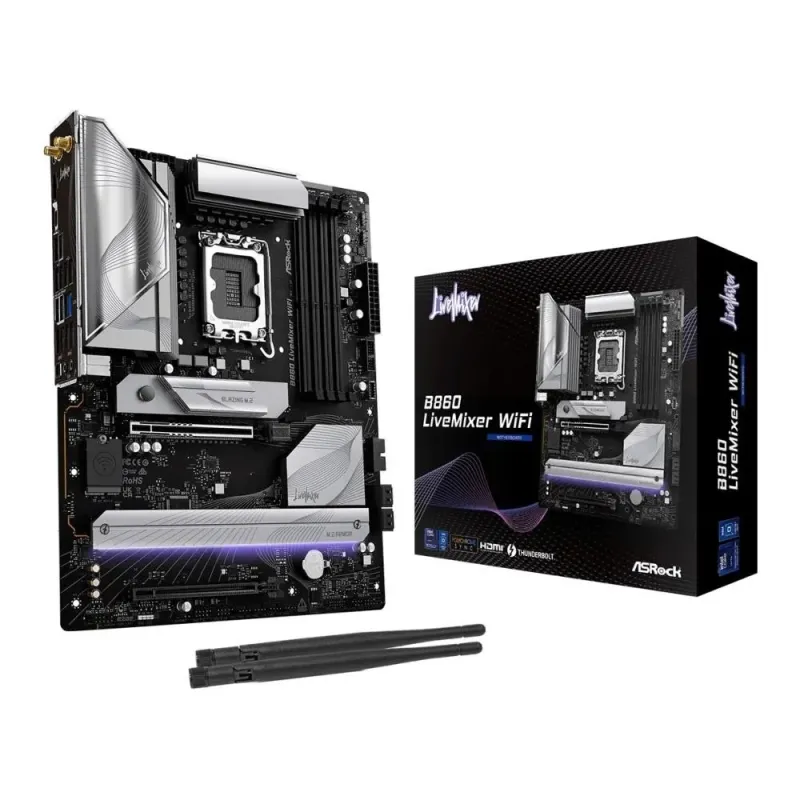

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.3

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 2,5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/axe

Chipset płyty głównej

Intel® B860

Wbudowana karta graficzna

Intel® Xe LPG Graphics Architecture

Obsługiwane typy procesorów

Intel Core Ultra Processors (series 2)

Standard pamięci

DDR5-8666+ (OC)

Uwagi do karty graficznej

- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max.
- 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to
8K 60Hz / 5K 120Hz
Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported
Only the CPU's embedded graphics can be displayed through Thunderbolt™ port
Supports two 4K displays or one 8K display
only with processors which are GPU integrated
resolution up to 4K 120Hz

Uwagi do procesora

- Integrated NPU for dedicated AI acceleration
- Supports Intel® Adaptive Boost Technology (ABT)
- Supports Intel® Hybrid Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel® Turbo Boost Max 3.0 Technology

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

- 1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively
- 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively
- 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively
- 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Nativel
- Supports Clocked Unbuffered DIMM (CUDIMM)
- Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)
- Supports Intel® Extreme Memory Profile (XMP) 3.0x

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10,5 + 3x M.2

Uwagi do kontrolera SATA

(64 Gb/s) mode
(128 Gb/s) mode
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4
- 4 x SATA3 6.0 Gb/s Connectors
CPU:
Chipset:
PCIe Gen4x4 (64 Gb/s) mode
Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks

Gniazda karty graficznej

HDMI
Thunderbolt™ 4

Zintegrowana karta dźwiękowa

Realtek ALC1220 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękowej

2x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Uwagi do karty dźwiękowej

- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio

Złącza PCI Express x16

2

Uwagi do złącz PCI

- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
- 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and
CPU:
Chipset:
Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Supports NVMe SSD as boot disks

Uwagi do karty sieciowej

- Optimized Default Setting for Game, Browser, and Streaming Modes
- Smart Auto Adjust Bandwidth Control
- Supports Dragon 2.5G LAN Software
- User Customized Priority Control
- Visual Network Usage Statistics
- Visual User Friendly UI

Maksymalna ilość portów USB 2.0

10

Maksymalna ilość portów USB 3.x

11

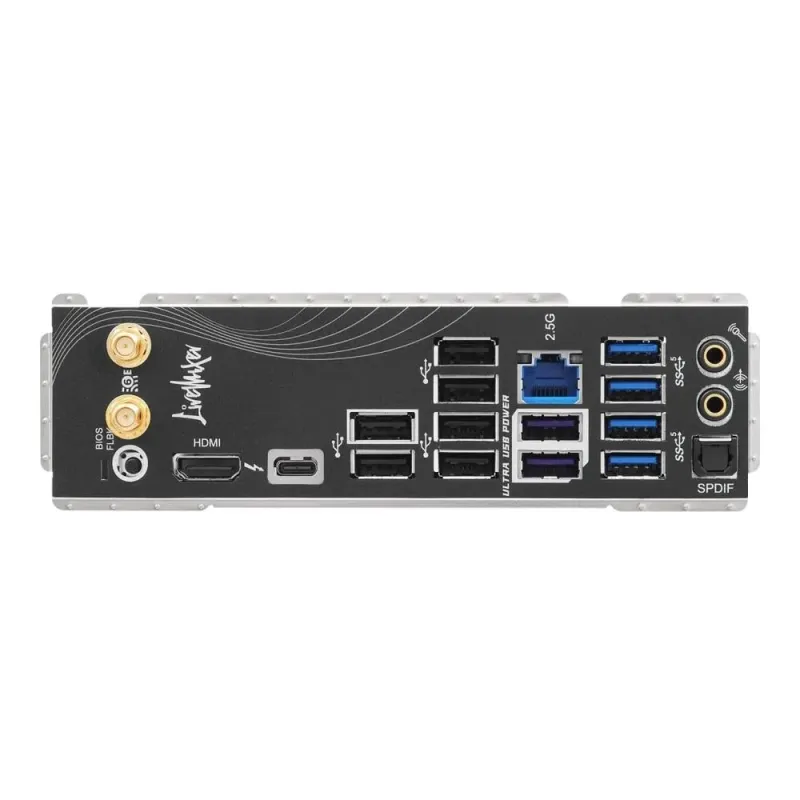

Porty USB na panelu tylnym

6x USB 2.0 + 6x USB 3.0 + 1x Thunderbolt 4

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.0 Type-C (1 port)

Port PS/2

Brak

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Inne porty i gniazda

2x Antenna Ports
2x CPU Fan connector(s)
3x Addressable LED Headers
5x 4-pin Chassis Fan connectors
AIO Pump Fan Connector
BIOS FlashBack button
Power LED and Speaker Header
SPI TPM header (14-1pin)
Thermal Sensor connectors

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin)

Ilość złącz pamięci DDR5

4

Maksymalna ilość portów USB 4.0

1

Uwagi do WiFi / BT

- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- 802.11axe Wi-Fi 6E Module
- Supports Dual-Band 2x2 with extended 6GHz band support
- Supports MU-MIMO
