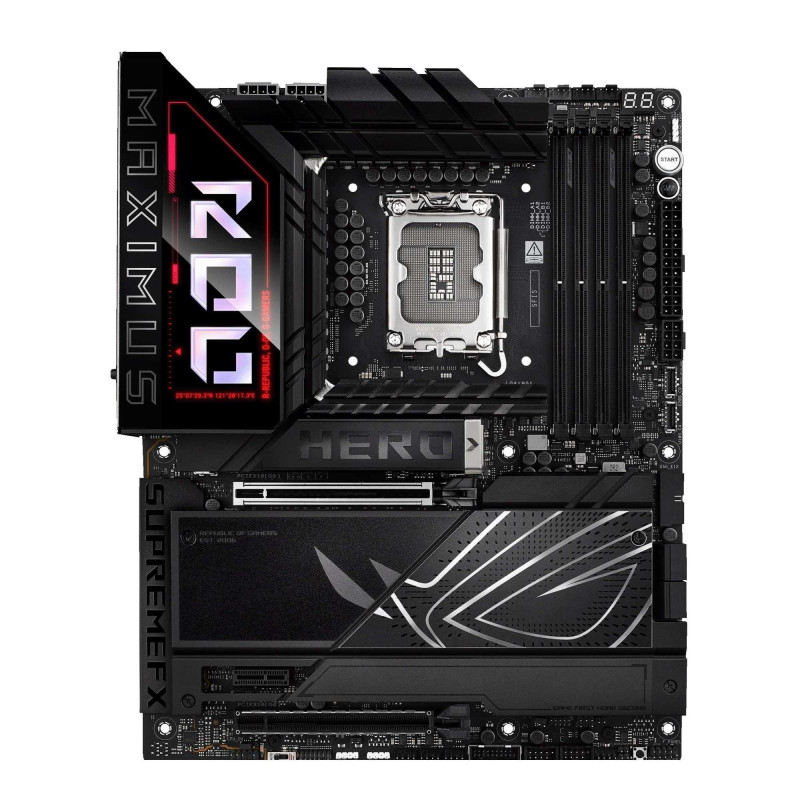

Płyta asus rog maximus z890 hero /z890/ddr5/sata3/m.2/usb4/wifi/bt/pcie5.0/s.1851/atx

Opis

Okres rękojmi w miesiącach

36

Informacje dodatkowe

Operating System: Windows 11 (22H2 & later)

Strona o towarze

https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z890-hero/

Kod producenta

ROG MAXIMUS Z890 HERO

Cechy

Z890 HERO;ATX

Wyposażenie dodatkowe

1x ARGB RGB extension cable
1x ASUS WiFi Q-Antenna
1x DDR5 fan holder
1x Q-connector
1x Thermal pad for M.2 22110
4x SATA 6Gb/s cables

Chipset płyty głównej

Intel® Z890

Maksymalna wielkość pamięci

192 GB

Format płyty

ATX

Tryb pracy pamięci RAM

Dual Channel

Gniazda karty graficznej

2x Thunderbolt™ 4 (USB Type-C®)
HDMI

Gniazda karty dźwiękowej

2x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Złącza PCI Express x16

2

Ilość złącz pamięci DDR5

4

Port PS/2

Brak

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Maksymalna ilość portów USB 2.0

4

Inne porty i gniazda

3x Addressable Gen 2 header
4-pin AIO Pump header
4-pin CPU Fan header
4-pin CPU OPT Fan header
4x 4-pin Chassis Fan headers
10-1 pin System Panel header
Alteration PCIe mode switch
BIOS FlashBack button
Clear CMOS button(s)
Thermal Sensor header
W_PUMP+ connector
Wi-Fi module with an antenna connector

Uwagi do karty sieciowej

ASUS LANGuard

Uwagi do karty dźwiękowej

ESS ES9219 QUAD DAC
High quality 120 dB SNR stereo playback output and 110 dB SNR recording in
Impedance sense for front and rear headphone outputs
Premium audio capacitors
Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
Supports up to 32-Bit/384 kHz playback on front panel
SupremeFX Shielding Technology

Port LAN

1x 2,5 Gigabit LAN Intel®
1x 5 Gigabit LAN Realtek®

Uwagi do kontrolera SATA

- M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)
- M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® Core™ Ultra Processors(series 2):
Intel® Z890 Chipset:
SlimSAS slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a
When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only
transfer cable. The cable is purchased separately

Uwagi do WiFi / BT

2x2 Wi-Fi 7 (802.11be)
For Windows 10, only Wi-Fi 6 is supported
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Supports 2.4/5/6GHz frequency band
Wi-Fi features may vary depending on the operating system
functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E

Uwagi do złącz PCI

(https://www.asus.com/support/FAQ/1037507/)
- 1 x PCIe 4.0 x1 slot
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
Intel Core Ultra Processors (series 2):
Intel® Z890 Chipset:
Please check the PCIe bifurcation table on the support site
To ensure compatibility of the device installed, please refer to
When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only
https://www.asus.com/support/ for the list of supported peripherals

Maksymalna ilość portów USB 4.0

2

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetooth

Bluetooth V5.4

Uwagi do karty graficznej

Graphics specifications may vary between CPU types. Please refer to
In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time
In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2,
Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
VGA resolution support depends on processors' or graphic cards' resolution
by DisplayPort™ 2.1 with up to 77.4 Gbit/s
maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution
support please check DisplayPort 2.1 specs
www.intel.com for any updates.

Uwagi do procesora

Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
Refer to https://www.asus.com/support/download-center/ for CPU support list
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0

Złącza PCI Express x4

1

Uwagi do pamięci RAM

ASUS Enhanced Memory Profile III (AEMP III)
Supports DIMM Flex, Supports DIMM Fit, NitroPath DRAM Technology
Supports Intel® Extreme Memory Profile (XMP) memory module
Support up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM

Zintegrowana karta dźwiękowa

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Gniazdo procesora

Socket 1851

Obsługiwane typy procesorów

Intel Core Ultra Processors (series 2)

BIOS

256 Mb Flash ROM, UEFI AMI BIOS; WOL by PME

Standard pamięci

DDR5-8800+ (OC)

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s + 6x M.2

Maksymalna ilość portów USB 3.x

14

Porty USB na panelu tylnym

4x USB 3.0 + 5x USB 3.1 + 2x Thunderbolt 4 (USB Type-C)

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.1 Type-C (1 port)+ 1x USB 3.2 Type-C (1 port)

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)

Wymiary [S x W] (mm)

305 x 244

Opakowanie

BOX
