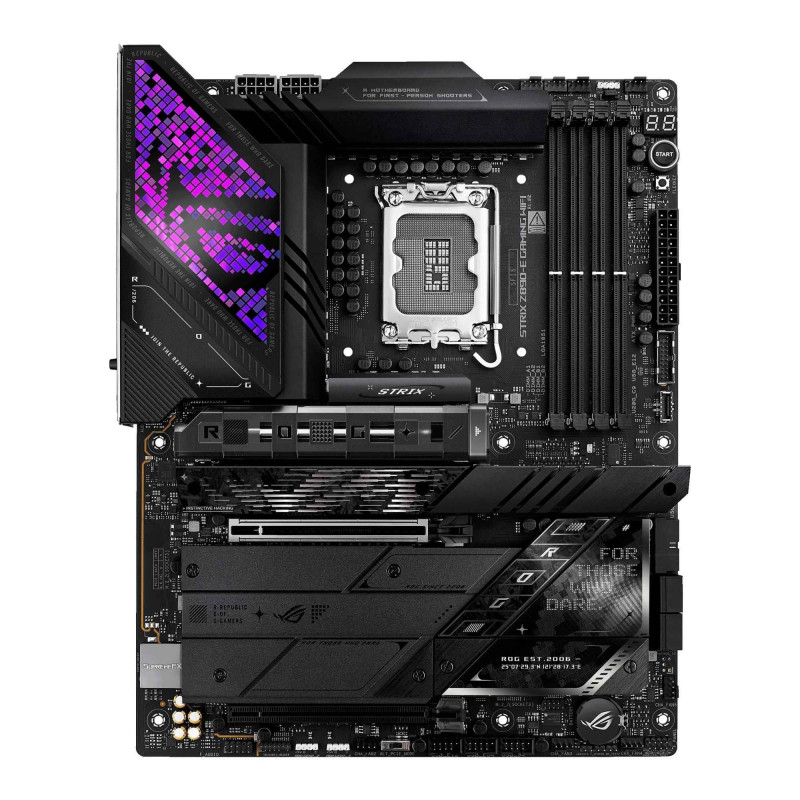

Płyta Asus ROG STRIX Z890-E GAMING WIFI

Opis

Informacje dodatkowe

Operating System: Windows® 11

Kod producenta

ROG STRIX Z890-E GAMING WIFI

Cechy

Z890-E GAMING WIFI;ATX

Wyposażenie dodatkowe

1x ASUS Wi-Fi moving antennas
1x Cable ties pack
1x M.2 Q-Latch package
1x ROG Strix stickers
1x ROG key chain
1x Thermal pad for M.2 22110
2x M.2 Q-Slides
2x SATA 6Gb/s cables
7x M.2 Rubbers

Chipset płyty głównej

Intel® Z890

Maksymalna wielkość pamięci

192 GB

Format płyty

ATX

Tryb pracy pamięci RAM

Dual Channel

Gniazda karty graficznej

2x Thunderbolt
DisplayPort
HDMI

Gniazda karty dźwiękowej

2x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Złącza PCI Express x16

1

Ilość złącz pamięci DDR5

4

Port PS/2

Brak

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Maksymalna ilość portów USB 2.0

6

Inne porty i gniazda

3x Addressable Gen 2 header
4-pin AIO Pump header
4-pin CPU Fan header
4-pin CPU OPT Fan header
5x 4-pin Chassis Fan header(s)
10-1 pin System Panel header
BIOS FlashBack button
CPU Over Voltage jumper
Clear CMOS button(s)
FlexKey button
Thermal Sensor header
Wi-Fi module with an antenna connector

Uwagi do karty sieciowej

ASUS LANGuard

Uwagi do karty dźwiękowej

Audio Shielding
High quality 120 dB SNR stereo playback output and 110 dB SNR recording
Impedance sense for front and rear headphone outputs
Premium audio capacitors
Savitech SV3H712 AMP
Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
Supports up to 32-Bit/384 kHz playback

Port LAN

1x 5 Gigabit LAN Realtek®

Uwagi do kontrolera SATA

- M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA mode
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10,
Intel® Core™ Ultra Processors(series 2):
Intel® Z890 Chipset:
M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3
SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
are occupied with SSD devices, PCIEX16(G5) will run x8 only

Uwagi do WiFi / BT

2x2 Wi-Fi 7 (802.11be)
For Windows 10, only Wi-Fi 6 is supported
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Supports 2.4/5/6GHz frequency band
Wi-Fi features may vary depending on the operating system
functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E

Uwagi do złącz PCI

(https://www.asus.com/support/FAQ/1037507/)
- 1x PCIe 4.0 x16 slot (supports x4 mode)
- 1x PCIe 5.0 x16 slots (supports x16 mode)
Intel Core Ultra Processors (series 2):
Intel® Z890 Chipset:
M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3
Please check PCIe bifurcation table in support site
are occupied with SSD devices, PCIEX16(G5) will run x8 only

Maksymalna ilość portów USB 4.0

2

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetooth

Bluetooth V5.4

Uwagi do karty graficznej

Graphics specifications may vary between CPU types. Please refer to
Supports max. 4K@60Hz as specified in HDMI 2.1
Supports max. 8K@60Hz as specified in DisplayPort 1.4
Supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total
bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please
check DisplayPort 2.1 specs
www.intel.com for any updates.

Uwagi do procesora

Refer to https://www.asus.com/support/download-center/ for CPU support list

Złącza PCI Express x4

1

Uwagi do pamięci RAM

ASUS Enhanced Memory Profile III (AEMP III)
Supports DIMM Flex, Supports DIMM Fit, NitroPath DRAM Technology
Supports Intel® Extreme Memory Profile (XMP) memory module
Support up to xxxx+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM

Zintegrowana karta dźwiękowa

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Gniazdo procesora

Socket 1851

Obsługiwane typy procesorów

Intel Core Ultra Processors (series 2)

BIOS

256 Mb Flash ROM, UEFI AMI BIOS; WOL by PME, PXE

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s + 7x M.2

Maksymalna ilość portów USB 3.x

17

Porty USB na panelu tylnym

3x USB 3.0 + 7x USB 3.1 + 2x USB 3.1 Type-C + 2x Thunerbolt 4 (USB Type-C)

Gniazda USB na płycie głównej

3x USB 2.0 (6 portów) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin)

Wymiary [S x W] (mm)

305 x 244

Opakowanie

BOX

Zawiera baterię / akumulator

Tak
