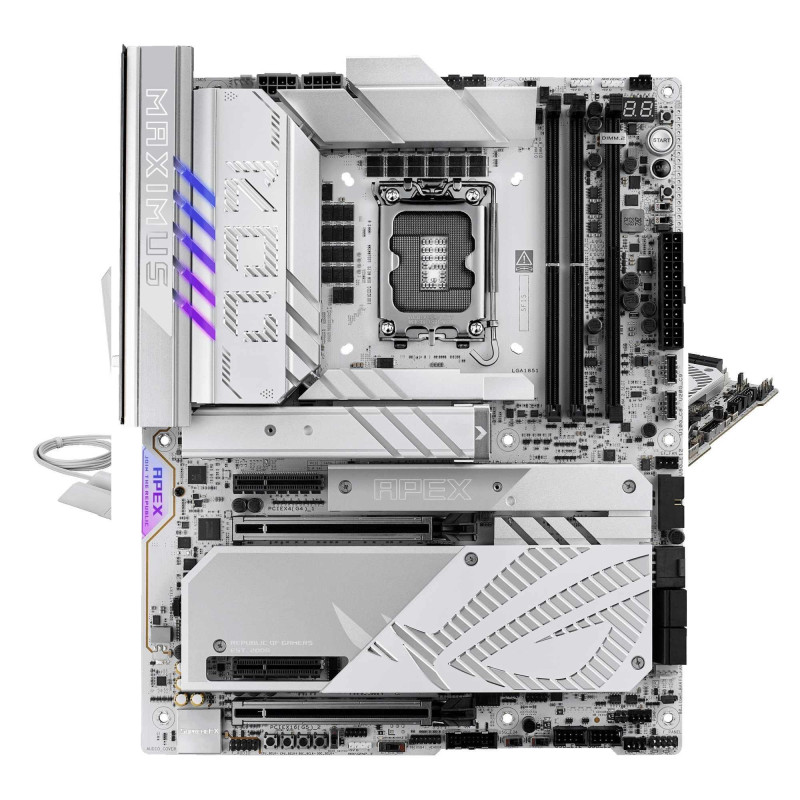

Płyta asus rog maximus z890 apex /z890/ddr5/sata3/m.2/usb4/wifi/bt/pcie5.0/s.1851/atx

Opis

Informacje dodatkowe

- Windows 10 64-bit (21H2 & later)
- Windows 11 (22H2 & later)
Operating System:

Kod producenta

ROG MAXIMUS Z890 APEX

Cechy

Z890 APEX;ATX

Wyposażenie dodatkowe

1x ASUS WiFi Q-Antenna
1x M.2 pad for ROG DIMM.2
1x ROG DIMM.2 with heatsink
1x ROG Memory Fan Kit
1x Thermal pad for M.2 22110
2x M.2 screw package for ROG DIMM.2

Chipset płyty głównej

Intel® Z890

Maksymalna wielkość pamięci

96 GB

Format płyty

ATX

Tryb pracy pamięci RAM

Dual Channel

Gniazda karty graficznej

2x Thunderbolt™ 4 (USB Type-C®)

Gniazda karty dźwiękowej

2x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Złącza PCI Express x16

2

Ilość złącz pamięci DDR5

2

Port PS/2

Port combo klawiatury/myszy PS/2

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Maksymalna ilość portów USB 2.0

4

Inne porty i gniazda

2x 4-pin Chassis Fan headers
2x 4-pin Full Speed Fan headers
3x Addressable Gen 2 header
4-pin AIO Pump header
4-pin CPU Fan header
4-pin CPU OPT Fan header
10-1 pin System Panel header
Alteration PCIe mode switch
BIOS FlashBack button
BIOS Switch button
Clear CMOS button(s)
Extra Flow Fan header
FlexKey button
Thermal Sensor header
W_PUMP+ header

Uwagi do karty sieciowej

ASUS LANGuard

Uwagi do karty dźwiękowej

Audio Cover
Gold-plated audio jacks
High quality 120 dB SNR stereo playback output and 110 dB SNR recording in
Impedance sense for front and rear headphone outputs
Premium audio capacitors
Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
Supports up to 32-Bit/384 kHz playback on front panel
SupremeFX Shielding Technology

Port LAN

1x 5 Gigabit LAN Realtek®

Uwagi do kontrolera SATA

(supports PCIe 4.0 x4 mode)
- DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110
- DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110
- M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1
Intel® Core™ Ultra Processors(series 2):
Intel® Z890 Chipset:
M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2
PCIEX16(G5)_2 will disabled
SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2
will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 &

Uwagi do WiFi / BT

2x2 Wi-Fi 7 (802.11be)
For Windows 10, only Wi-Fi 6 is supported
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Supports 2.4/5/6GHz frequency band
Wi-Fi features may vary depending on the operating system
functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E

Uwagi do złącz PCI

(https://www.asus.com/support/FAQ/1037507/)
- 2 x PCIe 4.0 x4 slots
- 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)
Intel Core Ultra Processors (series 2):
Intel® Z890 Chipset:
M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled,
PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4
Please check the PCIe bifurcation table on the support site
are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled

Maksymalna ilość portów USB 4.0

2

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetooth

Bluetooth V5.4

Uwagi do karty graficznej

DisplayPort 2.1 specs
Graphics specifications may vary between CPU types. Please refer to
Supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth
VGA resolution support depends on processors' or graphic cards' resolution
up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check
www.intel.com for any updates.

Uwagi do procesora

Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
Refer to https://www.asus.com/support/download-center/ for CPU support list
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0

Złącza PCI Express x4

2

Uwagi do pamięci RAM

ASUS Enhanced Memory Profile III (AEMP III)
Supports DIMM Flex, Supports DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
Support up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM

Zintegrowana karta dźwiękowa

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Gniazdo procesora

Socket 1851

Obsługiwane typy procesorów

Intel Core Ultra Processors (series 2)

BIOS

2x 256 Mb Flash ROM, UEFI AMI BIOS; WOL by PME

Standard pamięci

DDR5-8800+ (OC)

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s + 6x M.2

Maksymalna ilość portów USB 3.x

14

Porty USB na panelu tylnym

4x USB 3.0 + 4x USB 3.1 + 1x USB 3.2 Type-C + 2x Thunderbolt 4 (USB Type-C)

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.1 Type-C (1 port)+ 1x USB 3.2 Type-C (1 port)

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)

Wymiary [S x W] (mm)

305 x 244

Opakowanie

BOX
