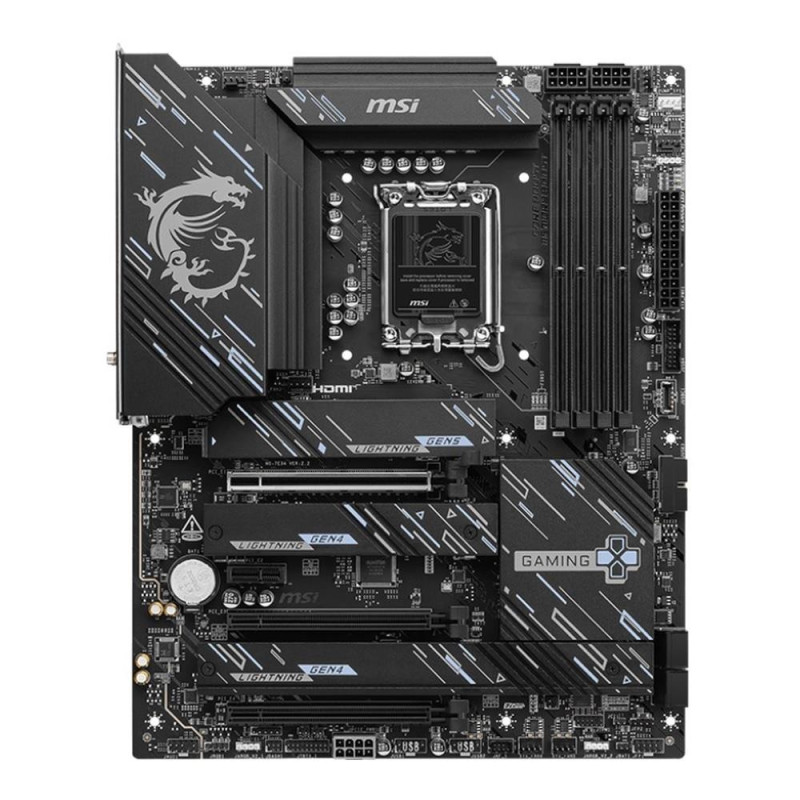

Płyta msi z890 gaming plus wifi /z890/ddr5/sata3/m.2/tb4/wifi/bt/pcie5.0/s.1851/atx

Opis

Informacje dodatkowe

Support for Windows 11 64-bit

Kod producenta

Z890 GAMING PLUS WIFI

Cechy

Z890 GAMING PLUS WIFI

Chipset płyty głównej

Intel® Z890

Maksymalna wielkość pamięci

256 GB

Format płyty

ATX

Tryb pracy pamięci RAM

Dual Channel

Gniazda karty graficznej

DisplayPort
HDMI
Thunderbolt™ 4

Gniazda karty dźwiękowej

3x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu

Złącza PCI Express x16

3

Ilość złącz pamięci DDR5

4

Port PS/2

Port combo klawiatury/myszy PS/2

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Maksymalna ilość portów USB 2.0

8

Inne porty i gniazda

2x Front Panel
3x Addressable RGB Gen2 LED connector
5x System Fan
CPU Fan
Combo Fan (Pump_Sys Fan)
Flash BIOS Button
Gniazdo modułu TPM
RGB LED connector
Thunderbolt 5 card connector(JTBT5, support RTD3)
Tuning Controller Connector
Złącze czujnika otwarcia obudowy

Uwagi do karty dźwiękowej

Supports up to 32-Bit/384 kHz playback on front panel

Port LAN

1x 5 Gigabit LAN Intel® Killer™ E5000

Uwagi do kontrolera SATA

- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 ,
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 ,
- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,
supports 2280/2260 devices
supports 2280/2260/2242 devices
supports 22110/2280/2260 devices

Uwagi do WiFi / BT

6GHz band support may depend on every country’s regulations and Wi-Fi 7
Intel® Killer™ BE1750x Wi-Fi 7
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4, MLO, 4KQAM
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps
The Bluetooth version may be updated, please refer to the Wi-Fi chipset
The Wireless module is pre-installed in the M.2 (Key-E) slot
Windows 11 plan
vendor's website for details. Bluetooth 5.4 support schedule depends on
will be ready in Windows 11 SV3

Uwagi do złącz PCI

- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetooth

Bluetooth V5.4

Uwagi do karty graficznej

Graphics specifications may vary depending on the CPU installed
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Support HDMI 2.1, maximum resolution of 4K 60Hz
Thunderbolt 4 ports, supporting DisplayPort 1.4 over USB Type-C, with a
maximum resolution of 4K 120Hz / 8K 60Hz

Uwagi do pamięci RAM

- 1DPC 1R Max speed up to 9200+ MT/s
- 1DPC 2R Max speed up to 7200+ MT/s
- 2DPC 1R Max speed up to 4800+ MT/s
- 2DPC 2R Max speed up to 4800+ MT/s
Max. overclocking frequency:
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Supports CUDIMM
Supports Dual-Controller Dual-Channel mode
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports non-ECC, un-buffered memory

Zintegrowana karta dźwiękowa

Realtek® ALC897 7.1-Channel High Definition Audio

Gniazdo procesora

Socket 1851

Obsługiwane typy procesorów

Intel Core Ultra Processors (series 2)

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 4x M.2 - RAID 0, 1, 5, 10

Maksymalna ilość portów USB 3.x

9

Porty USB na panelu tylnym

4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)

Wymiary [S x W] (mm)

243,84 x 304,8

Opakowanie

BOX

Złącza PCI Express x1

1
