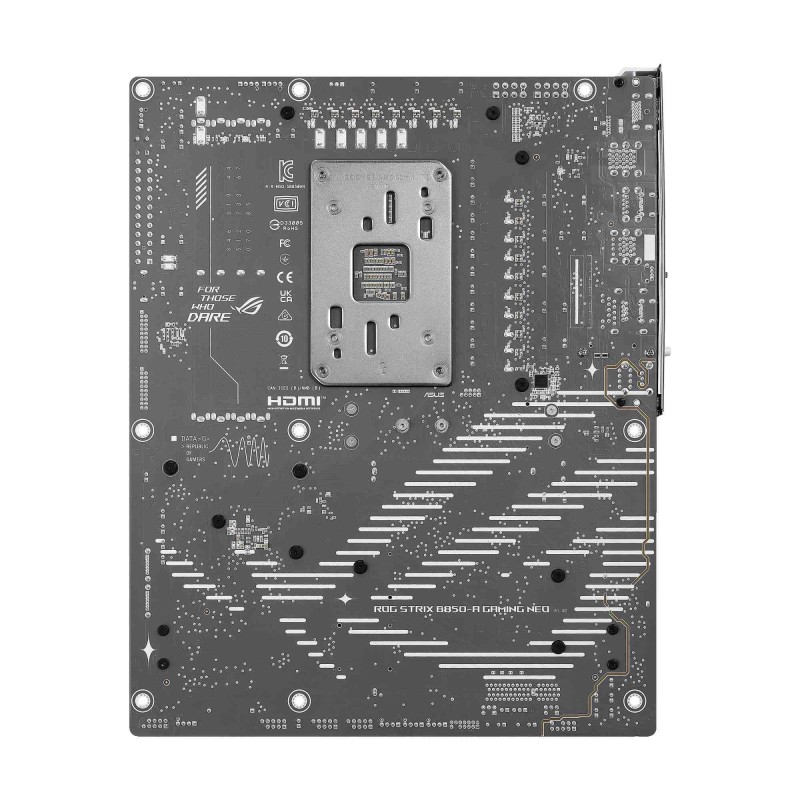

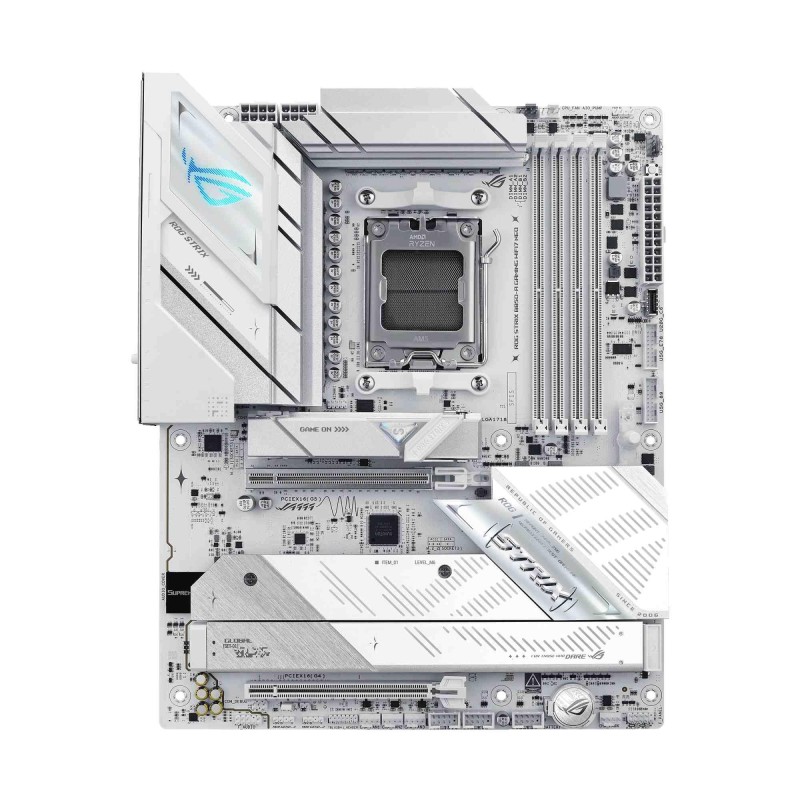

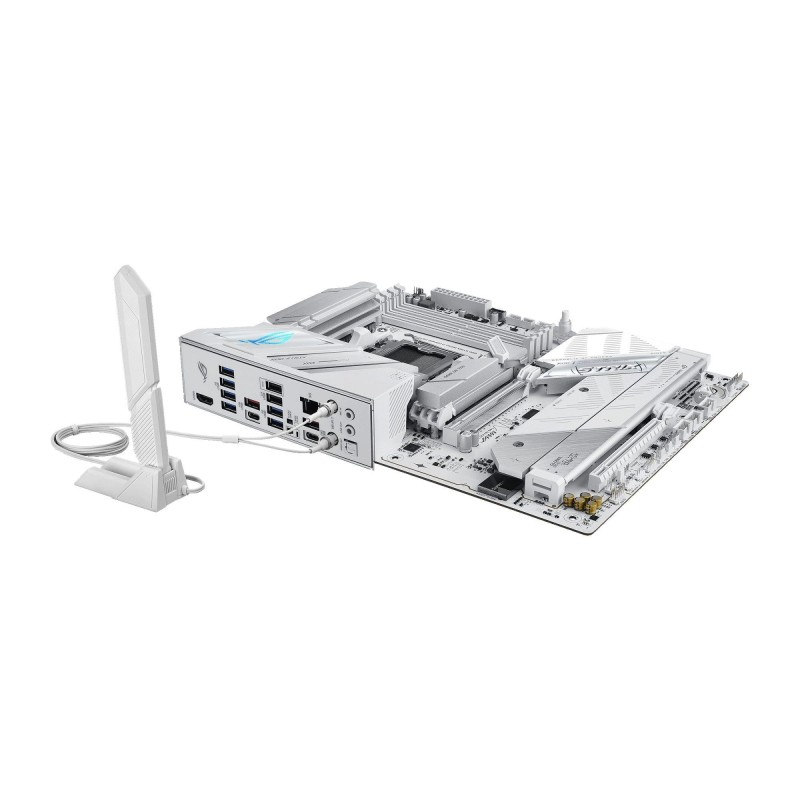

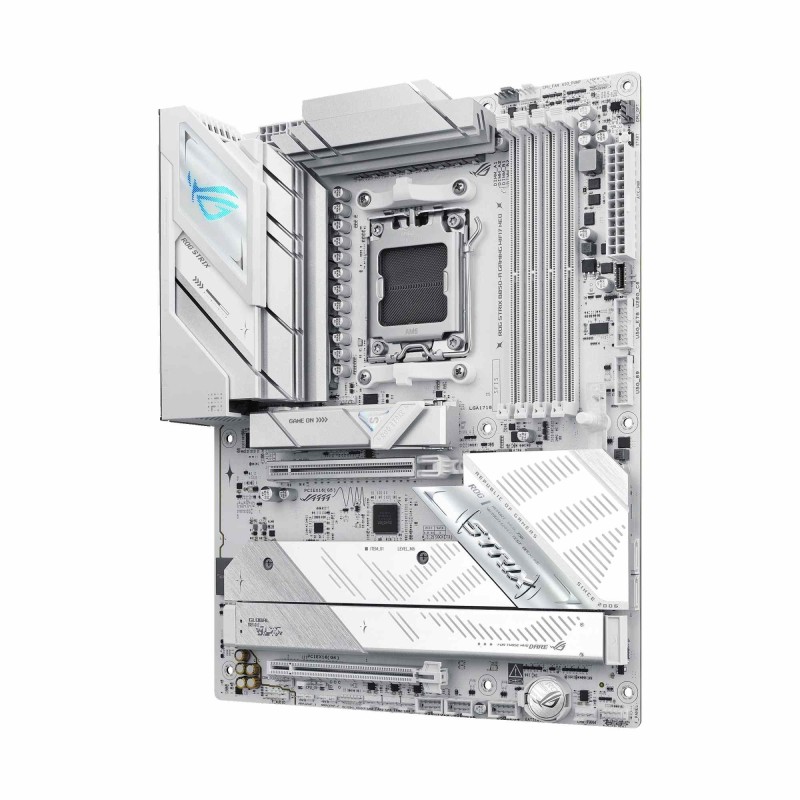

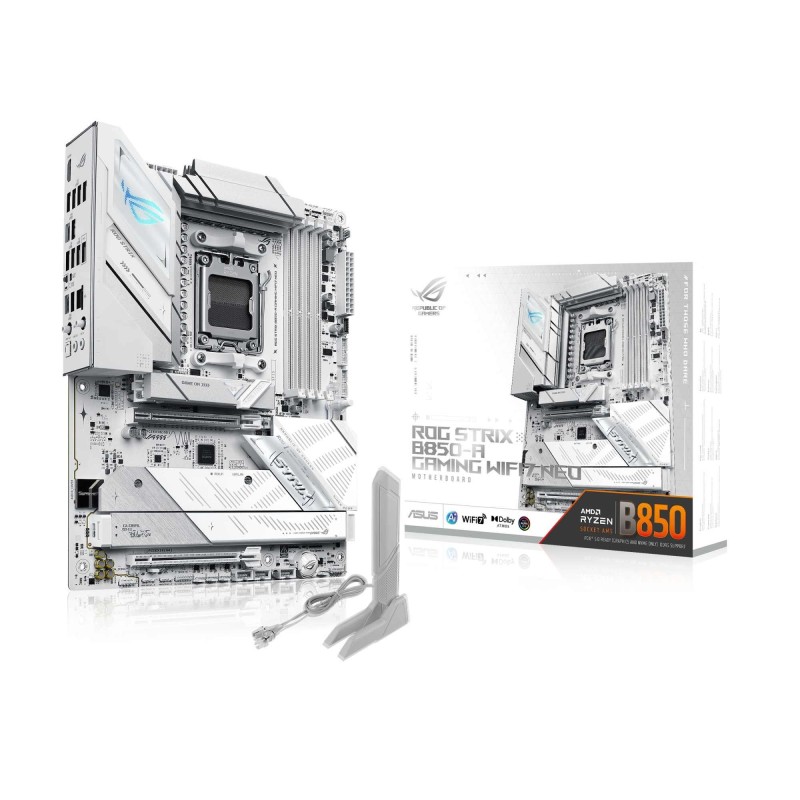

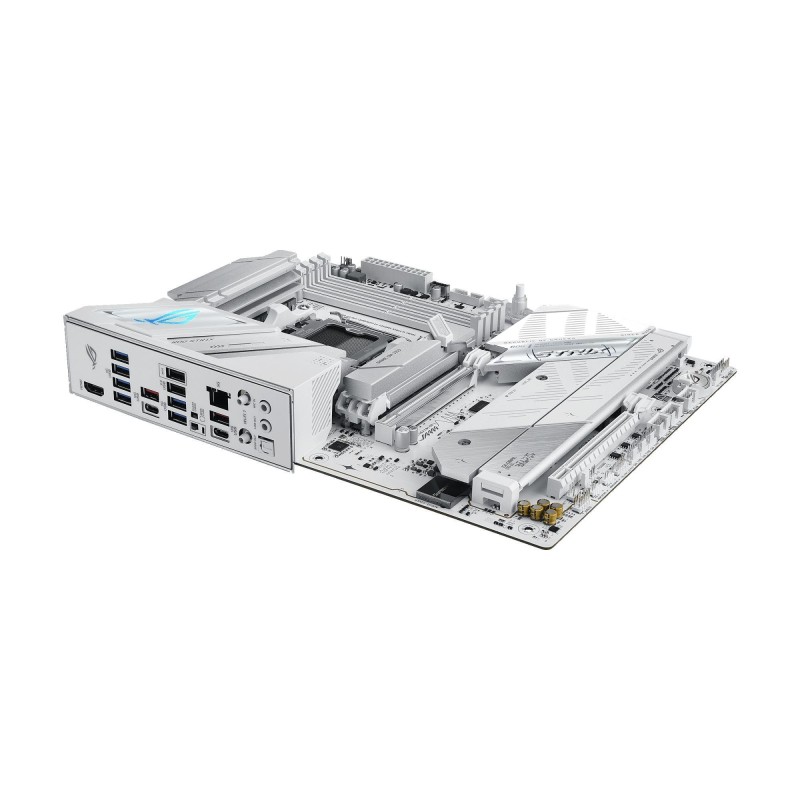

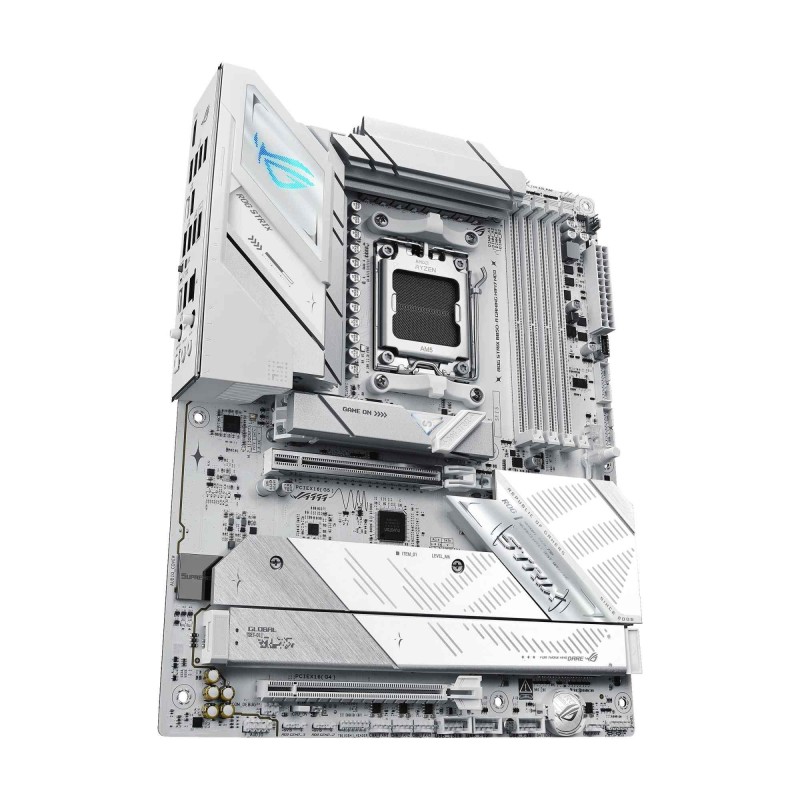

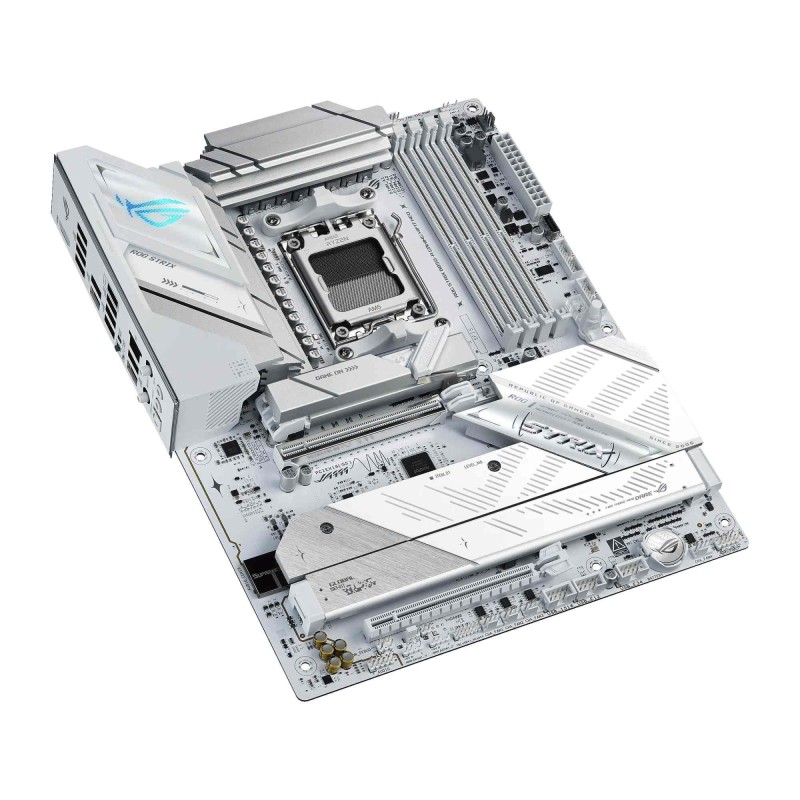

Płyta Asus ROG STRIX B850-A GAMING WIFI7 NEO /AMD

Socket AM5

ATX

64MB (512Mb) Flash ROM, UEFI AMI BIOS

Tak

1 x ASUS WiFi Q-Antenna
1 x M.2 Q-Latch package
1 x M.2 Q-Slide package
1 x Quick start guide
1 x ROG Strix stickers
1 x ROG key chain
2 x SATA 6Gb/s cables
4 x M.2 rubbers

305 x 244

BOX

Bluetooth V5.4

256 GB

1x 5 Gigabit LAN Realtek®

IEEE 802.11a/b/g/n/ac/ax/be

AMD B850

Brak lub AMD Radeon™ Graphics (zależy od procesora)

AMD Ryzen™ (AM5)

DDR5-9000+ (OC)

Available only on processors featuring integrated graphics. Graphics
Supports 4K@60Hz as specified in HDMI 2.1
specifications
specifications may vary between CPU types. Please refer to AMD CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Dual Channel

ASUS Enhanced Memory Profile (AEMP)
ECC and Non-ECC Un-buffered DIMM
Supports AMD EXTended Profiles for Overclocking (EXPO™)

Chipset+CPU: 2x SATA III 6Gb/s + 4x M.2

- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x2 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
- M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10
2 x SATA 6Gb/s ports
AMD B850 Chipset:
AMD RAIDXpert2 Technology:
AMD Ryzen™ 8500 & 8300 Series Desktop Processors:
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
The M.2_3 slot shares bandwidth with the PCIEX16(G4) slot. When either
enter the BIOS to adjust the default settings as required.
mode. When both slots are occupied, each runs at PCIe 4.0x2 mode. You can
the PCIEX16(G4) or M.2_3 slot is occupied, the slot runs at PCIe 4.0 x4

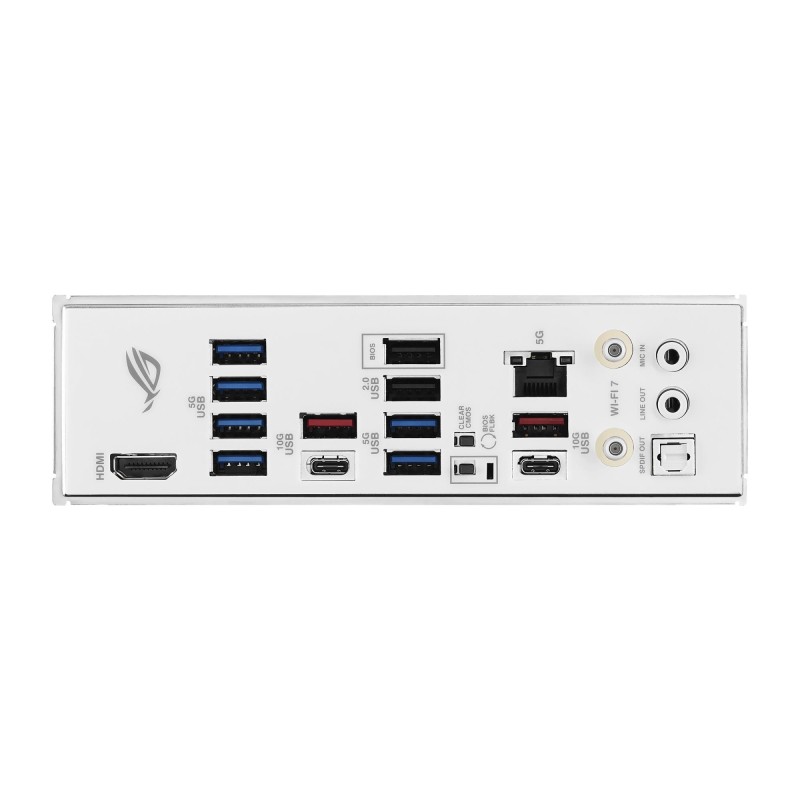

HDMI

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

2x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

- Audio cover
- Dedicated audio PCB layers
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording
- Impedance sense for front and rear headphone outputs
- Premium audio capacitors
- Rear optical S/PDIF out port
- Savitech SV3H712 AMP
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- Supports up to 32-Bit/384 kHz playback on front panel
- SupremeFX Shielding Technology
Audio Features:
input

2

- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
- 1 x PCIe 5.0 x16 slots (supports x4 mode)
- 1 x PCIe 5.0 x16 slots (supports x8 mode)
AMD B850 Chipset:
AMD Ryzen™ 8500 & 8300 Series Desktop Processors:
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
Specifications vary by CPU types

ASUS LANGuard

8

15

2x USB 2.0 + 6x USB 3.0 + 2x USB 3.1 + 2x USB 3.1 Type-C

3x USB 2.0 (6 portów) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)

Brak

Brak

Brak

3x Addressable RGB Gen 2 headers
4-pin AIO Pump header
4-pin CPU Fan header
4-pin CPU OPT Fan header
4x 4-pin Chassis Fan headers
10-1 pin Front Panel System header
CPU Over Voltage jumper
Front Panel Audio header (F_AUDIO)
Start button
Thunderbolt™ (USB4®) header

ATX (24-pin) + 2x ATX12V (8-pin)

4

21H2/22H2/23H2 only supports Wi-Fi 6E
For Windows 10, please note that no driver is available,
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth
The Bluetooth® version may vary, please refer to the Wi-Fi module
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between
Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11
Wi-Fi features may vary depending on the operating system. For Windows 11,
countries
manufacturer’s website for the latest specifications
please refer to the Wi-Fi chipset vendor’s website for details.
