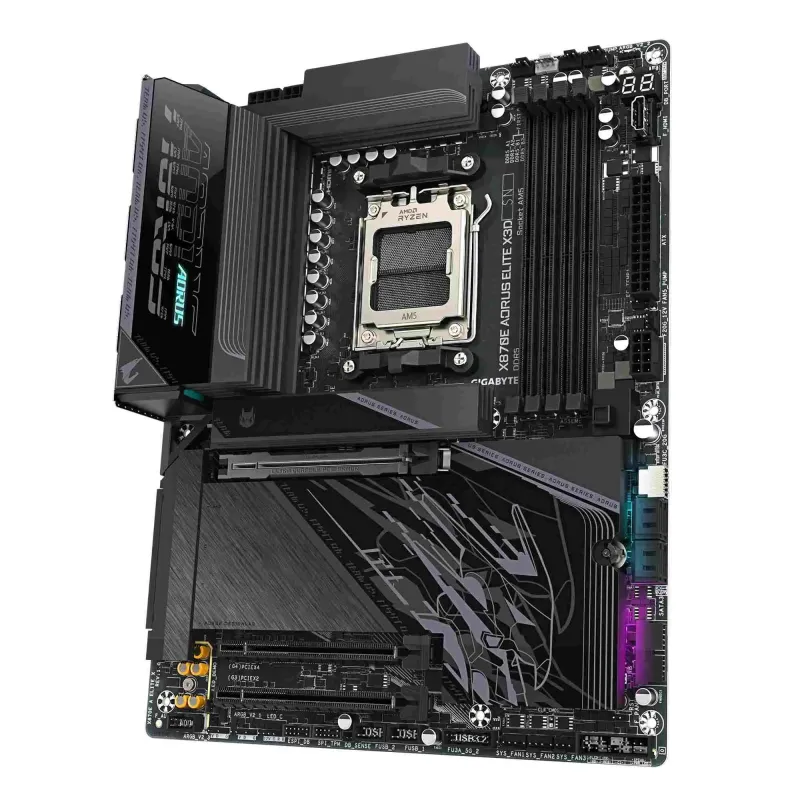

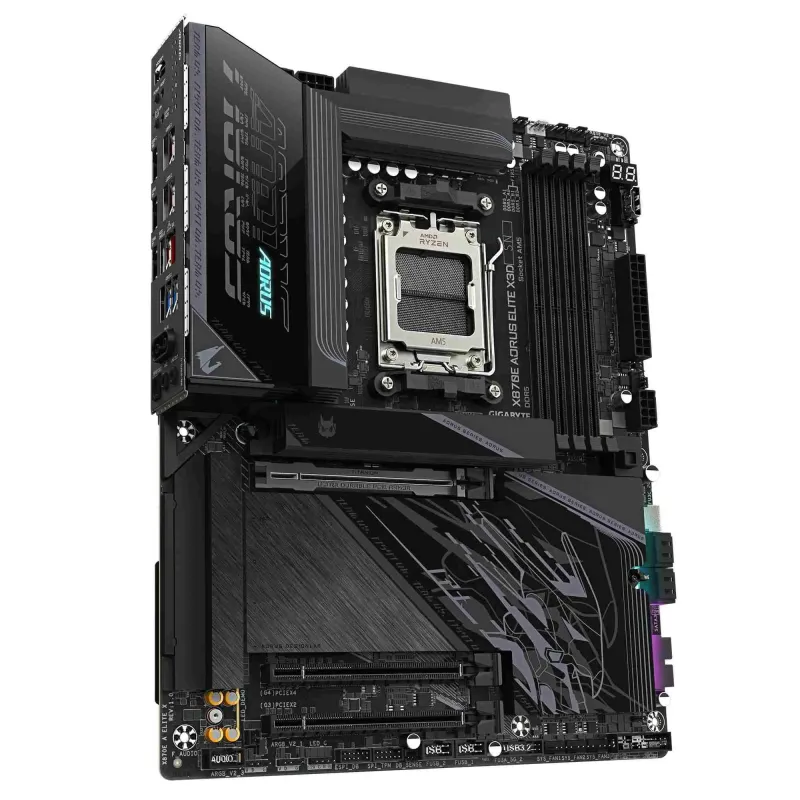

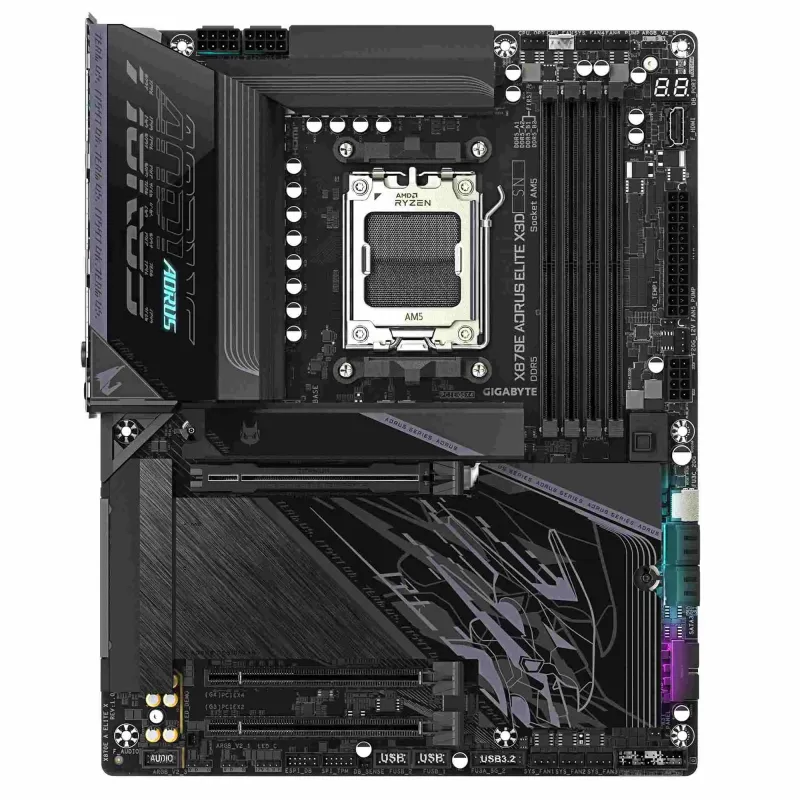

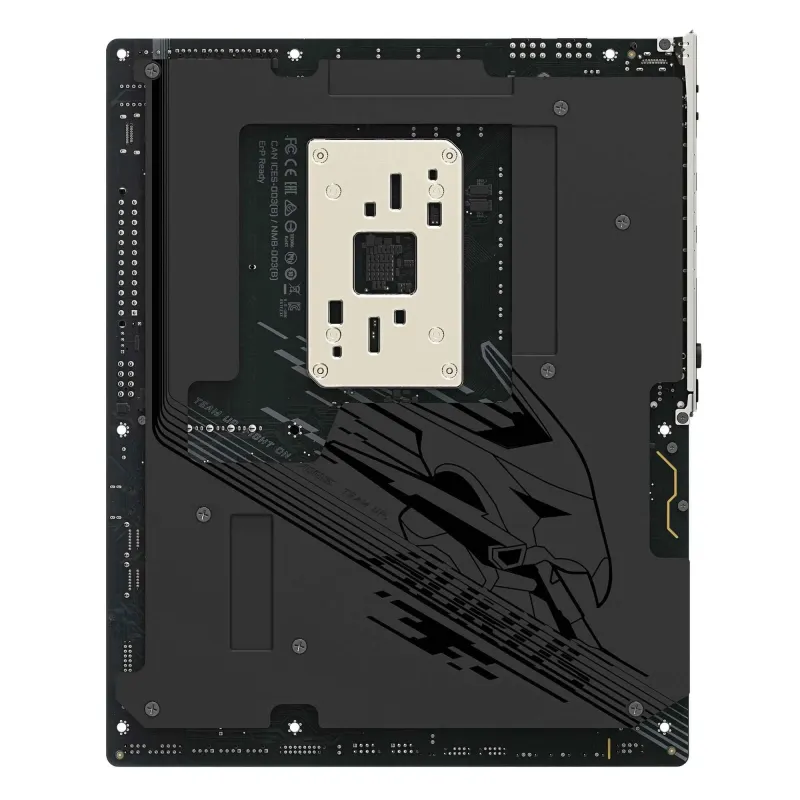

Płyta Gigabyte X870E A ELITE X /AMD

Opis

Gniazdo procesora

Socket AM5

Format płyty

ATX

Bios

512 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Zawiera baterię / akumulator

Tak

Wymiary [S x W] (mm)

305 x 244

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 5 Gigabit LAN Realtek®

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

AMD X870E

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™

Standard pamięci

DDR5-4800
DDR5-5200
DDR5-5600 (OC)
DDR5-6000 (OC)
DDR5-6200 (OC)
DDR5-6400 (OC)
DDR5-6600 (OC)
DDR5-6800 (OC)
DDR5-7000 (OC)
DDR5-7200 (OC)
DDR5-7600 (OC)
DDR5-7800 (OC)
DDR5-8000 (OC)
DDR5-8200 (OC)
DDR5-8400 (OC)
DDR5-8600 (OC)
DDR5-8800 (OC)
DDR5-9000+ (OC)

Uwagi do karty graficznej

- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
- 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video
Graphics specifications may vary depending on CPU support
Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia
Integrated Graphics Processor with AMD Radeon Graphics support:
Support for DisplayPort 1.4 version and HDR
Support for HDMI 1.4
Support for HDMI 2.1 version, HDCP 2.3, and HDR
Support native HDMI 2.1 TMDS compatible ports
USB4 Controller:
outputs and a maximum resolution of 3840x2160@240 Hz

Uwagi do procesora

Support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

Extreme Memory Profile (XMP) memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2

Uwagi do kontrolera SATA

- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3,
2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting
4 x SATA 6Gb/s connectors
M key, type 22110/2280 SSDs:
M key, type 25110/22110/2580/2280 SSDs:
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
RAID 5 is only available on AMD Ryzen™ 9000 Series Processors
Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller
USB4 port supported by the ASMedia USB4® controller operates at up to x2
When a device is installed in theM2B_CPU connector, both the M2B_CPU
When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the
bandwidth, and the M2B_CPU connector becomes unavailable
connector and the USB4 port supported by the ASMedia USB4® controller
operate at up to x2 bandwidth

Gniazda karty graficznej

2x HDMI
2x USB4 Type-C

Zintegrowana karta dźwiękowa

Realtek ALC1220 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękowej

2x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Uwagi do karty dźwiękowej

To configure 7.1-channel audio, access the audio software for audio setting
You can change the functionality of an audio jack using the audio software

Złącza PCI Express x16

3

Uwagi do złącz PCI

(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
1x PCI Express x16 slot (PCIEX16), integrated in the CPU:
Chipset:
one graphics card is to be installed, be sure to install it in the PCIEX16

Uwagi do karty sieciowej

5 Gbps/2.5 Gbps/1 Gbps/100 Mbps

Maksymalna ilość portów USB 2.0

4

Maksymalna ilość portów USB 3.x

14

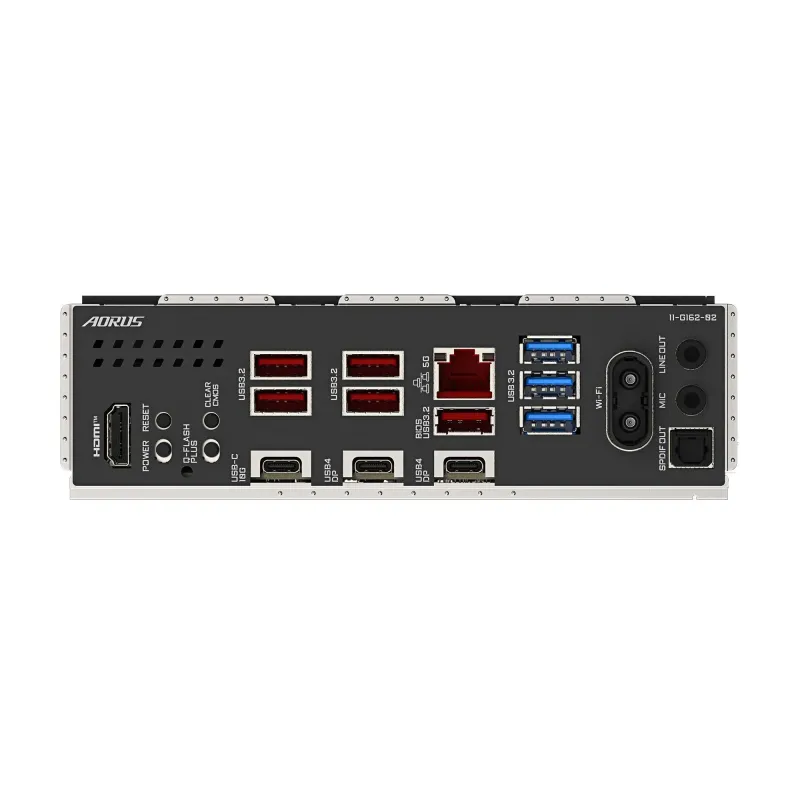

Porty USB na panelu tylnym

3x USB 3.0 + 5x USB 3.1 + 1x USB 3.1 Type-C + 2x USB4

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)

Port PS/2

Brak

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Inne porty i gniazda

2x SMA antenna connectors (2T2R)
2x system fan/water cooling pump headers
2x temperature sensor headers
3x Addressable RGB Gen2 LED strip headers
4x system fan headers
CPU fan/water cooling pump header
CPU fan header
Clear CMOS jumper
Front panel header
Gniazdo modułu TPM
Power-on button(s)
Q-Flash Plus button
RGB LED strip header
Reset button
Reset jumper

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin) + PCIe

Ilość złącz pamięci DDR5

4

Maksymalna ilość portów USB 4.0

2

Uwagi do WiFi / BT

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency
- Support for 11be 320MHz wireless standard
Actual data rate may vary depending on environment and equipment
Bluetooth version may change with updates
Qualcomm Wi-Fi 7 QCNCM865
Wi-Fi 7 channels on 6 GHz band availability depends on individual
Wi-Fi 7 features require Windows 11 SV3 to function properly;no W10 support
country's regulations
