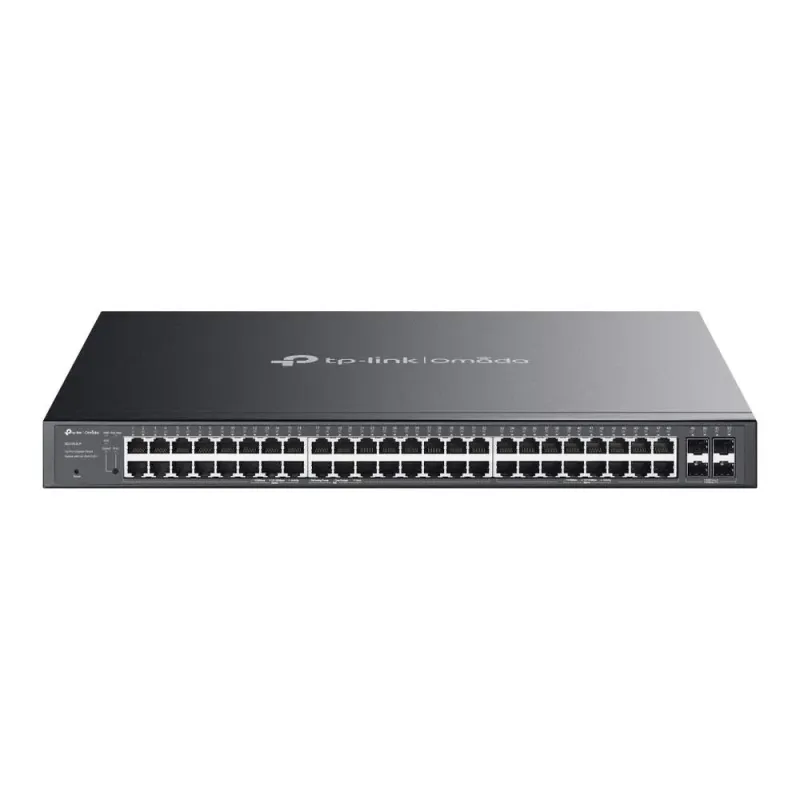

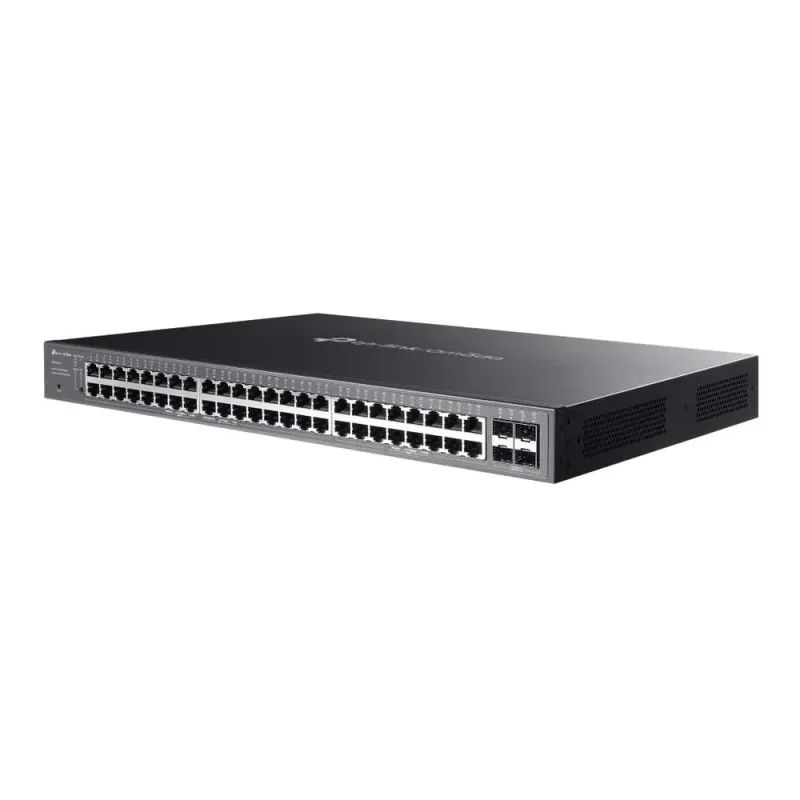

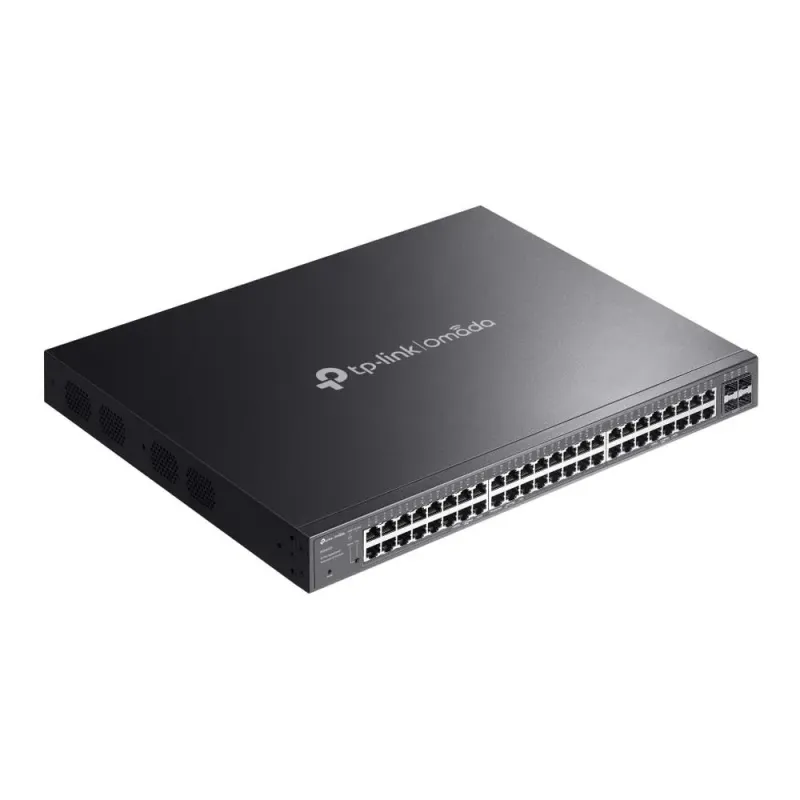

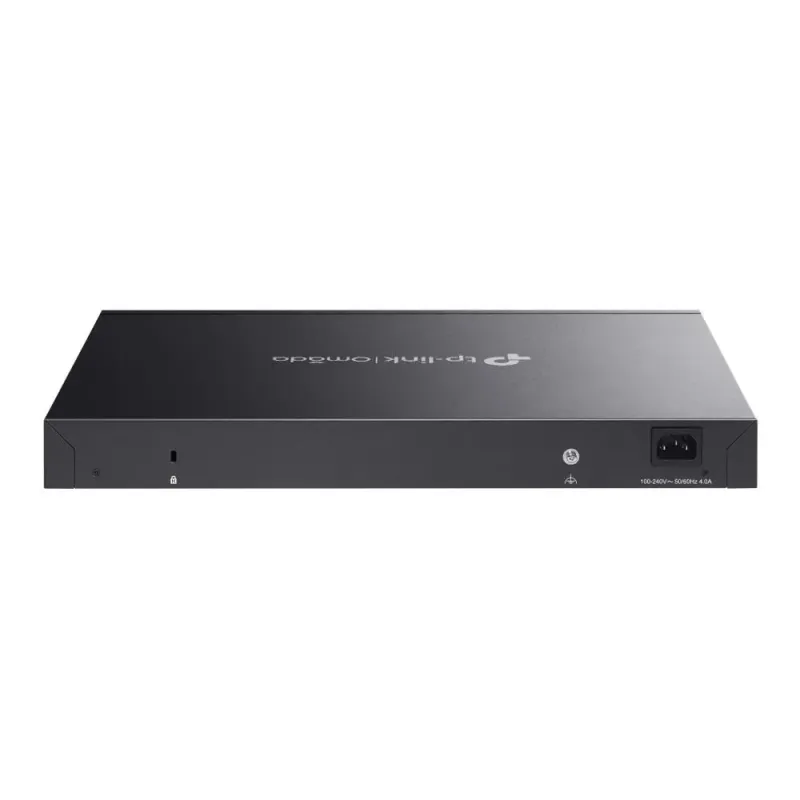

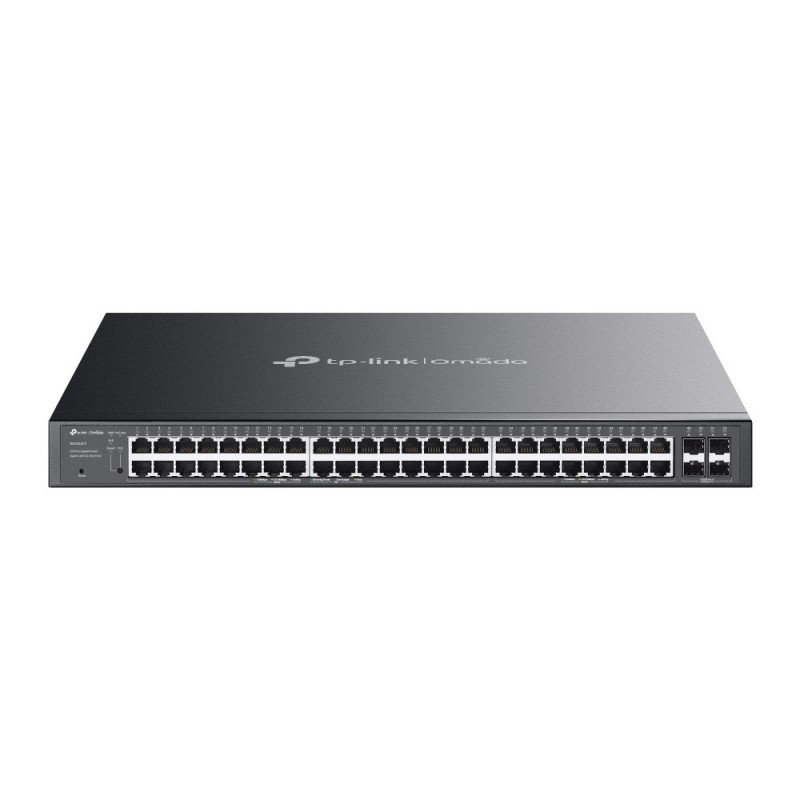

Switch zarządzalny TP-Link SG2452LP Omada 52x10/100/1000Mb/s PoE
- Rodzaj urządzenia przewodowego: Switch zarządzalny
- Architektura sieci LAN: Gigabit Ethernet
- Ilość portów: 52
- Porty wej/wyj: 48x 10M/100M/1G RJ-45
- Porty wej/wyj: 4x 1G SFP
- Ilość portów RJ-45 10/100MbE: 0 szt.
- Ilość portów RJ-45 1GbE: 48 szt.
- Ilość portów SFP 1GbE: 4 szt.
- Ilość portów COMBO / SFP 1GbE: 0 szt.
- Ilość portów RJ-45 10GbE: 0 szt.
- Port PoE: Tak
- Ilość portów PoE: 32
- Obsługiwane protokoły / Zgodność z normami: IEEE 802.3i 10 Base-T Ethernet, Topologia gwiazdy do 100m
- Obsługiwane protokoły / Zgodność z normami: IEEE 802.3u 100 Base-T (RJ45)
- Obsługiwane protokoły / Zgodność z normami: IEEE 802.3ab 1000 Base-T (RJ45)
- Obsługiwane protokoły / Zgodność z normami: IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- Obsługiwane protokoły / Zgodność z normami: IEEE 802.3x Flow control
- Obsługiwane protokoły / Zgodność z normami: IEEE 802.1D STP (Spanning Tree Protocol)
- Obsługiwane protokoły / Zgodność z normami: IEEE 802.1S Multiple Spanning Tree Protocol (MSTP)
- Obsługiwane protokoły / Zgodność z normami: IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
- Obsługiwane protokoły / Zgodność z normami: IEEE 802.1Q VLAN (Virtual Local Area Network - Dot1q)
- Obsługiwane protokoły / Zgodność z normami: IEEE 802.1p Priorytetyzacja ruchu
- Obsługiwane protokoły / Zgodność z normami: IEEE 802.1x
- Rozmiar tablicy MAC: 16 K
- Zarządzanie przez WWW (Smart): Tak
- Zarządzanie z lini poleceń (CLI): Tak
- Przepustowość (Gb/s): 104.0
- Szybkość przekierowań pakietów (Mpps): 77.37
- Ramka Jumbo (Bajt): 9216
- Bufor pamięci: 1536 KB
- Typ obudowy: Desktop/Rack 1U
- Wymiary [G x S x W] (mm): 330 x 440 x 44
- Informacje dodatkowe: 802.1p CoS/DSCP priority
- Informacje dodatkowe: 8 priority queues
- Informacje dodatkowe: Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
- Informacje dodatkowe: Queue Weight Config
- Informacje dodatkowe: 16 IP Interfaces: Support IPv4/IPv6 Interface
- Informacje dodatkowe: Static Routing: 32 IPv4/IPv6 Static Routes
- Informacje dodatkowe: DHCP Server
- Informacje dodatkowe: IGMP Snooping
- Informacje dodatkowe: Multicast Filtering
- Informacje dodatkowe: VLAN Group: Max. 4K VLAN Groups
- Informacje dodatkowe: Port based authentication
- Informacje dodatkowe: MAC (Host) based authentication
- Informacje dodatkowe: Omada App
- Informacje dodatkowe: Centralized Management:
- Informacje dodatkowe: - Omada Cloud-Based Controller
- Informacje dodatkowe: - Omada Hardware Controller
- Informacje dodatkowe: - Omada Software Controller
- Informacje dodatkowe: Zero-Touch Provisioning
- Informacje dodatkowe: Management Features:
- Informacje dodatkowe: - Web-based GUI
- Informacje dodatkowe: - Command Line Interface (CLI) through telnet
- Informacje dodatkowe: - SNMPv1/v2c/v3
- Informacje dodatkowe: - DHCP/BOOTP Client
- Informacje dodatkowe: - System Log
- Informacje dodatkowe: 32x 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- Informacje dodatkowe: 16x 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- Informacje dodatkowe: 4x Gigabit SFP Slots
- Informacje dodatkowe: Fanless
- Informacje dodatkowe: Physical Security Lock
- Informacje dodatkowe: Power Supply: 100-240 V AC~50/60 Hz
- Informacje dodatkowe: PoE Ports (RJ45):
- Informacje dodatkowe: - Standard: 802.3at/af compliant
- Informacje dodatkowe: - PoE+ Ports: 32 Ports (up to 30 W PoE Output per Port)
- Informacje dodatkowe: - PoE Power Budget: 230 W
- Informacje dodatkowe: Max Power Consumption: 304.5W (110 V/60 Hz) (with 230 W PD connected)
- Informacje dodatkowe: Max Heat Dissipation: 1035.4 BTU/hr (110 V/60 Hz) (with 230 W PD connected)
- Informacje dodatkowe: Package Contents:
- Informacje dodatkowe: - SG2452LP
- Informacje dodatkowe: - Power Cord
- Informacje dodatkowe: - Quick Installation Guide
- Informacje dodatkowe: - Rackmount Kit
- Informacje dodatkowe: - Rubber Feet
- Informacje dodatkowe: System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or
- Informacje dodatkowe: Windows 7/8/10/11, MacOS, NetWare, UNIX, Linux
- Informacje dodatkowe: Operating Temperature: 0°C ~ 40°C
- Informacje dodatkowe: Storage Temperature: -40°C ~ 70°C
- Informacje dodatkowe: Operating Humidity: 10–90% RH
- Informacje dodatkowe: Storage Humidity: 5–90% RH
- Informacje dodatkowe: Certification: CE, FCC, RoHS
- Gwarancja producenta: 60
- Okres rękojmi w miesiącach: 60
- Strona o towarze: https://www.tp-link.com/my/business-networking/omada-switch-poe/sg2452lp/#specifications
- Kod producenta: SG2452LP
