Full-duplex and half duplex operation with IEEE 802.3x flow control
Store and forward; Auto MDI/MID-X
Dual configuration files; Dual images
Port-based VLAN; Guest VLAN; Storm control
Input priority mapping
Rate limiting per port (ingress/egress)
Port-based CoS; IP TOS precedence
Security: IEEE 802.1x,Port security,Layer 2 MAC filtering,BPDU guard,RADIUS
Security: TACACS+, SSL, Management VLAN, CPU defense engine, DoS prevention
Layer 2 Multicast: IGMP snooping (v1,v2,v3)
IPv6 over Ethernet (RFC 2464); Dual-stack (RFC 4213); ICMPv6 (RFC 4884)
Neighbor discovery (RFC 4861); Static IPv6 address and prefix length
Static IPv6 default gateway; IPv6 duplicate address detection
Discovery: IEEE 802.1 AB LLDP, LLDP-MED
SNMP v1,v2,v3; RMON (1,2,3,9); ICMP echo/echo reply; Syslog
MIB: RFC 1213 MIB II, RFC 2819 RMON (group 1,2,3,9), RFC 1215 generic traps
MIB: RFC 1493 bridge, Private MIB
Certifications - EMC: CE, FCC, C-Tick, Class B, BSMI CNS13438
Certifications - Safety: LVD EN60950-1, BSMI CNS14336-1, CB IEC60950-1,RoHS
Forwarding rate (Mpps): 14.88
Input voltage of AC: 100 - 240 V AC,50/60 Hz
Fanless
Temperatura podczas eksploatacji: 0°C do 50°C
Temperatura podczas przechowywania: od -40°C do 70°C
MTBF: 801,113 godz.
Total PoE power budget: 77 W

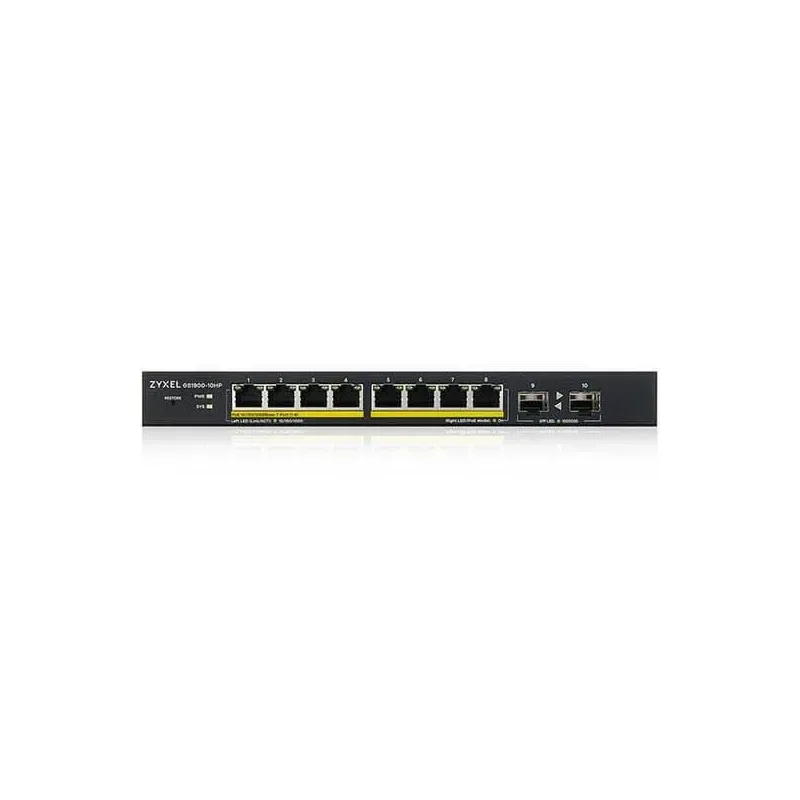

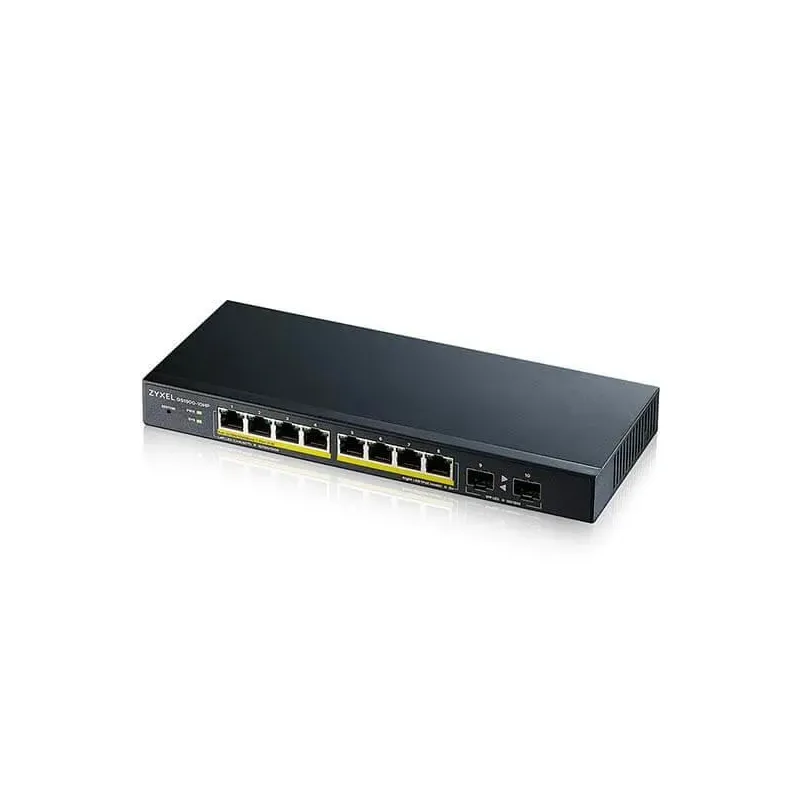

GS1900-10HP-EU0102F
2 Przedmioty
Opis
- Typ obudowy
- Desktop/Rack 1U
- Wymiary [G x S x W] (mm)
- 104 x 250 x 27
- Przepustowość (Gb/s)
- 16.0
- Ilość portów RJ-45 10/100MbE
- 0 szt.
- Ilość portów RJ-45 1GbE
- 8 szt.
- Ilość portów RJ-45 10GbE
- 0 szt.
- Port PoE
- Tak
- Ilość portów PoE
- 8
- Rodzaj urządzenia przewodowego
- Switch zarządzalny
- Ilość portów
- 8
- Zarządzanie przez WWW (Smart)
- Tak
- Ramka Jumbo (Bajt)
- 9000
- Architektura sieci LAN
- Gigabit Ethernet
- Rozmiar tablicy MAC adresów
- 8000 Bajty
- Ilość portów COMBO / SFP 1GbE
- 0 szt.
- Ilość portów SFP+ 10GbE
- 0 szt.
- Bufor pamięci
- 525 KB
- Ilość portów COMBO / SFP+ 10GbE
- 0 szt.
