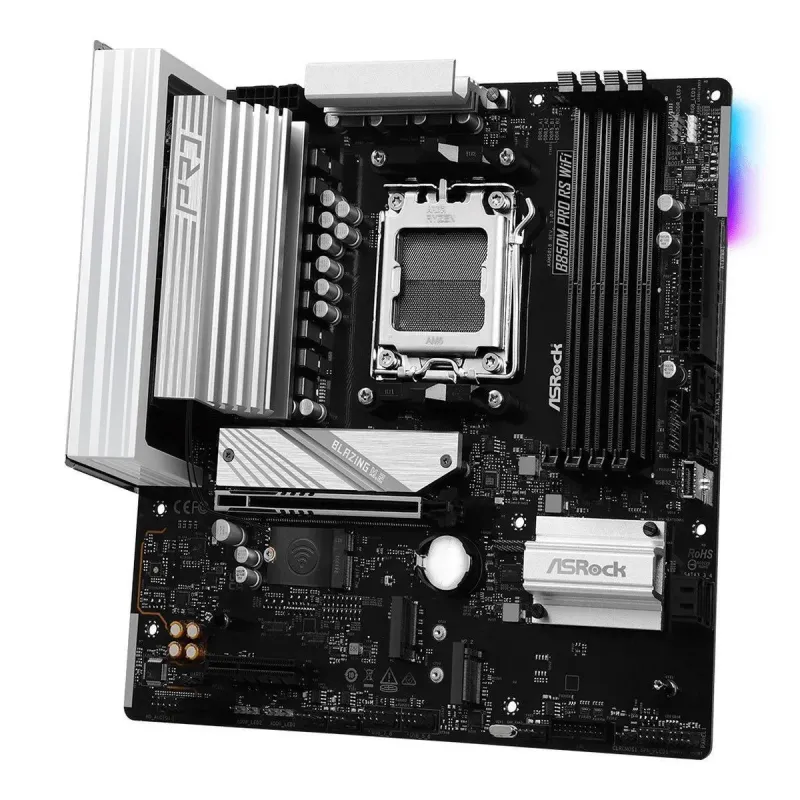

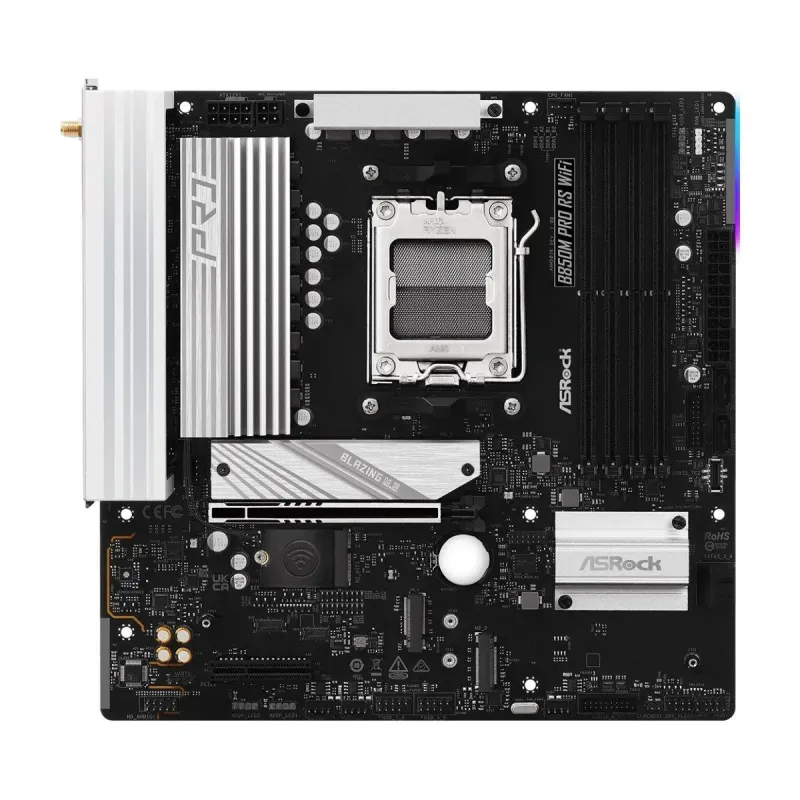

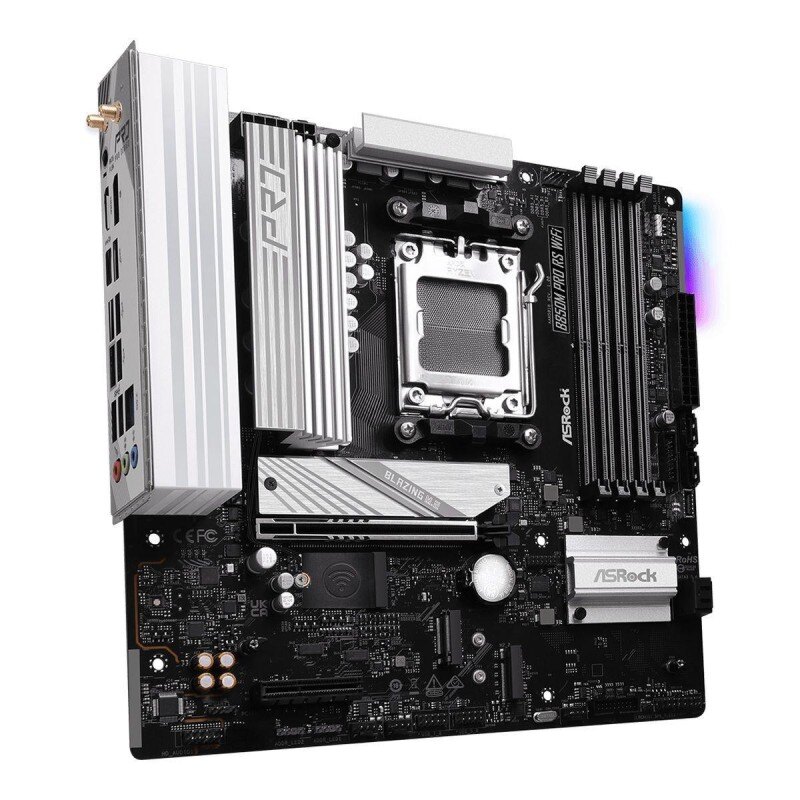

Płyta ASrock B850M Pro RS WiFi /AMD

Opis

Gniazdo procesora

Socket AM5

Format płyty

Micro-ATX

Bios

- 256Mb AMI UEFI Legal BIOS with GUI support

Zawiera baterię / akumulator

Tak

Wyposażenie dodatkowe

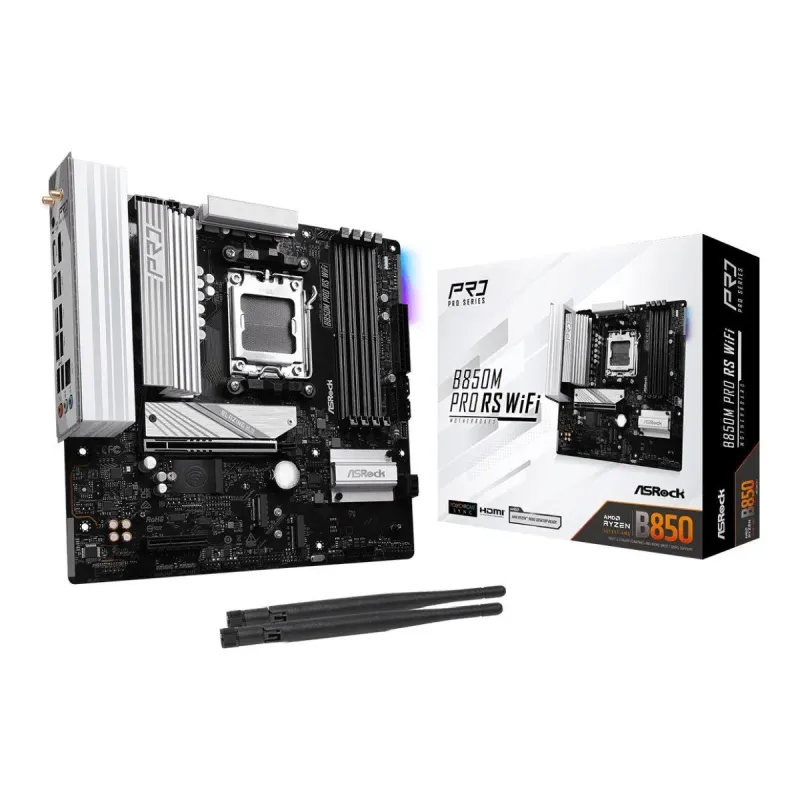

- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 2 x SATA Data Cables

Wymiary [S x W] (mm)

244 x 244

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.2

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 2,5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/axe

Chipset płyty głównej

AMD B850

Wbudowana karta graficzna

Brak lub AMD RDNA™ 2 (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™

Standard pamięci

DDR5-8000+ (OC)

Uwagi do karty graficznej

- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max.
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max.
resolution up to 4K 120Hz

Uwagi do procesora

- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

Overclocking (EXPO) memory modules
Supports DDR5 ECC/non-ECC
Supports Extreme Memory Profile (XMP) and EXTended Profiles for

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2

Uwagi do kontrolera SATA

(64 Gb/s) mode
(128 Gb/s) mode
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4
- 4 x SATA3 6.0 Gb/s Connectors
8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2)
CPU:
Chipset:
If M2_3 is occupied, PCIE2 will be disabled.
M2_1 is the first priority for M.2 installation.
M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4
M2_3 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with
Requires additional M.2 NVMe expansion cards to support RAID 10
Supports NVMe SSD as boot disks
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
series processors.
with 8000 (Phoenix 1 and Phoenix 2) series processors.

Gniazda karty graficznej

DisplayPort
HDMI

Zintegrowana karta dźwiękowa

Realtek ALC897

Gniazda karty dźwiękowej

3x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Uwagi do karty dźwiękowej

- 7.1 CH HD Audio
- Nahimic Audio

Złącza PCI Express x16

1

Złącza PCI Express x4

1

Uwagi do złącz PCI

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
- 15µ Gold Contact in VGA PCIe Slot (PCIE1)
8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2)
CPU:
Chipset:
If M2_3 is occupied, PCIE2 will be disabled.
PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with
Supports NVMe SSD as boot disks
series processors.

Uwagi do karty sieciowej

- Optimized Default Setting for Game, Browser, and Streaming Modes
- Smart Auto Adjust Bandwidth Control
- User Customized Priority Control
- Visual Network Usage Statistics
- Visual User Friendly UI
Supports Dragon 2.5G LAN Software

Maksymalna ilość portów USB 2.0

8

Maksymalna ilość portów USB 3.x

9

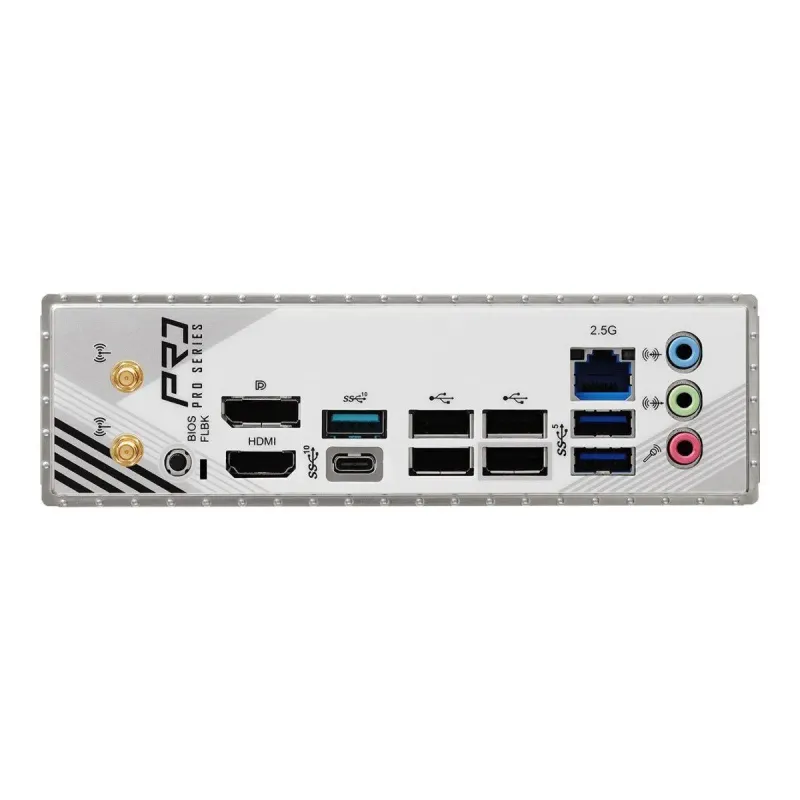

Porty USB na panelu tylnym

4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C

Gniazda USB na płycie głównej

4x USB 2.0 + 4x USB 3.0 + 1x USB 3.0 Type-C

Port PS/2

Brak

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Inne porty i gniazda

2x Antenna Ports
2x CPU Fan connector(s)
3x Addressable LED Headers
3x Chassis Fan Connectors
BIOS FlashBack button
Front Panel Audio Connector
Power LED and Speaker Header
RGB LED Header
SPI TPM header (14-1pin)

Gniazdo zasilania

ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)

Ilość złącz pamięci DDR5

4

Uwagi do WiFi / BT

- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- 802.11axe Wi-Fi 6E Module
- Supports Dual-Band 2x2 with extended 6GHz band support
- Supports MU-MIMO
A 6GHz compatible router is required for 6E functionality.
The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. There is no
depend on the different regulation status of each country and region. It
driver available for Windows® 10. The availability of the 6GHz band will
software updates once available.
will be activated (for supported countries) through Windows® Update and
