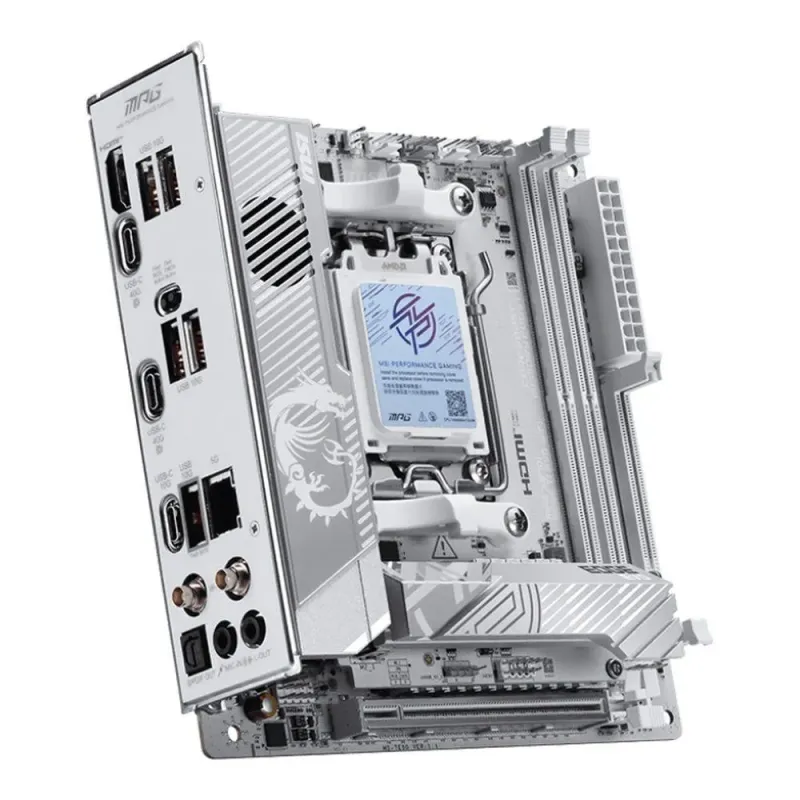

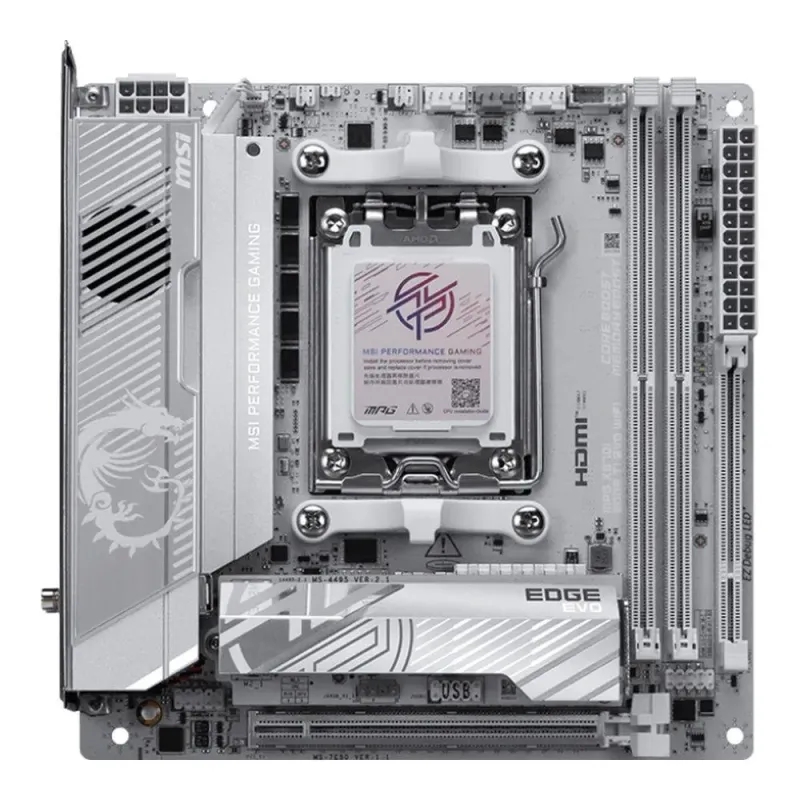

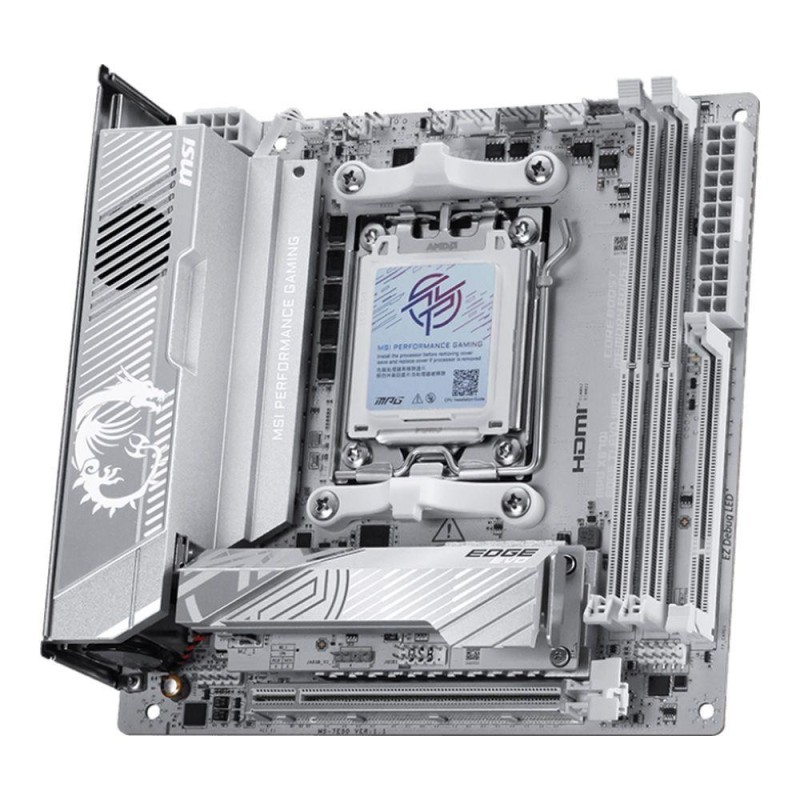

Płyta MSI MPG X870I EDGE TI EVO WIFI /AMD

Opis

Gniazdo procesora

Socket AM5

Format płyty

Mini-ITX

Zawiera baterię / akumulator

Tak

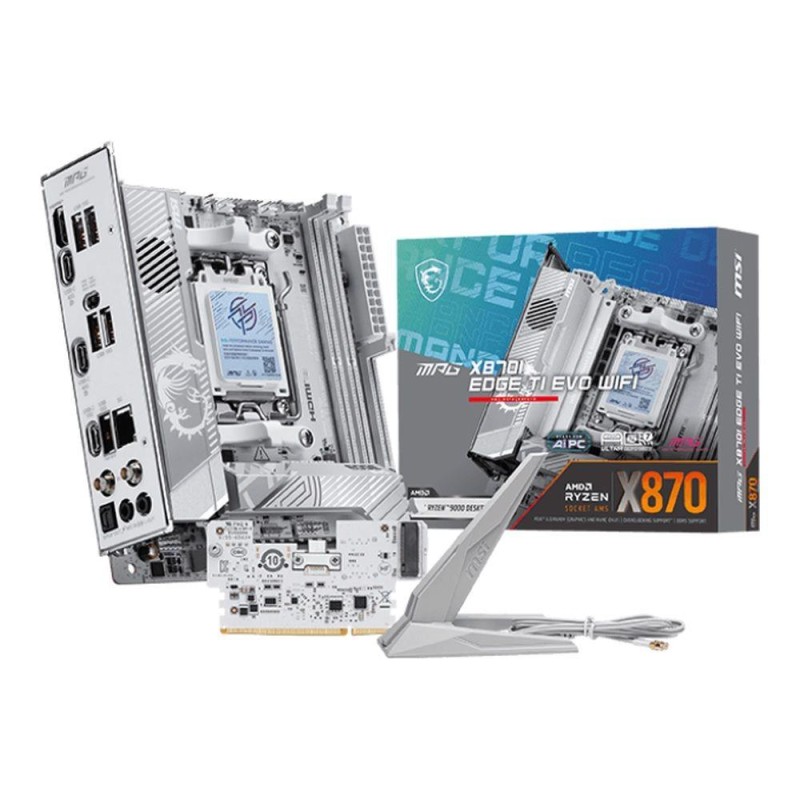

Wyposażenie dodatkowe

1 to 3 EZ Conn-Cable (V2)
2 x SATA Cables
3x M.2 Screws
5-in-1 XPANDER Card
5-in-1 XPANDER USB 5Gbps Cable
Cable Sticker
EZ Front Panel Cable
EZ Wi-Fi antenna
European Union Regulatory Notice
Quick Installation Guide
USB Drive

Wymiary [S x W] (mm)

170 x 170

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

128 GB

Port LAN

1x 5 Gigabit LAN Realtek® 8126

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

AMD X870

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™ (AM5)

Standard pamięci

DDR5-4800
DDR5-5000
DDR5-5200
DDR5-5400
DDR5-5600 (OC)
DDR5-5800 (OC)
DDR5-6000 (OC)
DDR5-6200 (OC)
DDR5-6400 (OC)
DDR5-6600 (OC)
DDR5-6800 (OC)
DDR5-7000 (OC)
DDR5-7200 (OC)
DDR5-7400 (OC)
DDR5-7600 (OC)
DDR5-7800 (OC)
DDR5-8000 (OC)
DDR5-8200 (OC)
DDR5-8266 (OC)
DDR5-8333 (OC)
DDR5-8400 (OC)
DDR5-8600 (OC)
DDR5-8666 (OC)
DDR5-8800 (OC)
DDR5-8933 (OC)
DDR5-9066 (OC)
DDR5-9200 (OC)
DDR5-9333 (OC)
DDR5-9466 (OC)
DDR5-9500 (OC)
DDR5-9600 (OC)
DDR5-9800 (OC)
DDR5-10000 (OC)

Uwagi do karty graficznej

4K 60Hz
Available only on processors featuring integrated graphics
Graphics specifications may vary depending on the CPU installed.
Support HDMITM 2.1 with TMDS port, supporting a maximum resolution of

Uwagi do procesora

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

- 1DPC 1R Max speed up to 8400+ MT/s
- 1DPC 2R Max speed up to 8000+ MT/s
Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
Supports AMD POR Speed and JEDEC Speed
Supports CUDIMM, Clock Driver bypass mode only
Supports Dual-Channel mode
Supports Memory Overclocking and AMD EXPO
Supports Non-ECC, Un-buffered Memory

Zintegrowany kontroler SATA

Chipset+CPU: 2x SATA III 6Gb/s - RAID 0,1 + 3x M.2 - RAID 0, 1, 5

Uwagi do kontrolera SATA

- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4,
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 ,
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4,
- Supports single sieded M.2 SSD only
- Supports up to PCIe 4.0 x4
M.2_1 slot (From CPU):
M.2_3 slot (From X870 chipset)(5-in-1 XPANDER Card):
RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
Supports RAID 0, RAID 1 and RAID 5* for M.2 NVMe storage devices
Supports RAID 0, and RAID 1 for SATA storage devices
supports 2280 devices

Gniazda karty graficznej

2x USB4 Type-C
HDMI

Zintegrowana karta dźwiękowa

Realtek® ALC4080 7.1-Channel USB High Performance Audio CODEC

Gniazda karty dźwiękowej

2x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Uwagi do karty dźwiękowej

Supports up to 32-Bit/384 kHz playback on front panel

Złącza PCI Express x16

1

Uwagi do złącz PCI

- Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
- Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
- Supports the installation of MSI 5-in-1 XPANDER card only.
1x FP card slot:
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E1 slot (From CPU):

Maksymalna ilość portów USB 2.0

2

Maksymalna ilość portów USB 3.x

9

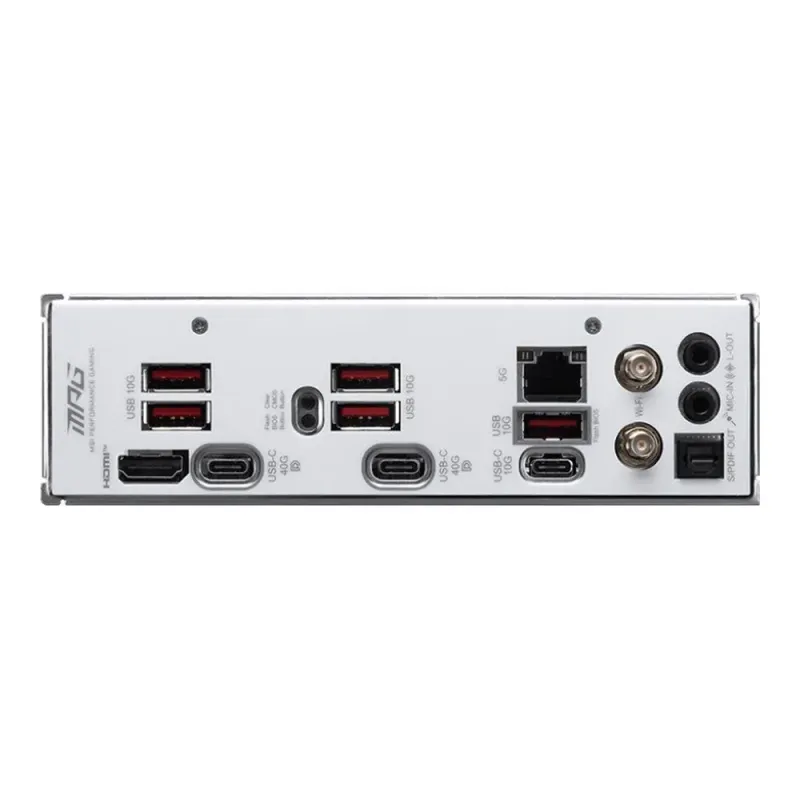

Porty USB na panelu tylnym

5x USB 3.1 + 1x USB 3.1 Type-C + 2x USB4 Type-C

Gniazda USB na płycie głównej

2x USB 2.0 + 2x USB 3.0 + 1x USB 3.2 Type-C

Port PS/2

Brak

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Inne porty i gniazda

2x Front Panel
4x EZ Debug LED
Addressable V2 RGB LED connector
CPU Fan
Chassis Intrusion (JCI)
Combo Fan (Pump_Sys Fan)
EZ Conn-header (JAF_2)
System Fan

Gniazdo zasilania

ATX (24-pin) + ATX12V (8-pin)

Ilość złącz pamięci DDR5

2

Maksymalna ilość portów USB 4.0

2

Uwagi do WiFi / BT

6GHz band support may depend on every country’s regulations and Wi-Fi 7
Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
Supports Bluetooth 5.4, MLO, 4KQAM
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
The Bluetooth version may be updated, please refer to the Wi-Fi chipset
The Wireless module is pre-installed in the M.2 (Key-E) slot
Wi-Fi 7
vendor’s website for details
will be ready in Windows 11 SV3.
