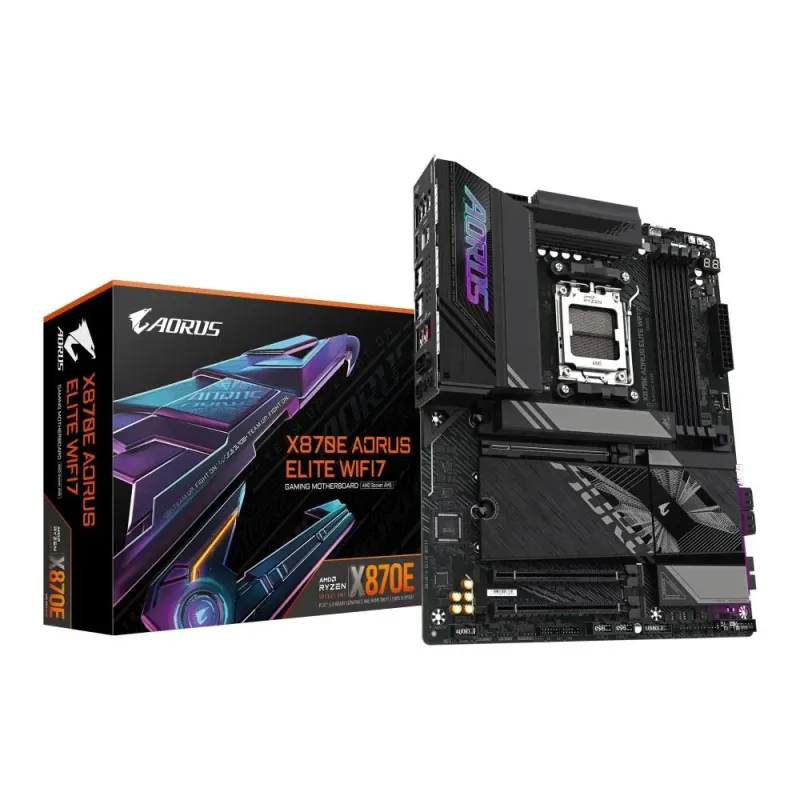

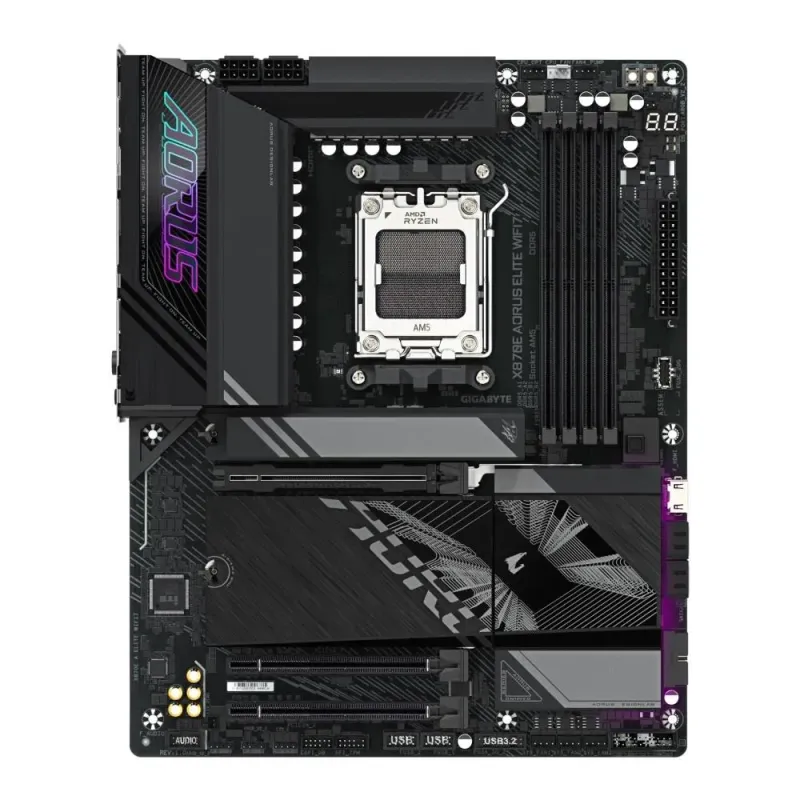

Płyta Gigabyte X870E AORUS ELITE WIFI7 /AMD

Opis

Gniazdo procesora

Socket AM5

Format płyty

ATX

Bios

256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Zawiera baterię / akumulator

Tak

Wymiary [S x W] (mm)

305 x 244

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

AMD X870

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™

Standard pamięci

DDR5-4400
DDR5-4800
DDR5-5200
DDR5-5600 (OC)
DDR5-6000 (OC)
DDR5-6200 (OC)
DDR5-6400 (OC)
DDR5-6600 (OC)
DDR5-6666 (OC)
DDR5-6800 (OC)
DDR5-7000 (OC)
DDR5-7200 (OC)
DDR5-7600 (OC)
DDR5-7800 (OC)
DDR5-8000 (OC)

Uwagi do karty graficznej

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia
Integrated Graphics Processor with AMD Radeon™ Graphics support:
Support for DisplayPort 1.4 version and HDR
Support for HDMI 1.4 version
Support for HDMI 2.1 version, HDCP 2.3, and HDR
Support native HDMI 2.1 TMDS compatible ports
USB4® Controller:
outputs and a maximum resolution of 3840x2160@240 Hz

Uwagi do procesora

Support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

Extreme Memory Profile (XMP) memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10,5 + 4x M.2

Uwagi do kontrolera SATA

- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M
1x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3,
2x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting
M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
M key, type 25110/22110/2580/2280 SSDs:
RAID 5 is only available on AMD Ryzen 9000 Series Processors
Socket 3, M key, type 22110/2280 SSDs:

Gniazda karty graficznej

2x HDMI
2x USB4 Type-C

Zintegrowana karta dźwiękowa

Realtek® ALC1220 CODEC

Gniazda karty dźwiękowej

2x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Uwagi do karty dźwiękowej

To configure 7.1-channel audio, access the audio software for audio setting
You can change the functionality of an audio jack using the audio software

Złącza PCI Express x16

3

Uwagi do złącz PCI

- 1 x PCI Express x16 slot (PCIEX16)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
- The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot
- The PCIEX4 slot becomes unavailable when a device is installed in the
- The PCIEX4 slot shares bandwidth with the M2D_SB connector
- The PCIEX16 slot can only support a graphics card or an NVMe SSD
- When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot
CPU:
Chipset:
If only one graphics card is to be installed, be sure to install it
M2D_SB connector
in the PCIEX16 slot.)
operates at up to x8 mode

Maksymalna ilość portów USB 2.0

8

Maksymalna ilość portów USB 3.x

11

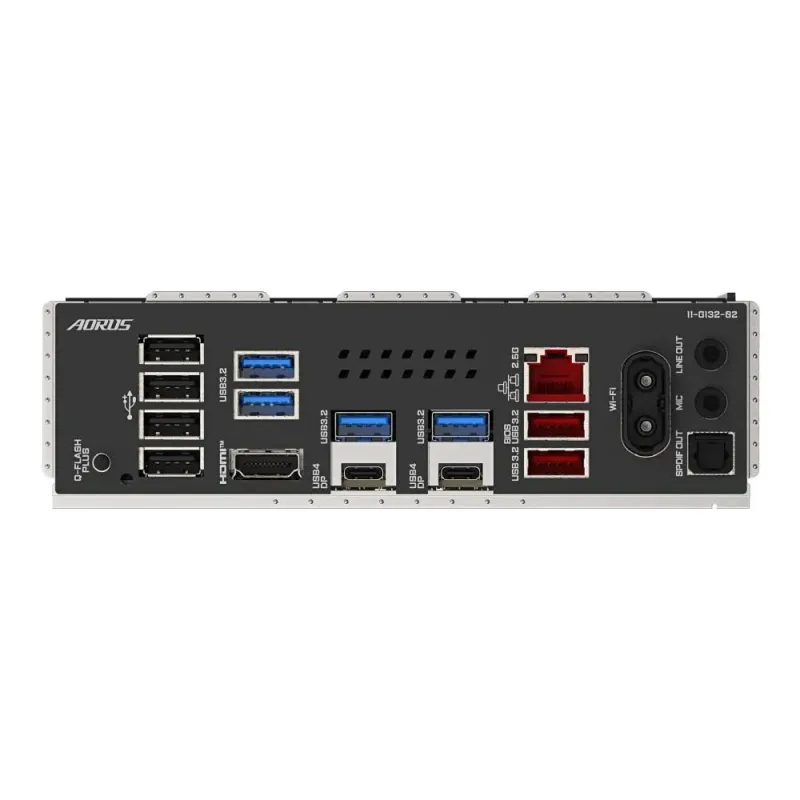

Porty USB na panelu tylnym

4x USB 2.0 + 4x USB 3.0 + 2x USB 3.1 + 2x USB4 Type-C

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)

Port PS/2

Brak

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Inne porty i gniazda

2x SMA antenna connectors (2T2R)
3x Addressable RGB Gen2 LED strip headers
3x system fan headers
CPU fan/water cooling pump header
CPU fan header
Clear CMOS jumper
Gniazdo modułu TPM
Q-Flash Plus button
RGB LED strip header
Reset button
Reset jumper
System fan/water cooling pump header

Gniazdo zasilania

ATX (24-pin) + ATX12V (8-pin)

Ilość złącz pamięci DDR5

4

Maksymalna ilość portów USB 4.0

2

Uwagi do WiFi / BT

Support for 11be 160MHz wireless standard
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
