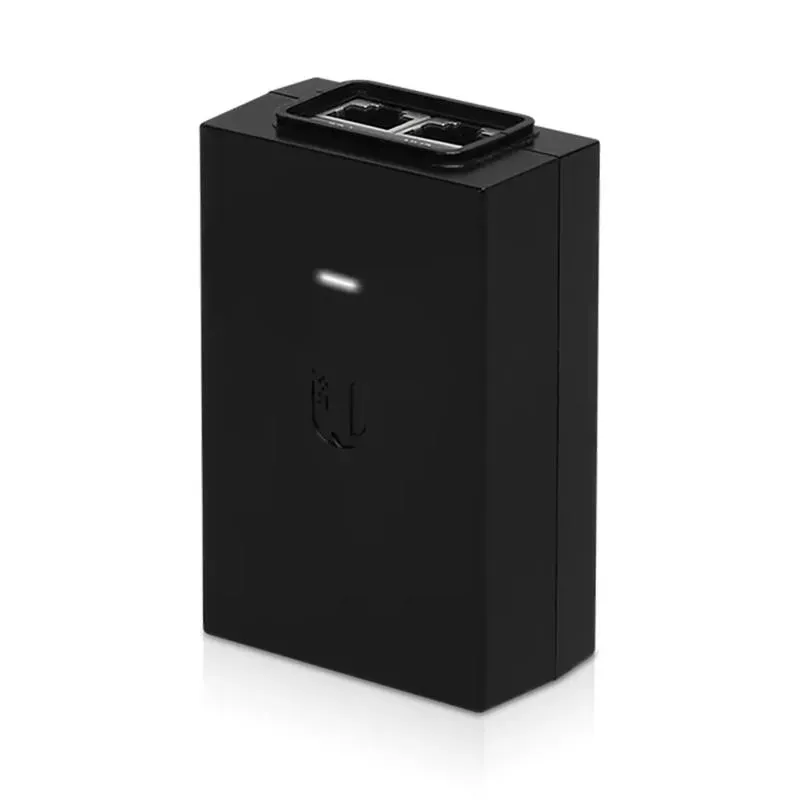

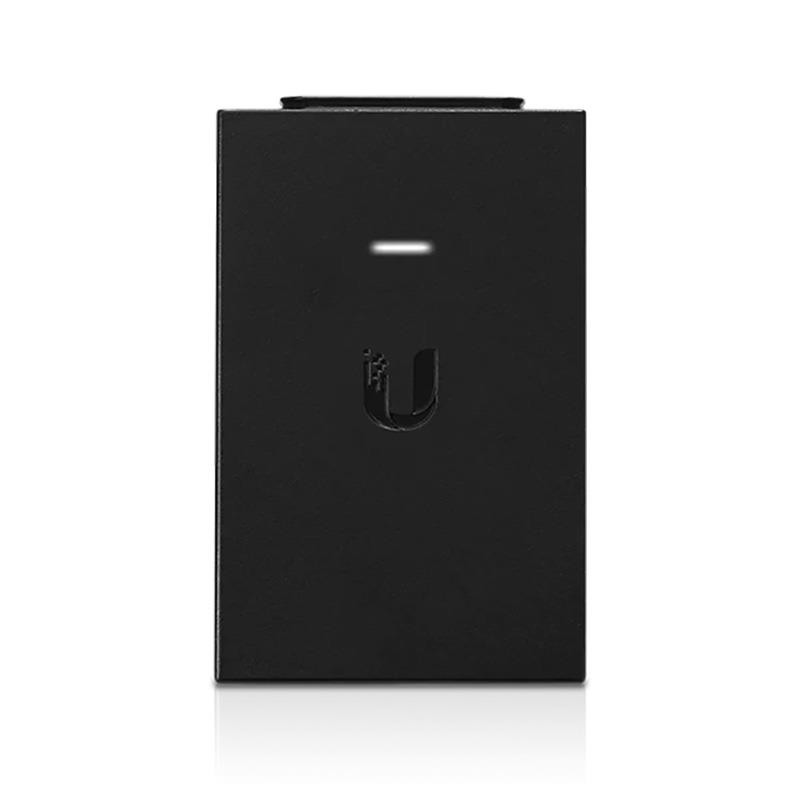

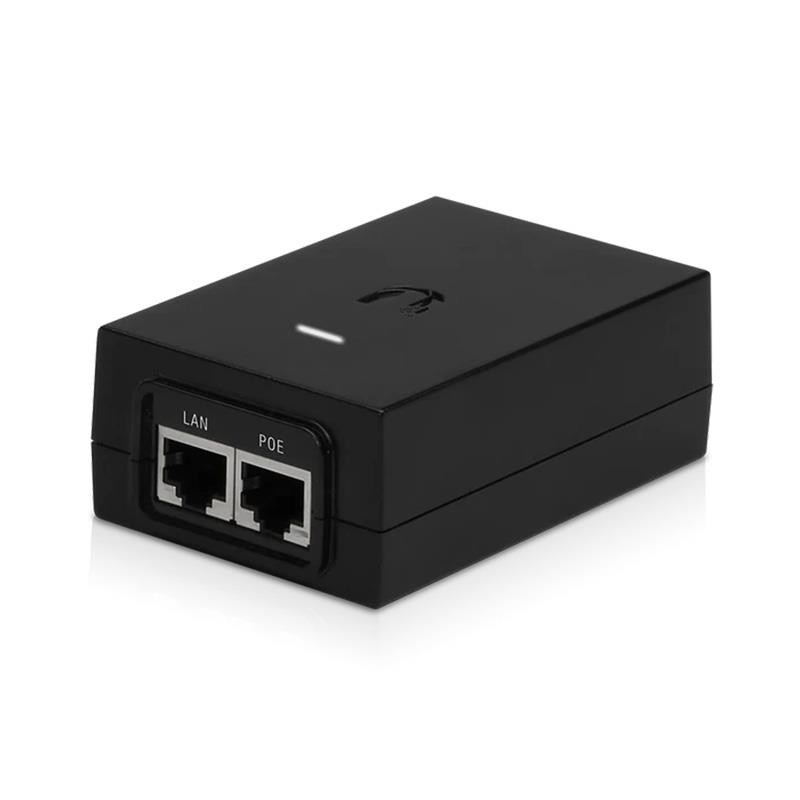

Zasilacz UBIQUITI Passive PoE 24V 1A 24W 1GbE
55,00 zł
Brutto
Zasilacz UBIQUITI Passive PoE 24V 1A 24W 1GbE od Ubiquiti Networks Inc z kategorii zasilacze sieciowe i poe. Sprawdz specyfikacje i zamow w PartsPC.pl.

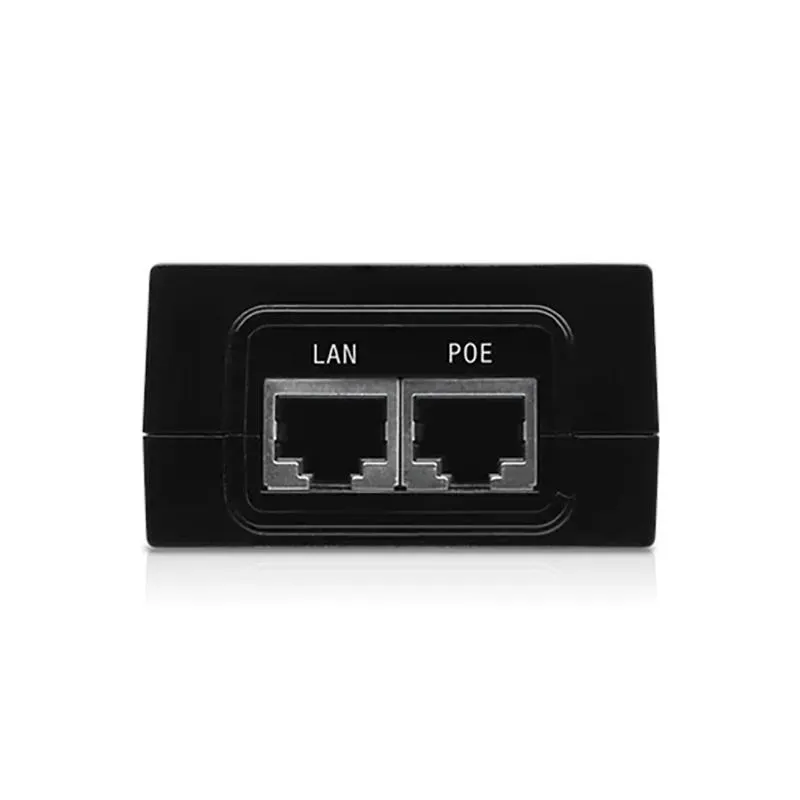

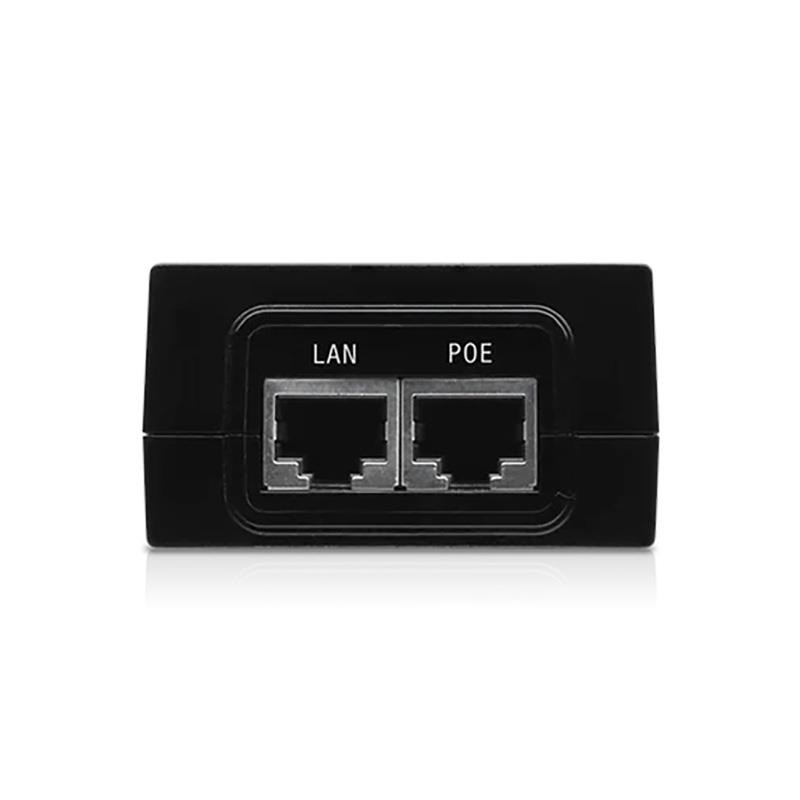

Gigabit LAN Port
Data IN / PoE: RJ45 Shielded Socket
Rated Voltage: 100-240VAC @ 50/60Hz
Output Voltage: 24VDC @ 1.0A
Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current: <60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency: 80+%
Output Ripple: 1% Max.
Switching Frequency: 65 kHz
Line Regulation: <=3%
Load Regulation: <=5%
2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature : 0-40° C (32-104° F)
Storage Temperature: -30-70°C (-22-158° F)
Operating Humidity: 35-95% Noncondensing
AC Connector: IEC-320 C6
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A (8/20 µs) Power
Peak Pulse Current: 36A (10/1000 µs) Data
Shunt Capacitance: <5 pF data
Response Time: <1 ns
Remote Reset Capability, Reset Button
Dimensions: 88 x 57 x 33 mm
Weight: 158.5 g
Certifications: CE, FCC, IC, UL
Data IN / PoE: RJ45 Shielded Socket
Rated Voltage: 100-240VAC @ 50/60Hz
Output Voltage: 24VDC @ 1.0A
Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current: <60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency: 80+%
Output Ripple: 1% Max.
Switching Frequency: 65 kHz
Line Regulation: <=3%
Load Regulation: <=5%
2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature : 0-40° C (32-104° F)
Storage Temperature: -30-70°C (-22-158° F)
Operating Humidity: 35-95% Noncondensing
AC Connector: IEC-320 C6
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A (8/20 µs) Power
Peak Pulse Current: 36A (10/1000 µs) Data
Shunt Capacitance: <5 pF data
Response Time: <1 ns
Remote Reset Capability, Reset Button
Dimensions: 88 x 57 x 33 mm
Weight: 158.5 g
Certifications: CE, FCC, IC, UL
