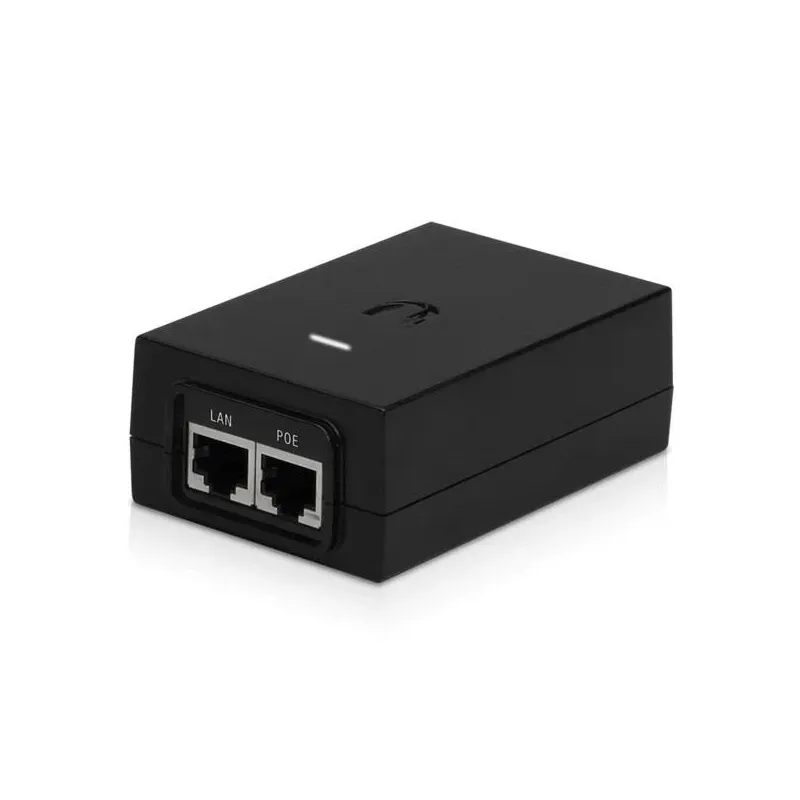

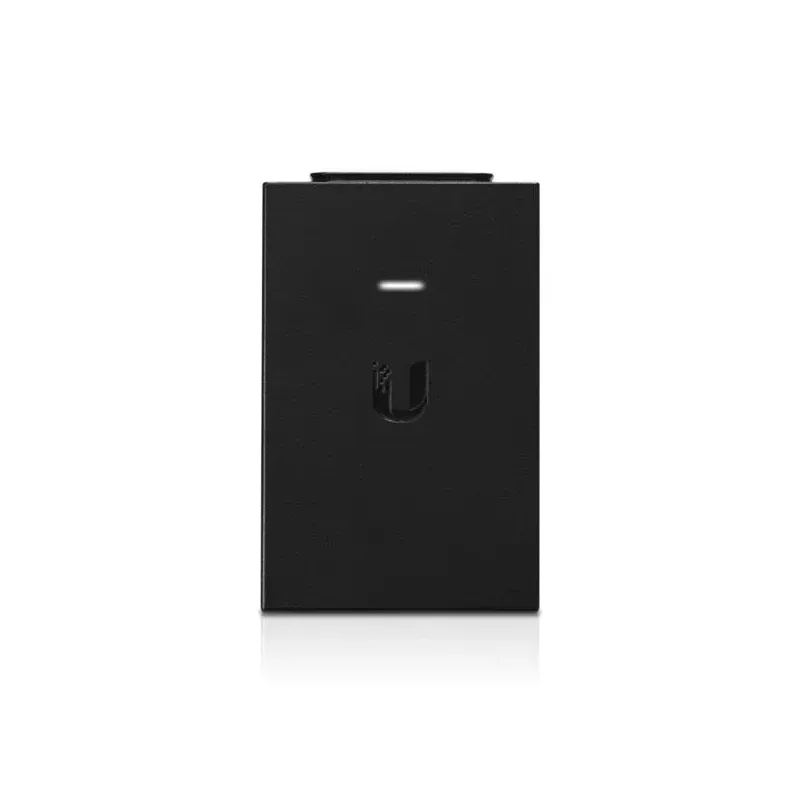

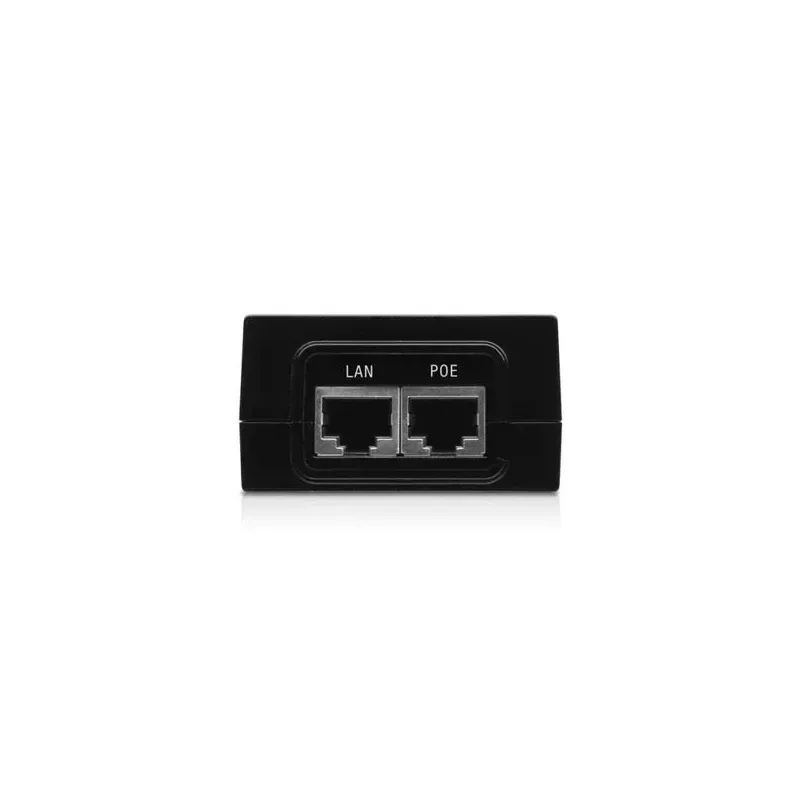

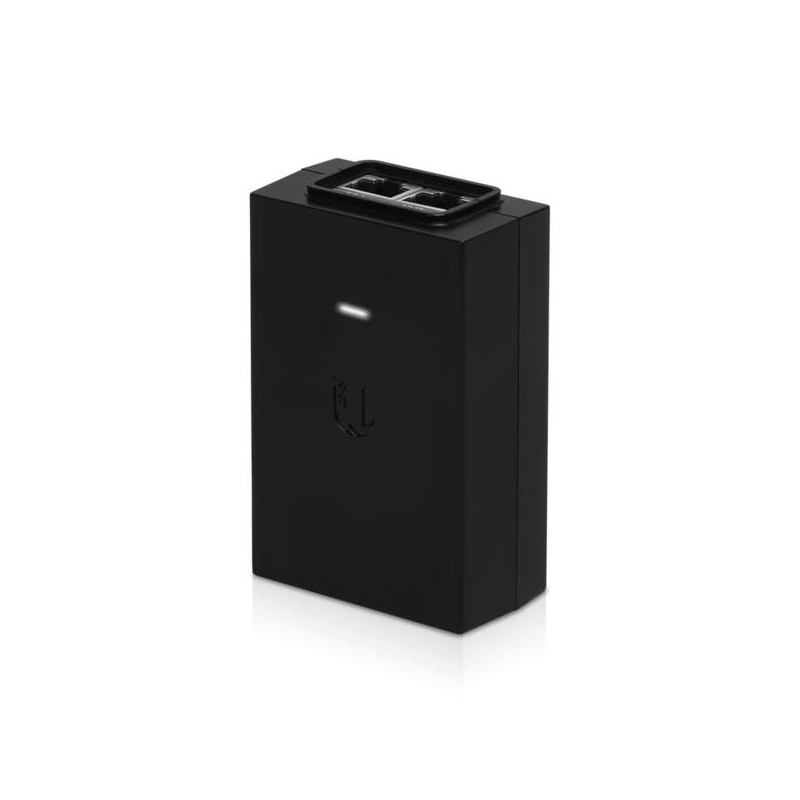

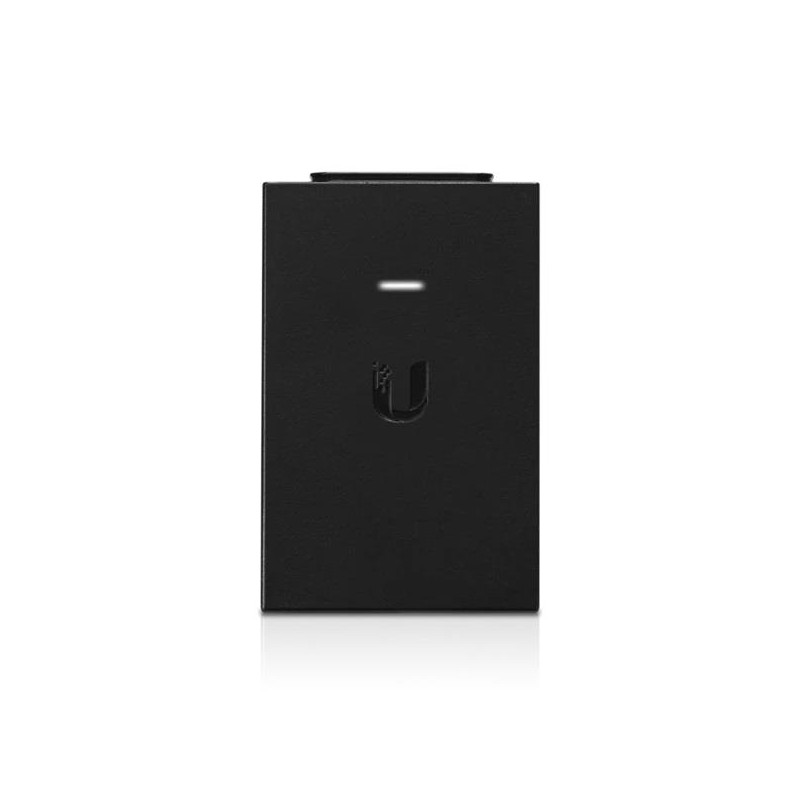

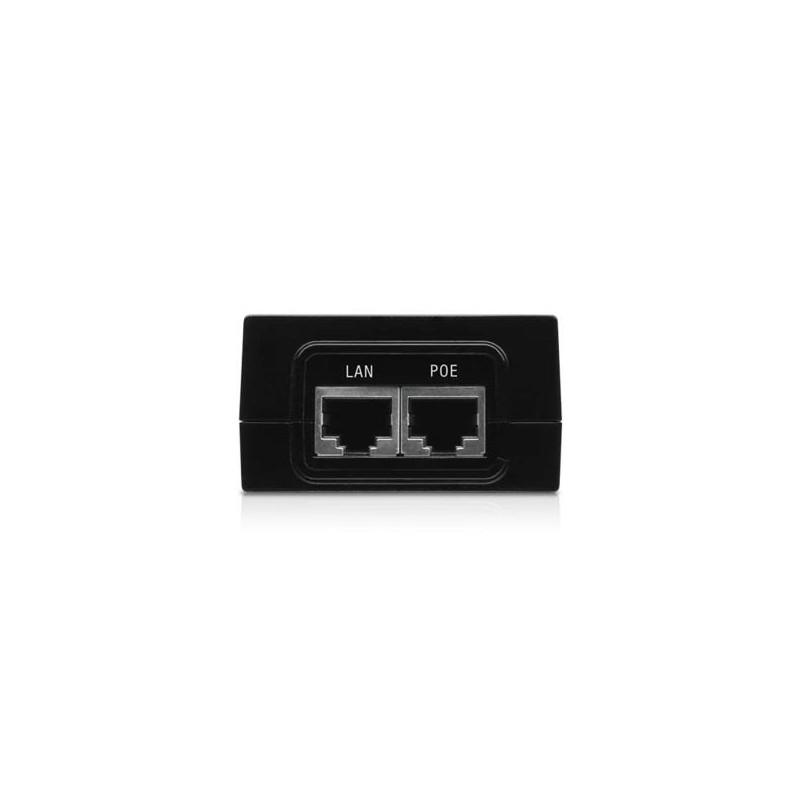

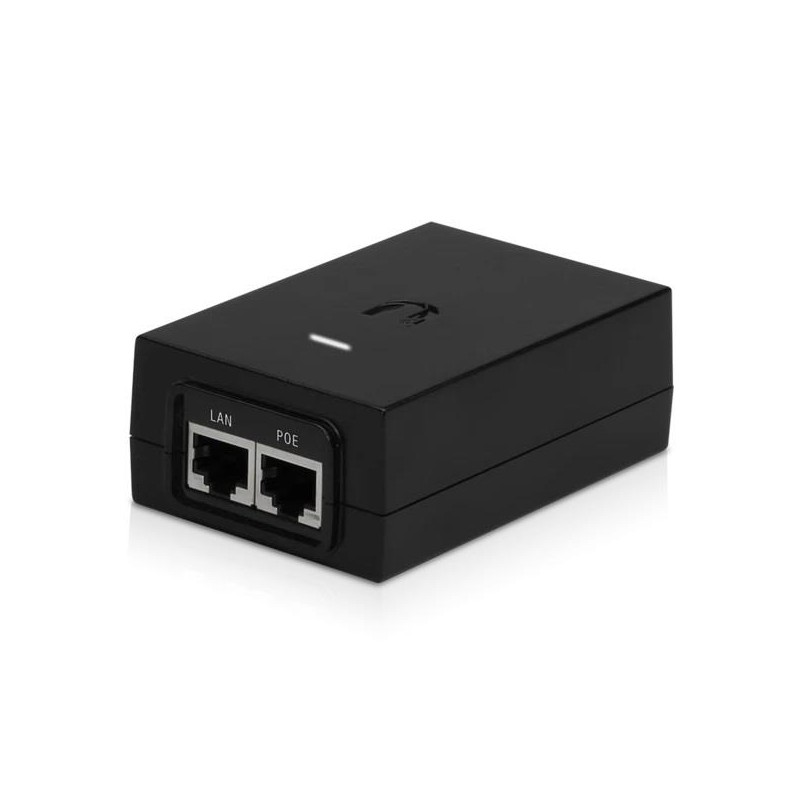

Zasilacz UBIQUITI POE-24-30W-EU PoE 24V 1,25A 30W Gigabit
63,99 zł
Brutto
Zasilacz UBIQUITI POE-24-30W-EU PoE 24V 1,25A 30W Gigabit od Ubiquiti Networks Inc z kategorii zasilacze sieciowe i poe.
Dimensions: 94 × 60 × 33 mm
Weight: 156 g
Output Voltage: 24VDC @ 1,25A
Gigabit LAN Port
Rated Voltage : 100-240VAC @ 50/60Hz
Input Current: 0,6A @ 120VAC, 0,4A @ 240VAC
Inrush Current: <60A Peak @120VAC, <120A Peak @ 230VAC
Efficiency: 83+%
Output Ripple: 1% Max.
Switching Frequency: 65 kHz
Line Regulation: < 3%
Load Regulation: < 5%
4-Pair Powering: Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
Operating Temperature: 0 to 40° C (32 to 104° F)
Storage Temperature: -30 to 70°C (-22 to 158° F)
Operating Humidity: 35 to 95% Noncondensing
AC Connector: IEC-320 C6
Data IN / POE: RJ45 Shielded Socket
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A (8/20 µs) Power
Peak Pulse Current: 36A (10/1000 µs) Data
Shunt Capacitance: <5 pF data
Response Time: <1 ns
Certifications: CE, FCC, IC, UL
Weight: 156 g
Output Voltage: 24VDC @ 1,25A
Gigabit LAN Port
Rated Voltage : 100-240VAC @ 50/60Hz
Input Current: 0,6A @ 120VAC, 0,4A @ 240VAC
Inrush Current: <60A Peak @120VAC, <120A Peak @ 230VAC
Efficiency: 83+%
Output Ripple: 1% Max.
Switching Frequency: 65 kHz
Line Regulation: < 3%
Load Regulation: < 5%
4-Pair Powering: Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
Operating Temperature: 0 to 40° C (32 to 104° F)
Storage Temperature: -30 to 70°C (-22 to 158° F)
Operating Humidity: 35 to 95% Noncondensing
AC Connector: IEC-320 C6
Data IN / POE: RJ45 Shielded Socket
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A (8/20 µs) Power
Peak Pulse Current: 36A (10/1000 µs) Data
Shunt Capacitance: <5 pF data
Response Time: <1 ns
Certifications: CE, FCC, IC, UL
