Image Sensor: 1/3" Progressive Scan CMOS sensor
Day & Night: ICR type
Focal Length: 4mm
Aperture: F1.6
Supplementary: Light Two High-Power Spotlights and Infrared Lights
Supplementary: Light Distance Up to 30 m/100 ft (depending on environment)
IR Wavelength: 850nm
Night Vision: Mode Smart Mode, Full Color Mode, Black & White Mode
Main Stream Resolution: 2304 ×1296, 1920 × 1080, 1280 × 720
Sub Stream Resolution: 640 × 360, 352 × 288
Frame Rate: 1-30fps, Default 20fps
Audio Encoding Format: G.711A, G.711U, AAC
Image Enhancement: DWDR, BLC, HLC, 3D DNR
Privacy Mask: 4 Areas
Pan Movement Range: 0°-355°
Tilt Movement Range: 0°-90°
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3-SAE
Smart Detection: Motion detection, Human detection, Vehicle detection
Smart Linkage: Sound&light Alert, Human Tracking
Built-in MIC, Built-in Speaker
Built-in Micro SD Card Slot, Up to 512 GB
Power: 12V DC,1A,O5.5mm&O2.1mm Power Plug
Product Weight: 367g
Protection Level: IP65
Installation Method: Wall Mounting, Ceiling Mounting, Pole Mounting
Certification: CE, RoHS, FCC, RCM, UKCA
Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity: 10% ~ 95% RH (non-condensing)
Package Contents
- Camera
- Power Adapter (cord length: 3m)
- Installation Template
- Mounting Bracket
- Mounting Accessories Kit
- Waterproof Kit
- Quick Installation Guide

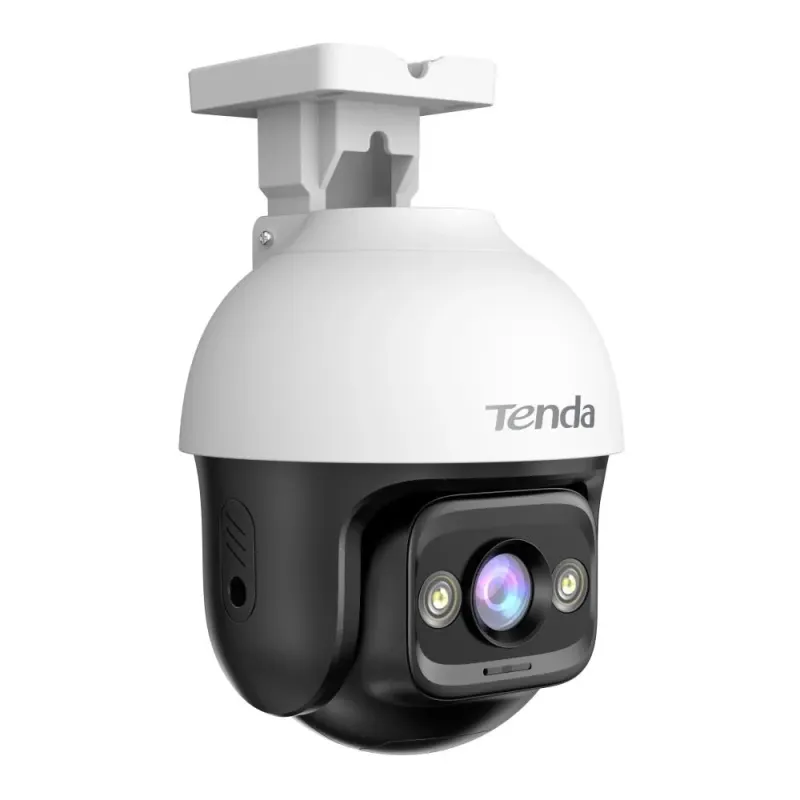

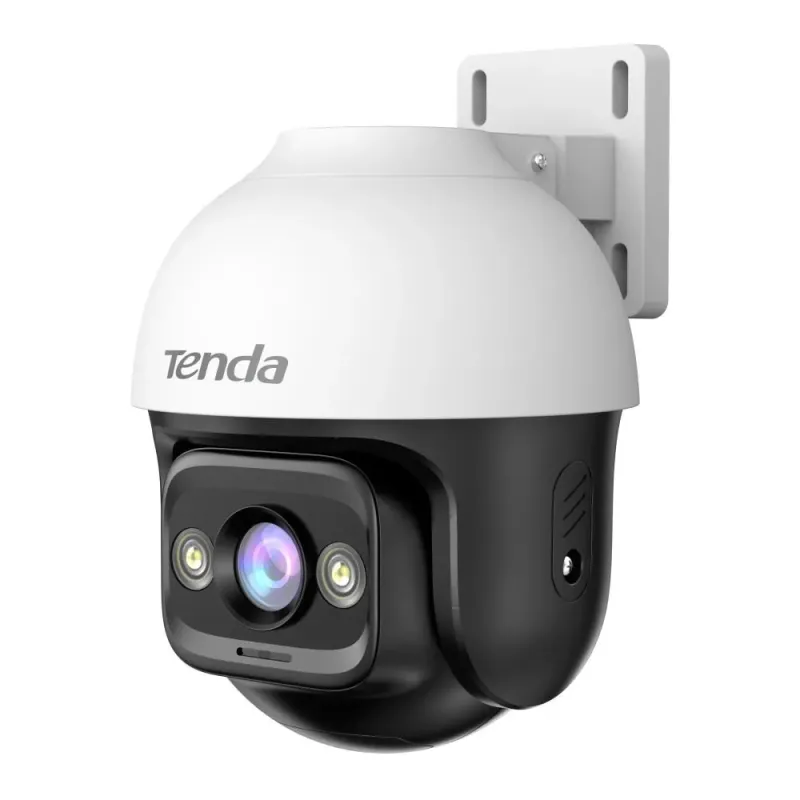

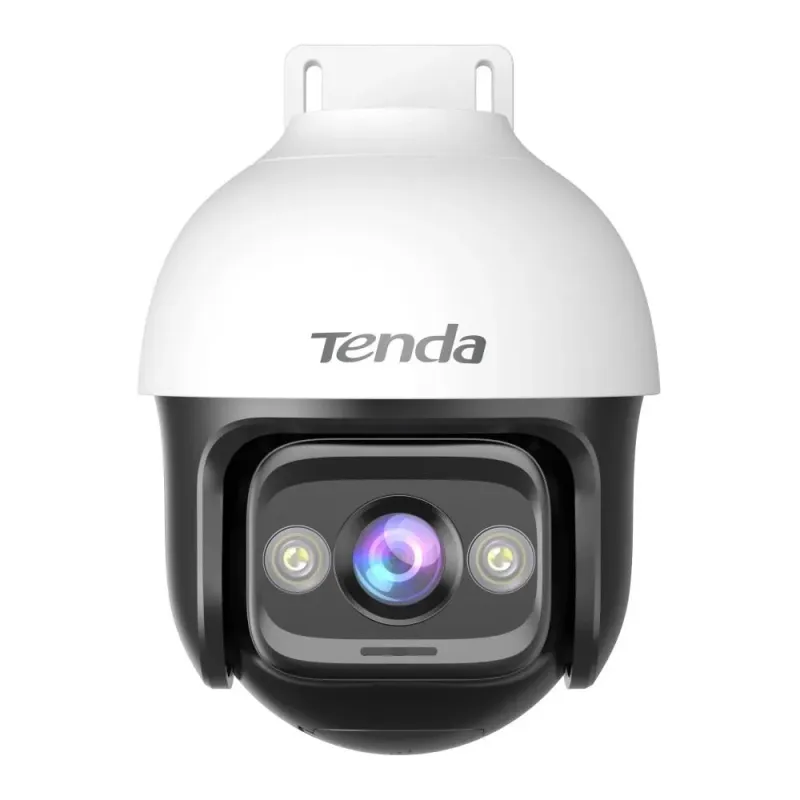

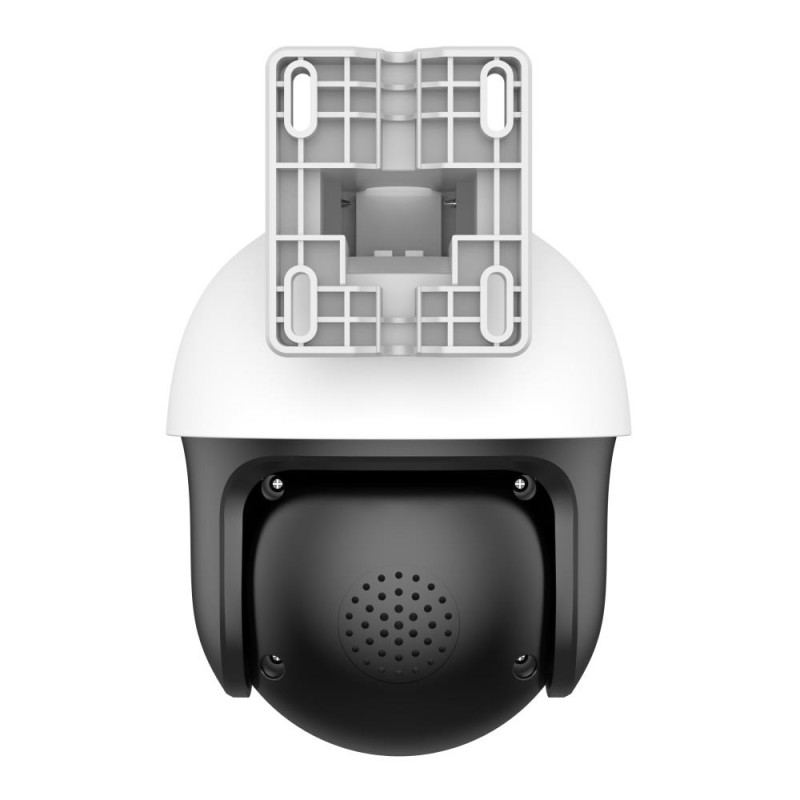

RH3-WCA V2.0
150 Przedmioty
Opis
- Zawiera baterię / akumulator
- Nie
- Gwarancja producenta [mies.]
- 24
- Wymiary [G x S x W] (mm)
- 120 x 120 x 146
- Interfejs komunikacyjny
- Fast Ethernet (RJ45)
WiFi 802.11ax
- Wbudowany mikrofon
- Tak
- Rozdzielczość natywna
- 2304 x 1296 pikseli
- Efektywna liczba pikseli [MPix]
- 3
- Kąt widzenia poziomy (H)
- 82.30 stopni
- Kąt widzenia pionowy (V)
- 44.70 stopni
- Zastosowanie kamery
- zewnątrz / wewnątrz
- Typ zasilania
- DC 12V
- Kąt widzenia diagonalny (D)
- 97.40 stopni
- Format kompresji
- H.264
H.265
- Zgodność z Onvif
- tak
- Obsługiwane protokoły / Zgodność z normami
- ARP (Address Resolution Protocol)
DDNS ( Dynamic Domain Name System)
DHCP (Protokół dynamicznego konfigurowania hostów)
DNS (Domain Name System)
HTTP
HTTPS
ICMP (Internet Control Message Protocol)
IEEE 802.11ax Połączenie bezprzewodowe (Wi-Fi 6)
IEEE 802.11b Połączenie bezprzewodowe do 11 Mb/s, częstotliwość 2,4 GHz
IEEE 802.11g Połączenie bezprzewodowe do 54 Mb/s, częstotliwość 2,4 GHz
IEEE 802.11n Połączenie bezprzewodowe (Wi-Fi 4)
NTP (Network Time Protocol)
RTCP
RTP (Real-time Transport Protocol)
RTSP (Real Time Streaming Protocol)
TCP/IP
UDP
- Tryb nocny
- Tak
- Zasięg podczerwieni / podświetlenia
- 30 m
- Minimalne oświetlenie
- 0 Lux
