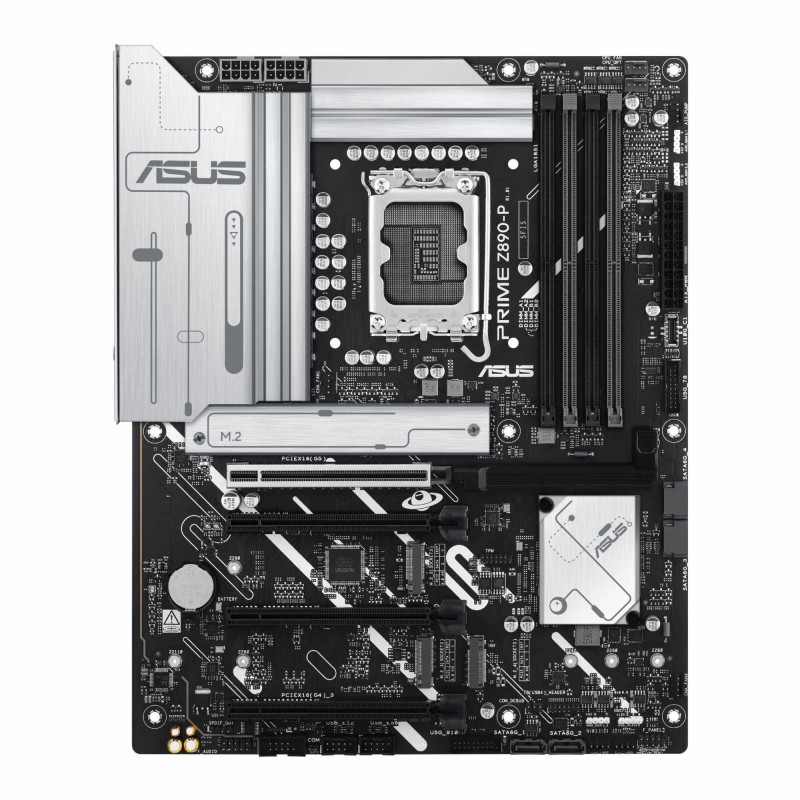

Płyta asus prime z890-p /z890/ddr5/sata3/m.2/usb3.2/pcie5.0/s.1851/atx

Opis

Informacje dodatkowe

- Windows 10 64-bit(21H2 & later)
- Windows 11 (22H2 & later)
Operating System:

Kod producenta

PRIME Z890-P

Cechy

Z890-P;ATX

Wyposażenie dodatkowe

1 x M.2 rubber package
1 x Quick start guide
2 x SATA 6Gb/s cables
2 x Screw packages for M.2 SSD

Chipset płyty głównej

Intel® Z890

Maksymalna wielkość pamięci

192 GB

Format płyty

ATX

Tryb pracy pamięci RAM

Dual Channel

Gniazda karty graficznej

1x USB 20Gbps port (USB Type-C®) supports DisplayPort
DisplayPort
HDMI

Gniazda karty dźwiękowej

3x Audio Jack
Wewnętrzne gniazdo S/PDIF Out
Wewnętrzne gniazdo audio przedniego panelu

Złącza PCI Express x16

4

Ilość złącz pamięci DDR5

4

Port PS/2

Brak

Port szeregowy (COM)

1x wewnętrzne gniazdo portu COM

Port równoległy (LPT)

Brak

Maksymalna ilość portów USB 2.0

8

Inne porty i gniazda

3x Addressable Gen 2 header
4-pin AIO Pump header
4-pin CPU Fan header
4-pin CPU OPT Fan header
4x 4-pin Chassis Fan headers
10-1 pin System Panel header
AURA RGB header
BIOS FlashBack button
Clear CMOS button(s)
SPI TPM header (14-1pin)

Uwagi do karty dźwiękowej

A chassis with an HD audio module in the front panel is required to
Audio Shielding
Dedicated audio PCB layers
Premium audio capacitors
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
support 7.1 Surround Sound audio output

Port LAN

1x 2,5 Gigabit LAN Realtek®

Uwagi do kontrolera SATA

- 4 x SATA 6Gb/s ports
- M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA mode
Intel Core Ultra Processors (series 2):
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10,
Intel® Z890 Chipset:
SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5

Uwagi do złącz PCI

(https://www.asus.com/support/FAQ/1037507/)
- 1 x PCIe 4.0 x16 slot (supports x1 mode)
- 1 x PCIe 5.0 x16 slot
- 2 x PCIe 4.0 x16 slots (support x4 mode)
Intel Core Ultra Processors (series 2):
Intel® Z890 Chipset:
Please check the PCIe bifurcation table on the support site
To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/download-center/

Uwagi do karty graficznej

Graphics specifications may vary between CPU types. Please refer to
Supports 4K@60Hz as specified in HDMI 2.1
Supports max. 4K@60Hz as specified in DisplayPort 1.4
Supports max. 4K@120Hz as specified in DisplayPort 1.4
VGA resolution support depends on processors' or graphic cards' resolution
www.intel.com for any updates.

Uwagi do procesora

Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
Refer to https://www.asus.com/support/download-center/ for CPU support list
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0

Uwagi do pamięci RAM

ASUS Enhanced Memory Profile III (AEMP III)
Supports DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
Support up to 7600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM

Zintegrowana karta dźwiękowa

Realtek ® 7.1 Surround Sound High Definition Audio CODEC

Gniazdo procesora

Socket 1851

Obsługiwane typy procesorów

Intel Core Ultra Processors (series 2)

BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS; WOL by PME, PXE

Standard pamięci

DDR5-7600+ (OC)

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2

Maksymalna ilość portów USB 3.x

9

Porty USB na panelu tylnym

4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 + 1x USB 3.2 Type-C

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.1 Type-C (1 port)

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin)

Wymiary [S x W] (mm)

305 x 244

Opakowanie

BOX
