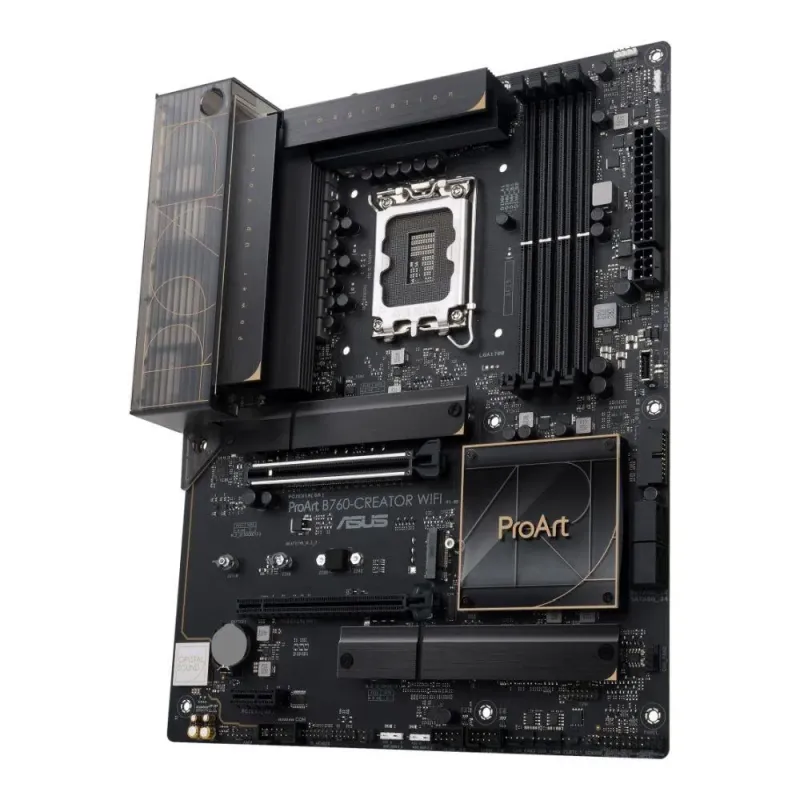

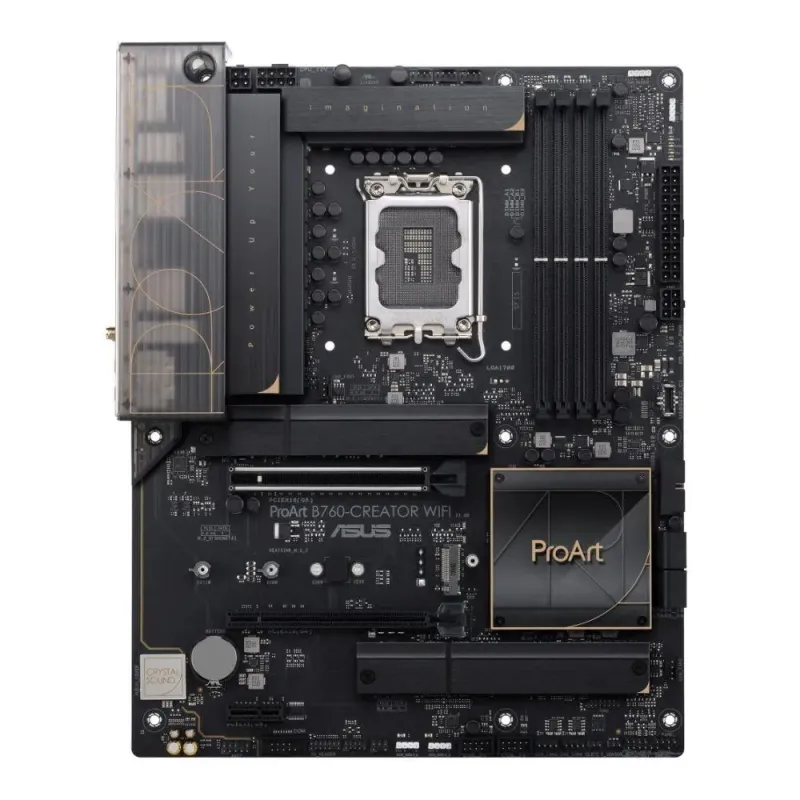

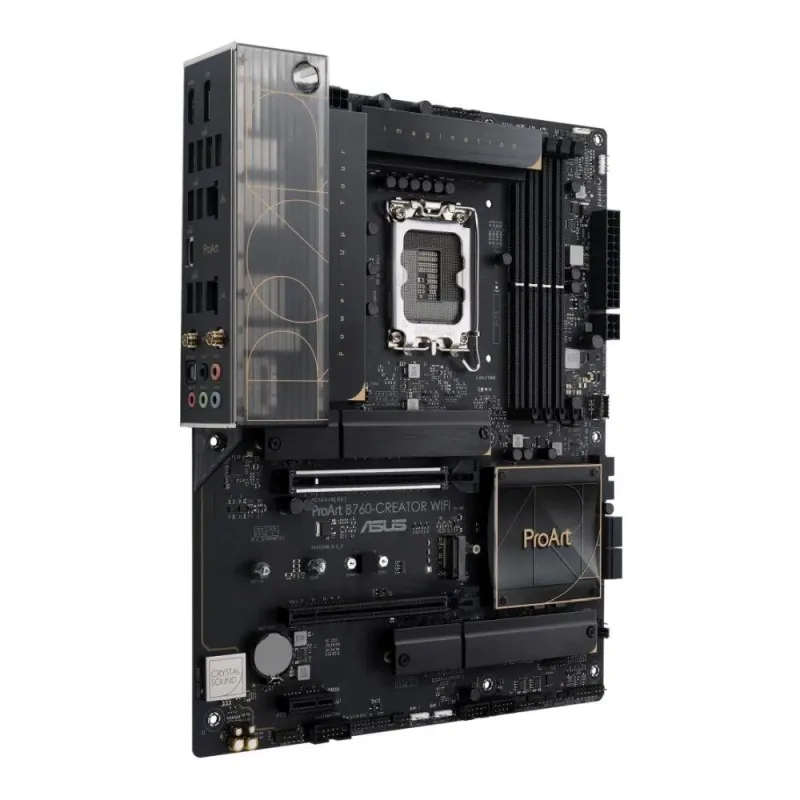

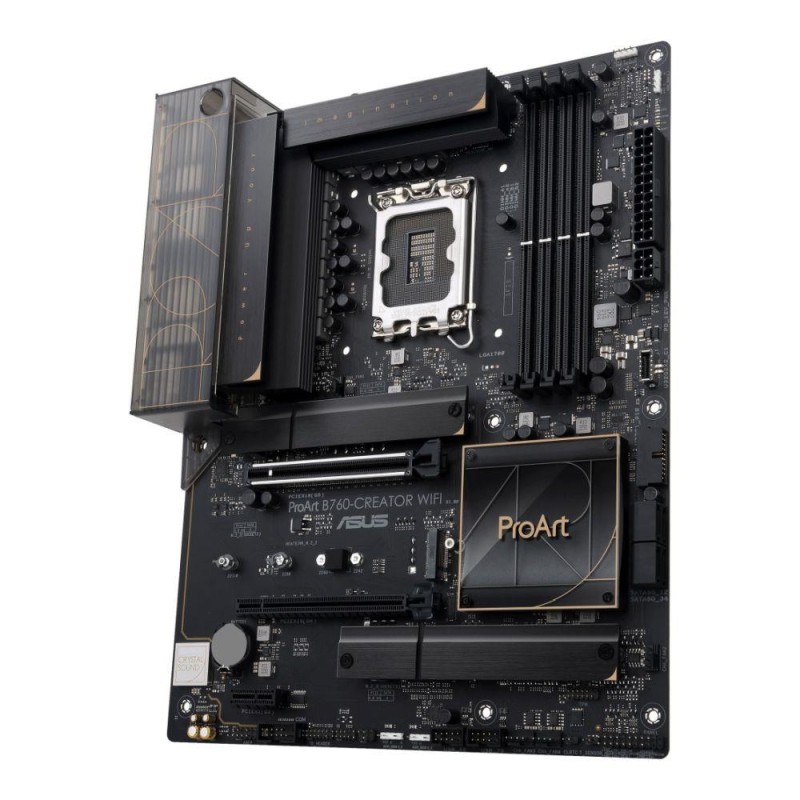

Płyta Asus ProArt B760-CREATOR WIFI

Opis

Gniazdo procesora

Socket 1700

Format płyty

ATX

Bios

128 Mb WOL by PME, PXE

Zawiera baterię / akumulator

Tak

Wyposażenie dodatkowe

1 x ACC Express Activation Key Card
1 x ASUS Wi-Fi moving antennas
1 x ProArt ruler
1 x Q-connector
1 x User guide
2 x M.2 Rubber Packages
2 x SATA 6Gb/s cables

Wymiary [S x W] (mm)

305 x 244

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.2

Maksymalna wielkość pamięci

192 GB

Port LAN

1x 1 Gigabit LAN Intel®
1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax

Chipset płyty głównej

Intel® B760

Wbudowana karta graficzna

Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora)

Obsługiwane typy procesorów

Intel Celeron™ (Socket 1700)
Intel Core i3 12th Generation
Intel Core i3 13th Generation
Intel Core i5 12th Generation
Intel Core i5 13th Generation
Intel Core i7 12th Generation
Intel Core i7 13th Generation
Intel Core i9 12th Generation
Intel Core i9 13th Generation
Intel Pentium™ (Socket 1700)

Uwagi do karty graficznej

Graphics specifications may vary between CPU types
Support max. 8K@60Hz as specified in DisplayPort 1.4
Supports 4K@60Hz as specified in HDMI 2.1

Uwagi do procesora

Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
Max Technology 3.0**
Supports Intel® 10 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

Non-ECC, Un-buffered Memory
OptiMem II
Supported memory types, data rate (speed), and number of DRAM modules
Supports Intel® Extreme Memory Profile (XMP)
please refer to CPU/Memory Support list under the Support tab of product
vary depending on the CPU and memory configuration, for more information

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2

Uwagi do kontrolera SATA

- 4 x SATA 6Gb/s ports
- M.2_1 slot (Key M), type 2242/2260/2280/22110
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® 13th & 12th Gen Processors:
Intel® B760 Chipset:
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
M.2_2 slot shares bandwidth with PCIe X1 and WiFi module and will run
PCIe 3.0 x2 by default. You need to set M.2_2 running at PCIe 3.0 x4 by
by manually enabled in BIOS

Gniazda karty graficznej

DisplayPort
HDMI

Zintegrowana karta dźwiękowa

Realtek ® 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękowej

5x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękowej

Audio Cover
Dedicated audio PCB layers
Premium audio capacitors
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Unique de-pop circuit

Złącza PCI Express x16

2

Złącza PCI Express x1

1

Uwagi do złącz PCI

- 1 x PCIe 3.0 x1 slot
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 5.0/4.0/3.0 x16 slot
Intel® 13th & 12th Gen Processors:
Intel® B760 Chipset:
PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2
runs at PCIe x4 mode by manually enabled

Maksymalna ilość portów USB 2.0

8

Maksymalna ilość portów USB 3.x

9

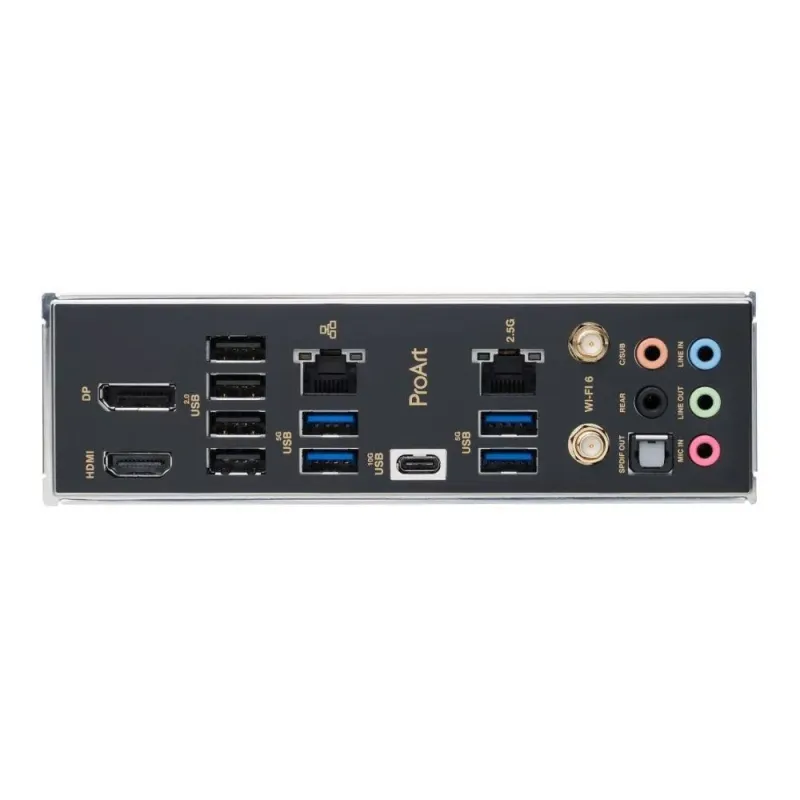

Porty USB na panelu tylnym

4x USB 2.0 + 4x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)

Port szeregowy (COM)

1x wewnętrzne gniazdo portu COM

Port równoległy (LPT)

Brak

Inne porty i gniazda

3x Addressable Gen 2 header
4-pin AIO Pump header
4-pin CPU Fan header
4-pin CPU OPT Fan header
4x 4-pin Chassis Fan headers
AURA RGB header
Clear CMOS header
SPI TPM header (14-1pin)
Thermal Sensor header
Thunderbolt header

Gniazdo zasilania

ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin) + PCIe (6-pin)

Ilość złącz pamięci DDR5

4
