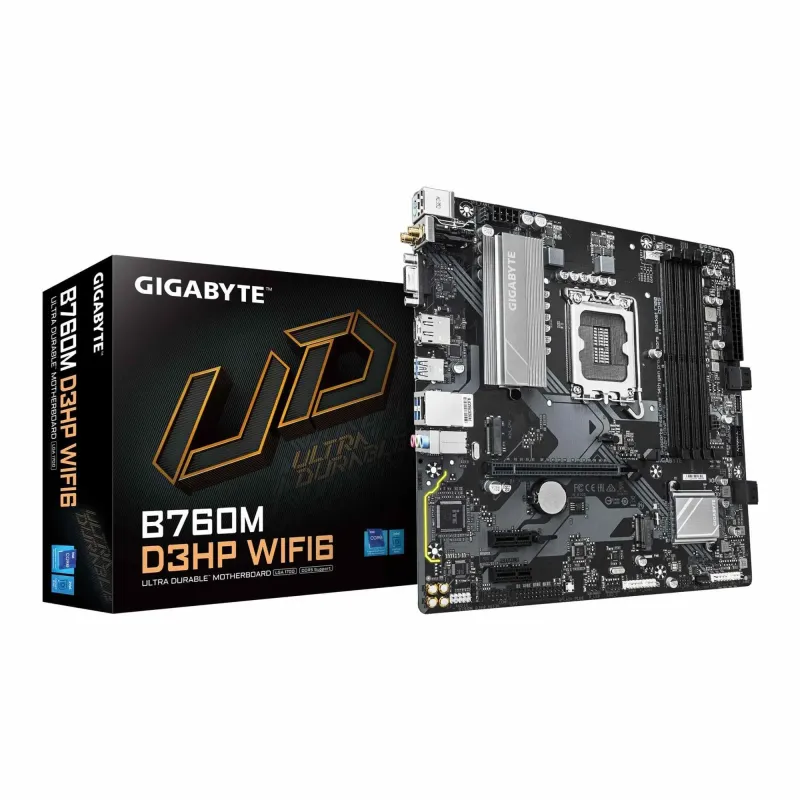

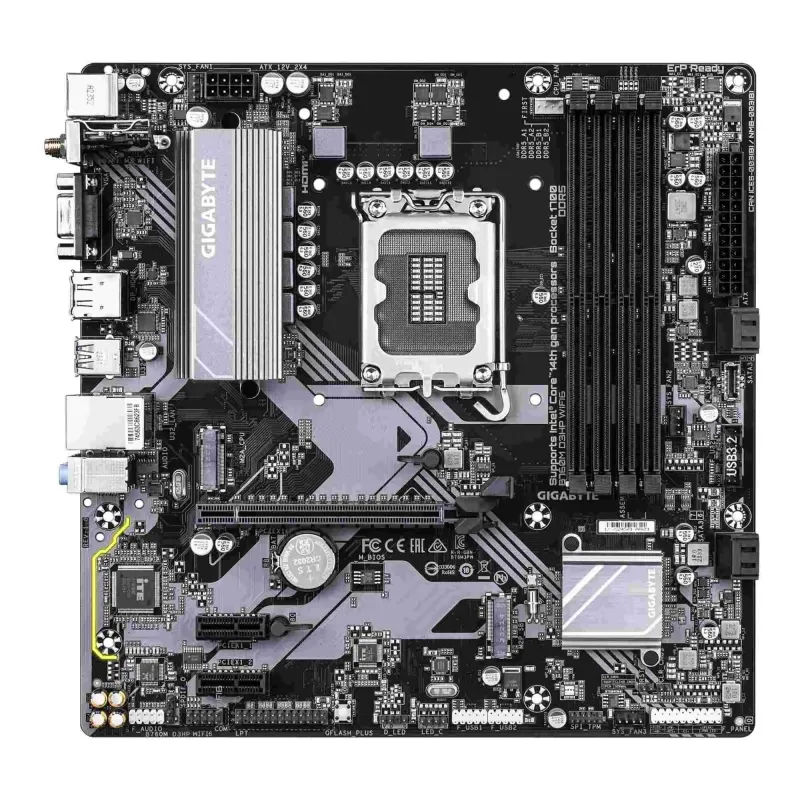

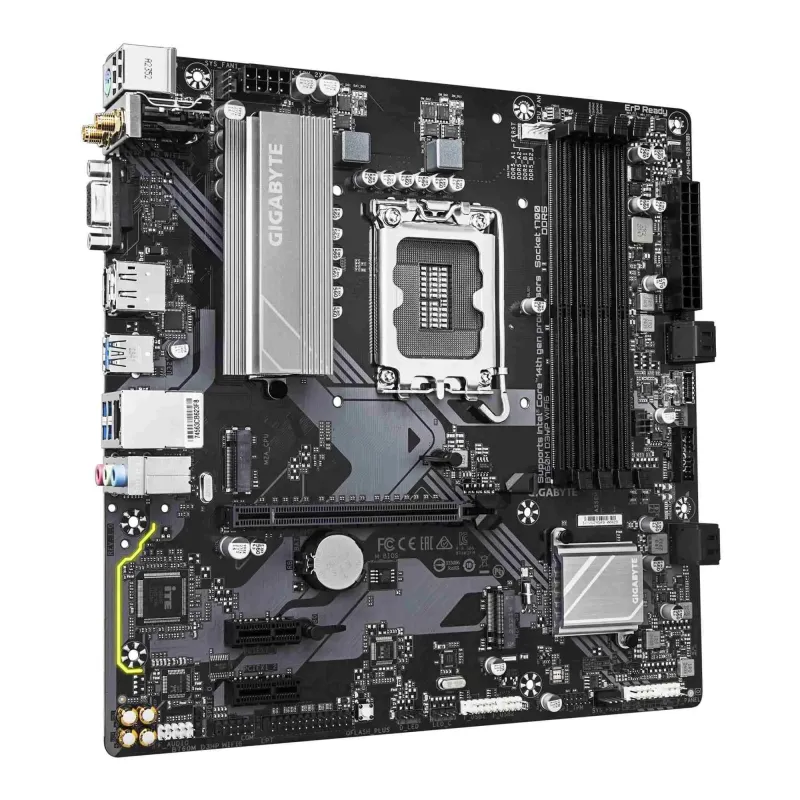

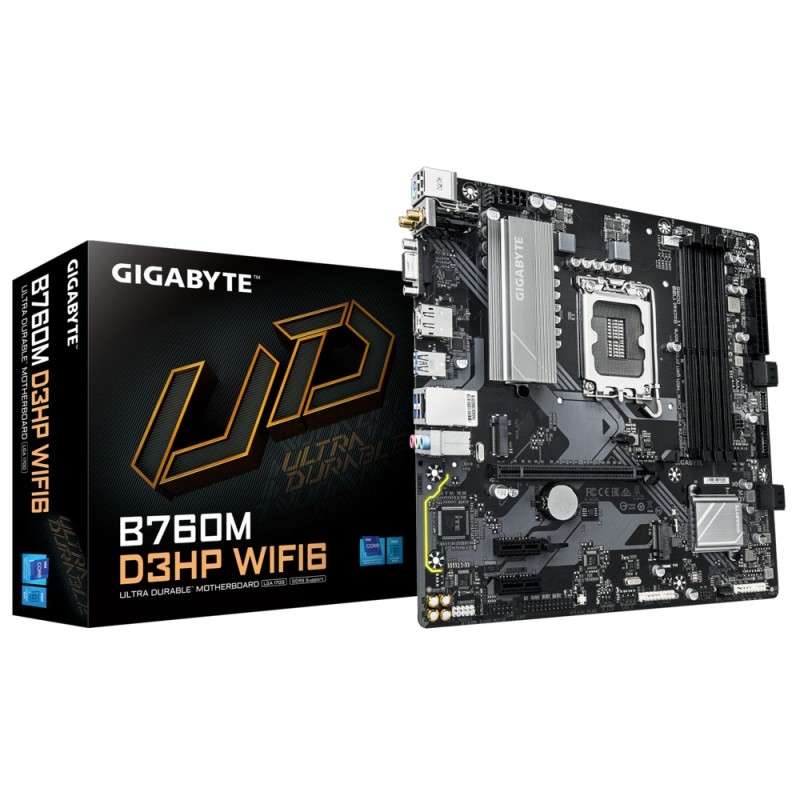

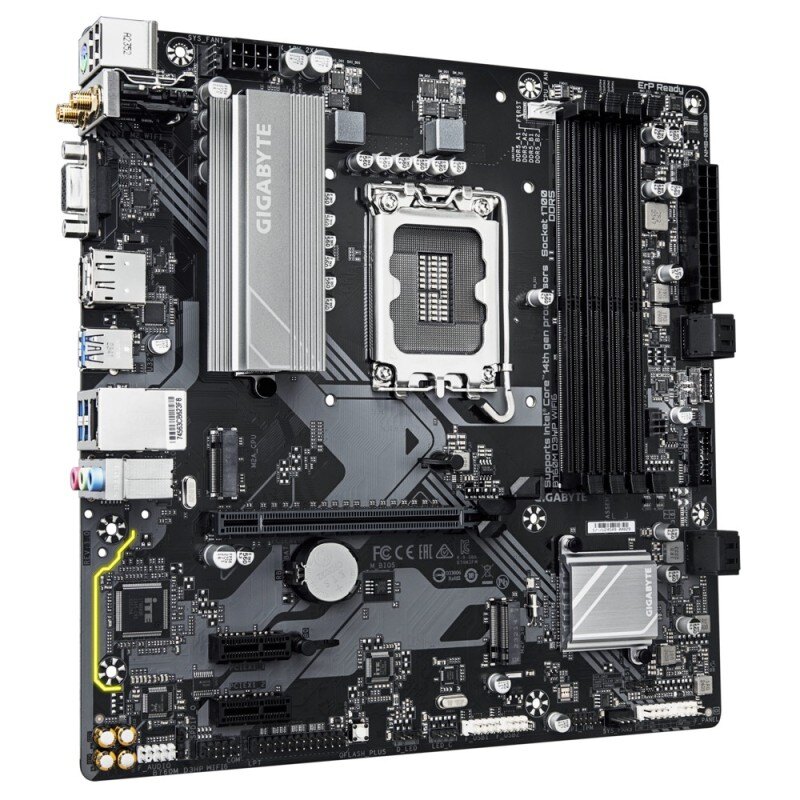

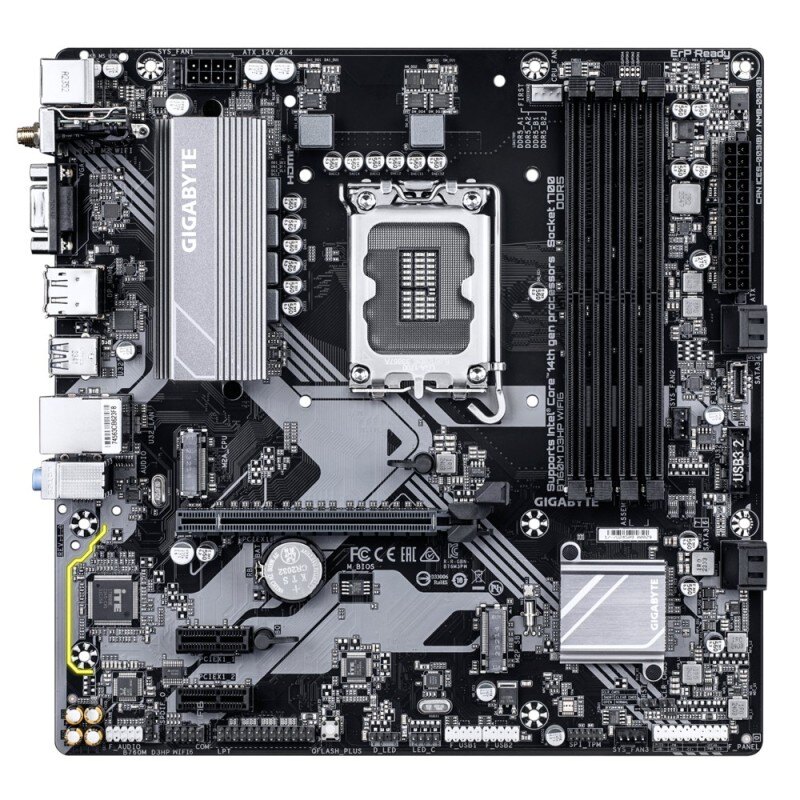

Płyta Gigabyte B760M D3HP WIFI6

Opis

Gniazdo procesora

Socket 1700

Format płyty

Micro-ATX

Bios

1 x 128 Mbit AMI UEFI BIOS PnP 1a, DMI 2.7, WfM 2, SM BIOS 2.7, ACPI 5

Zawiera baterię / akumulator

Tak

Wymiary [S x W] (mm)

244 x 174

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.2

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 1 Gigabit LAN Realtek®

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax

Chipset płyty głównej

Intel® B760

Wbudowana karta graficzna

Intel® HD Graphics

Obsługiwane typy procesorów

Intel Celeron™ (Socket 1700)
Intel Core i3 12th Generation
Intel Core i3 13th Generation
Intel Core i3 14th Generation
Intel Core i5 12th Generation
Intel Core i5 13th Generation
Intel Core i5 14th Generation
Intel Core i7 12th Generation
Intel Core i7 13th Generation
Intel Core i7 14th Generation
Intel Core i9 12th Generation
Intel Core i9 13th Generation
Intel Core i9 14th Generation
Intel Pentium™ (Socket 1700)

Standard pamięci

DDR5-4000
DDR5-4800
DDR5-5200
DDR5-5600

Uwagi do karty graficznej

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for DisplayPort 1.2 version and HDCP 2.3
Support for HDMI 2.1 version and HDCP 2.3.
Support for native HDMI 2.1 TMDS compatible ports.

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

(operate in non-ECC mode)
- Support for DDR5 4800/4400 MT/s memory modules
- Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel Core i5/i3 and 12th Generation Intel Core,
14th and 13th Generation Intel® Core™ i9/i7 Processors:
Pentium Gold and Celeron Processors:
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Zintegrowany kontroler SATA

Chipset: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 2x M.2

Uwagi do kontrolera SATA

(M2A_CPU)
(M2P_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
CPU:
Chipset:
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Gniazda karty graficznej

D-Sub
DisplayPort
HDMI

Zintegrowana karta dźwiękowa

Realtek ® 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękowej

3x Audio Jack
Wewnętrzne gniazdo S/PDIF Out
Wewnętrzne gniazdo audio przedniego panelu

Złącza PCI Express x16

1

Złącza PCI Express x1

2

Uwagi do złącz PCI

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
CPU:
Chipset:
The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Maksymalna ilość portów USB 2.0

6

Maksymalna ilość portów USB 3.x

6

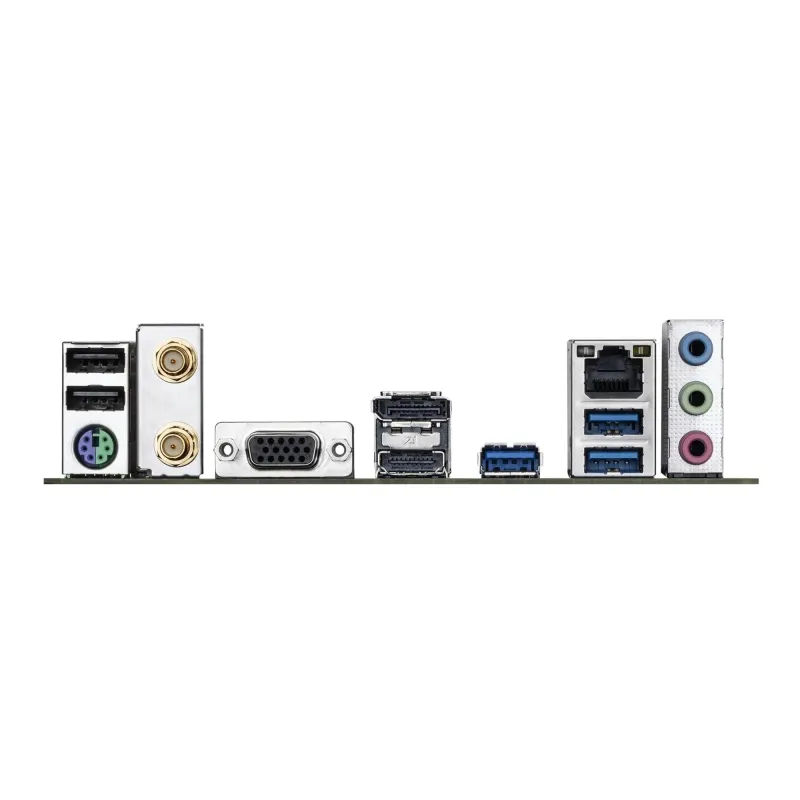

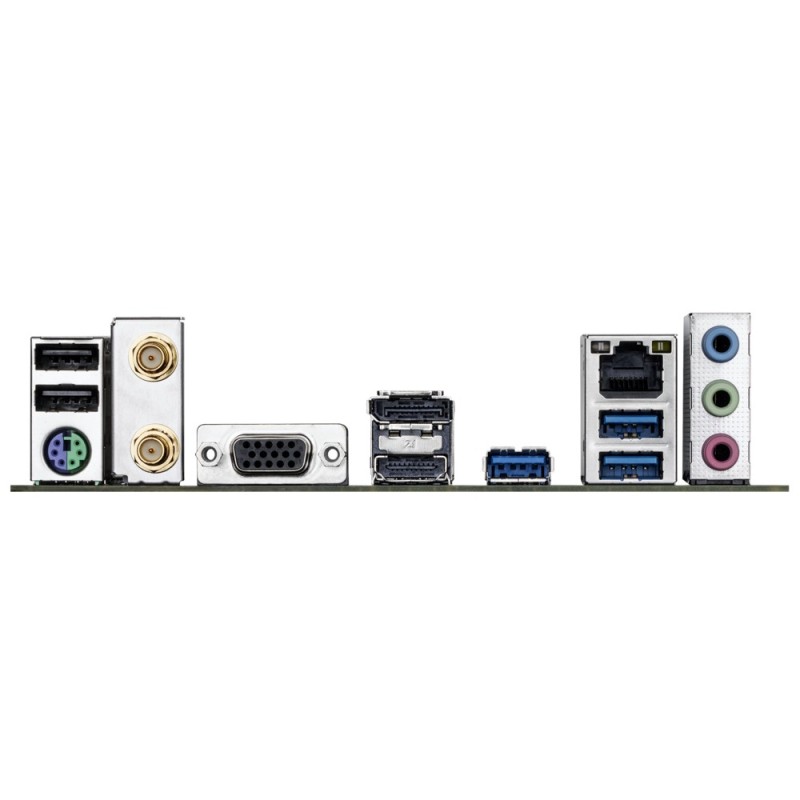

Porty USB na panelu tylnym

2x USB 2.0 + 3x USB 3.0

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.0 Type-C (1 port)

Port PS/2

Port combo klawiatury/myszy PS/2

Port szeregowy (COM)

1x wewnętrzne gniazdo portu COM

Port równoległy (LPT)

1x wewnętrzne gniazdo portu LPT

Inne porty i gniazda

2x SMA antenna connectors (1T1R)
3x system fan headers
Addressable LED strip headers
CPU fan header
Clear CMOS jumper
Front Panel Audio header (AAFP)
Front panel header
Q-Flash Plus button
RGB LED strip header
Reset jumper
Trusted Platform Module header

Gniazdo zasilania

ATX (24-pin) + ATX12V (8-pin)

Ilość złącz pamięci DDR5

4

Uwagi do WiFi / BT

Realtek Wi-Fi 6 RTL8851BE
Support for 11ax 80MHz wireless standard
