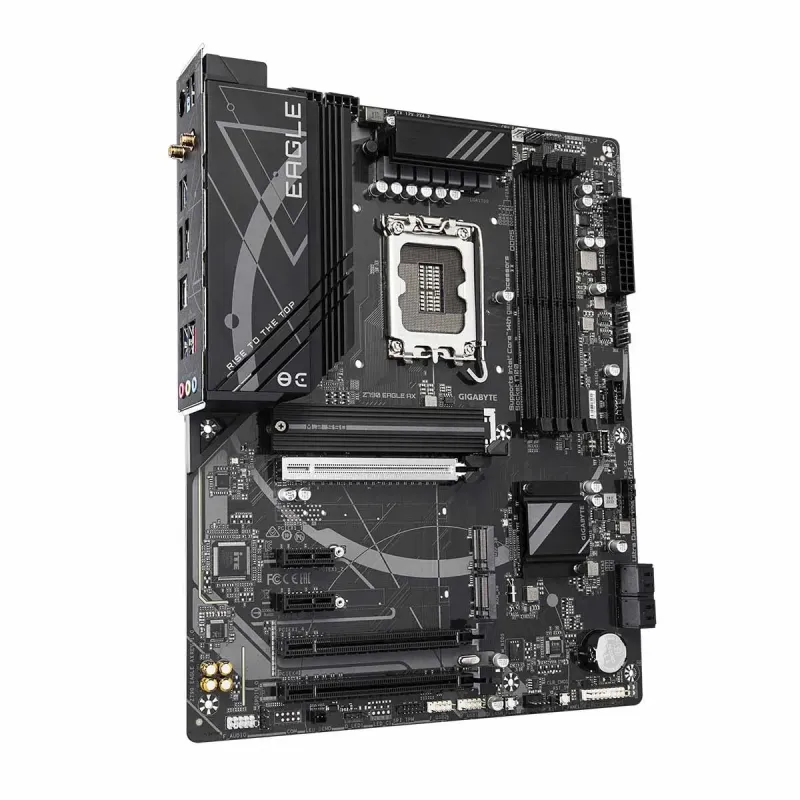

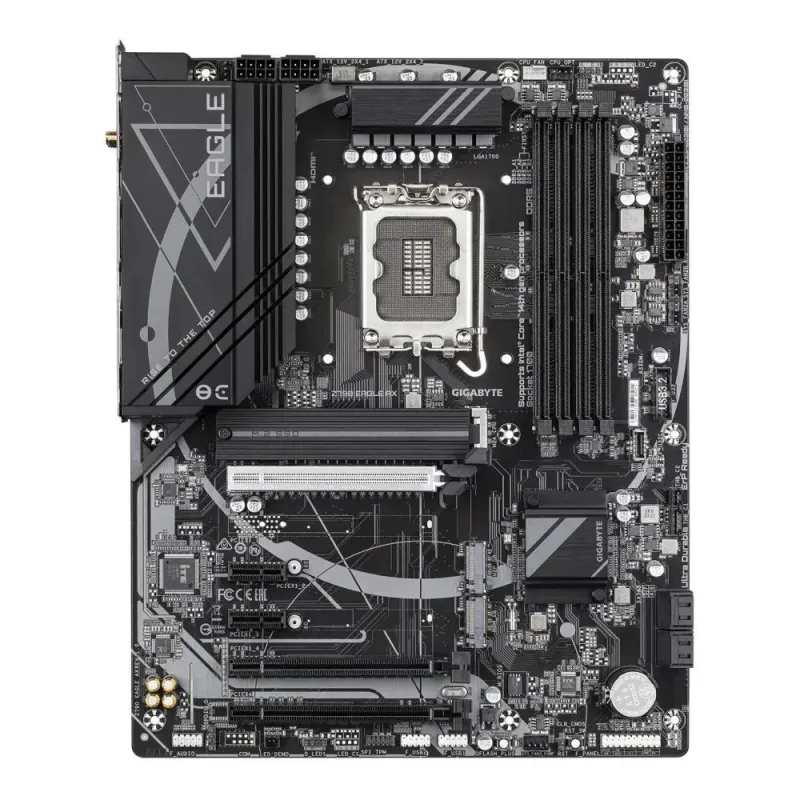

Płyta Gigabyte Z790 EAGLE AX

Opis

Gniazdo procesora

Socket 1700

Format płyty

ATX

Bios

1 x 256 Mbit AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5

Zawiera baterię / akumulator

Tak

Wymiary [S x W] (mm)

305 x 244

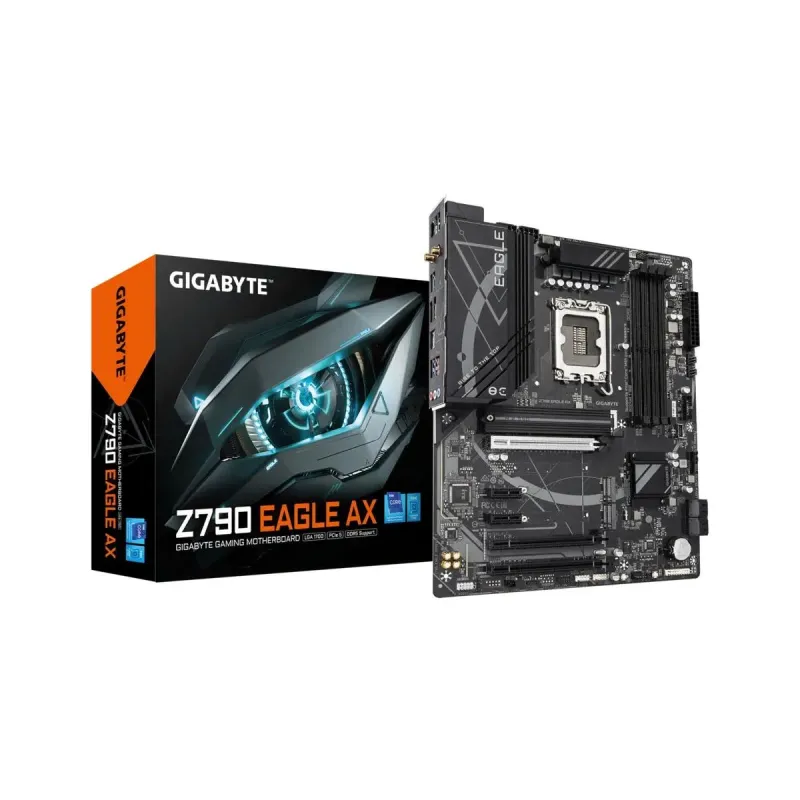

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.3

Maksymalna wielkość pamięci

192 GB

Port LAN

1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax

Chipset płyty głównej

Intel® Z790

Wbudowana karta graficzna

Intel® HD Graphics

Obsługiwane typy procesorów

Intel Celeron™ (Socket 1700)
Intel Core i3 12th Generation
Intel Core i3 13th Generation
Intel Core i3 14th Generation
Intel Core i5 12th Generation
Intel Core i5 13th Generation
Intel Core i5 14th Generation
Intel Core i7 12th Generation
Intel Core i7 13th Generation
Intel Core i7 14th Generation
Intel Core i9 12th Generation
Intel Core i9 13th Generation
Intel Core i9 14th Generation
Intel Pentium™ (Socket 1700)

Standard pamięci

DDR5-4400
DDR5-4800
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-5800 (OC)
DDR5-6000 (OC)
DDR5-6200 (OC)
DDR5-6400 (OC)
DDR5-6600 (OC)
DDR5-6800 (OC)
DDR5-7000 (OC)
DDR5-7200 (OC)
DDR5-7400 (OC)
DDR5-7600 (OC)

Uwagi do karty graficznej

- Support for DisplayPort 1.2 version and HDCP 2.3
- Support for HDMI 2.1 version and HDCP 2.3
- Support for native HDMI 2.1 TMDS compatible ports
1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics specifications may vary depending on CPU support

Uwagi do procesora

Please refer to "CPU Support List" for more information

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

(operate in non-ECC mode)
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2

Uwagi do kontrolera SATA

- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD
- 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD
- 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2
- 4 x SATA 6Gb/s connectors
CPU:
Chipset:
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
SSD support) (M2M_SB)
support) (M2A_CPU)
support) (M2P_SB)

Gniazda karty graficznej

DisplayPort
HDMI

Zintegrowana karta dźwiękowa

Realtek ® 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękowej

3x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Złącza PCI Express x16

3

Złącza PCI Express x1

2

Uwagi do złącz PCI

(PCIEX1_2, PCIEX1_3)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
CPU:
Chipset:

Maksymalna ilość portów USB 2.0

6

Maksymalna ilość portów USB 3.x

9

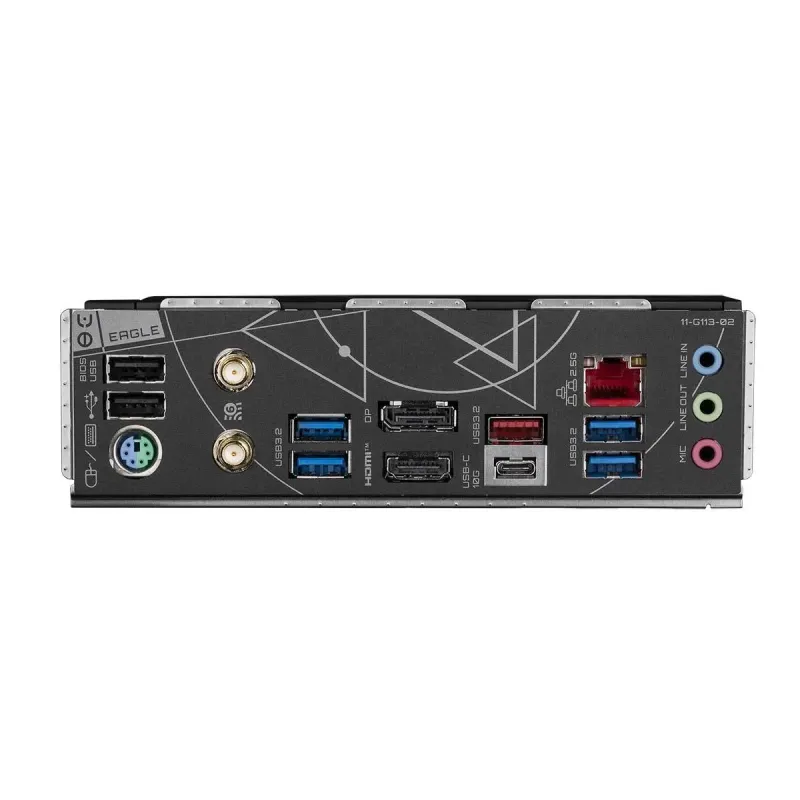

Porty USB na panelu tylnym

2x USB 2.0 + 4x USB 3.0 + 1x USB 3.1 + 1x USB 3.2 Type-C

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)

Port PS/2

Port combo klawiatury/myszy PS/2

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Inne porty i gniazda

2x Addressable LED strip headers
2x Thunderbolt™ add-in card connectors
3x system fan headers
CPU fan/water cooling pump header
CPU fan header
Clear CMOS jumper
Front panel header
Gniazdo modułu TPM
Przycisk Reset
Q-Flash Plus button
System fan/water cooling pump header

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin)

Ilość złącz pamięci DDR5

4

Uwagi do WiFi / BT

Actual data rate may vary depending on environment and equipment
Support for 11ax 160MHz wireless standard
