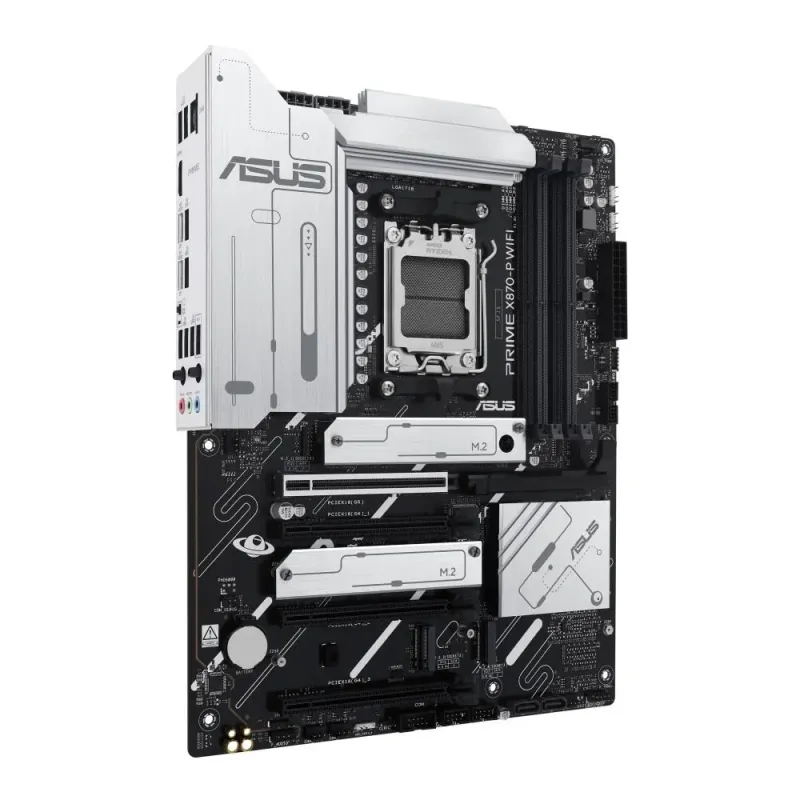

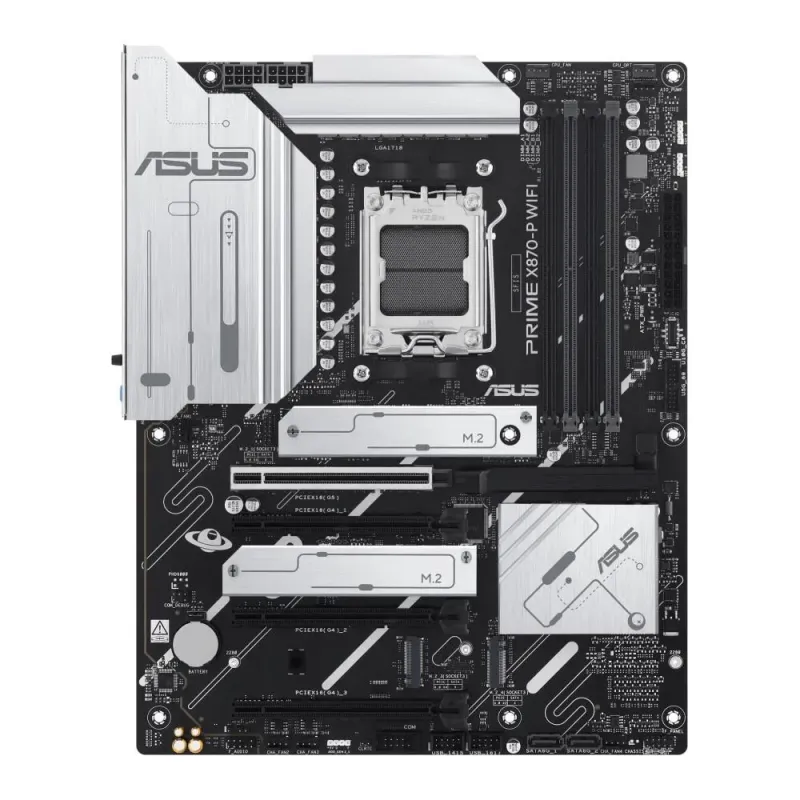

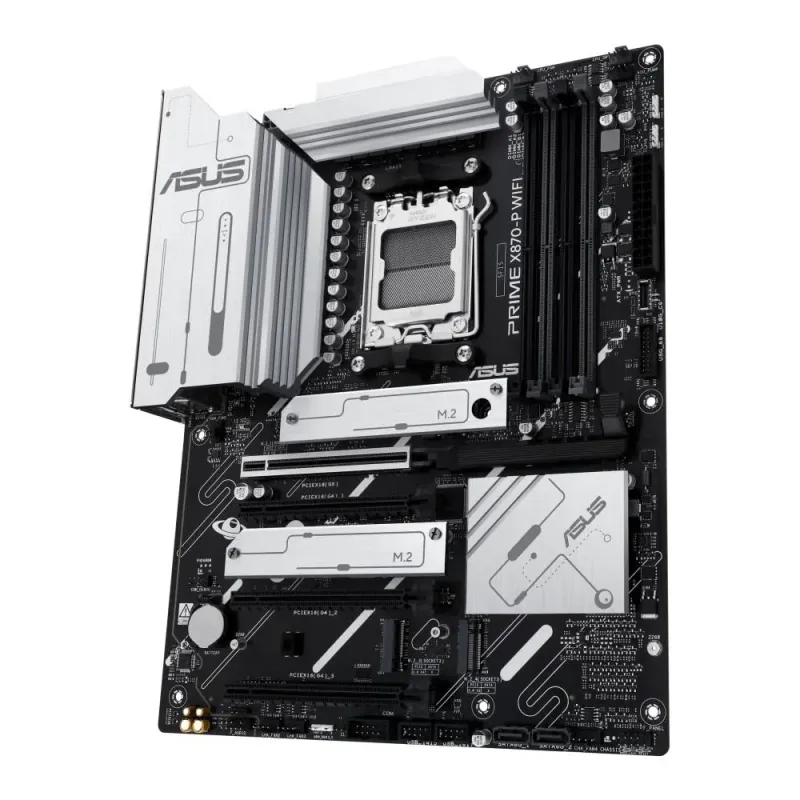

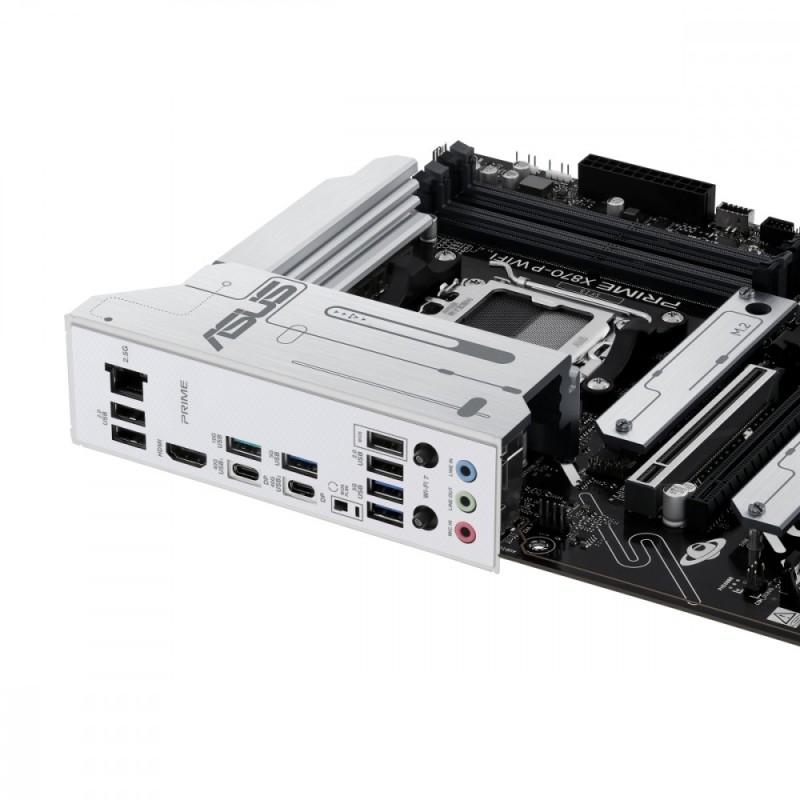

Płyta Asus PRIME X870-P WIFI /AMD

Opis

Gniazdo procesora

Socket AM5

Format płyty

ATX

Bios

Zawiera baterię / akumulator

Tak

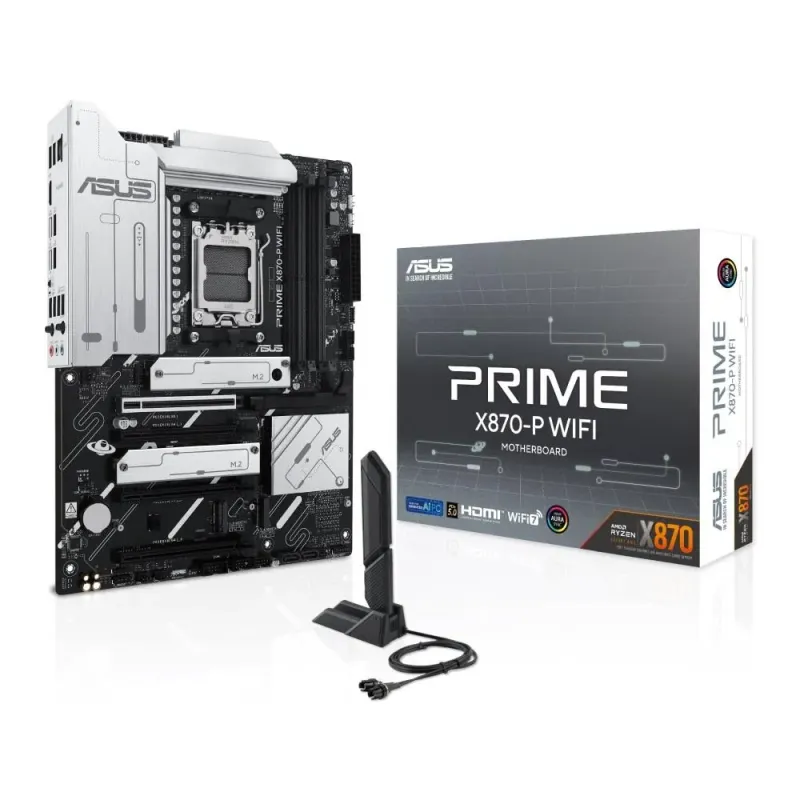

Wyposażenie dodatkowe

1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
1 x Quick start guide
2 x SATA 6Gb/s cables
2 x Screw packages for M.2 SSD

Wymiary [S x W] (mm)

305 x 244

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

192 GB

Port LAN

1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

AMD X870

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™ (AM5)

Uwagi do karty graficznej

AMD CPU specifications
Graphics specifications may vary between CPU types. Please refer to
Supports 4K@60Hz as specified in HDMI 2.1
Supports max. 4K@60Hz as specified in DisplayPort 1.4a

Uwagi do procesora

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

ASUS Enhanced Memory Profile (AEMP)
ECC and Non-ECC, Un-buffered DIMM*
Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Supported memory types, data rate (speed), and number of DRAM modules vary
Supports AMD EXTended Profiles for Overclocking (EXPO™)
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processo
depending on the CPU and memory configuration, for more information please
refer to CPU/Memory Support list under the Support tab of product

Zintegrowany kontroler SATA

Chipset+CPU: 2x SATA III 6Gb/s + 4x M.2

Uwagi do kontrolera SATA

- M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and
AMD Ryzen™ 8000 Series Desktop Processors:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
AMD X870 Chipset:
M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled
PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled
PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2
SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series
and PCIEX16(G4)_3 will be disabled when M.2_3 runs
when M.2_2 runs
when SATA6G_1 or SATA6G_2 runs.

Gniazda karty graficznej

2x USB4 Type-C
HDMI

Zintegrowana karta dźwiękowa

Realtek ® 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękowej

3x Audio Jack
Wewnętrzne gniazdo S/PDIF Out
Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękowej

A chassis with an HD audio module in the front panel is required to
Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback"
support 7.1 Surround Sound audio output

Złącza PCI Express x16

4

Uwagi do złącz PCI

- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
- 3 x PCIe 4.0 x16 slots (support x1 mode)
AMD Ryzen™ 8000 Series Desktop Processors:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
AMD X870 Chipset:
M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs
PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabl
PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with
Please check the PCIe bifurcation table on the support site
Specifications vary by CPU types
disabled when M.2_2 runs

Uwagi do karty sieciowej

ASUS LANGuard

Maksymalna ilość portów USB 2.0

6

Maksymalna ilość portów USB 3.x

7

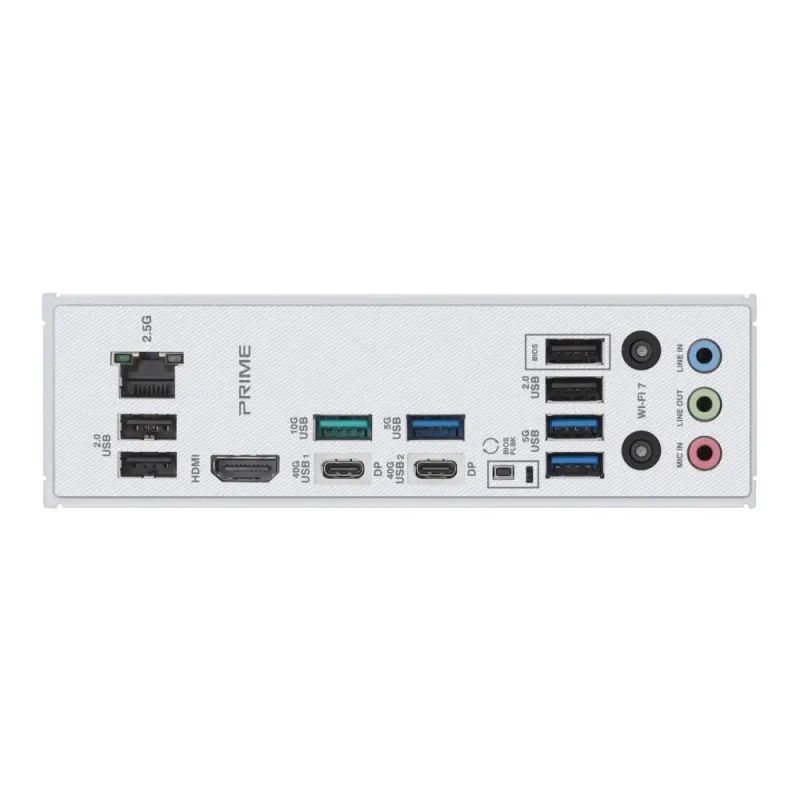

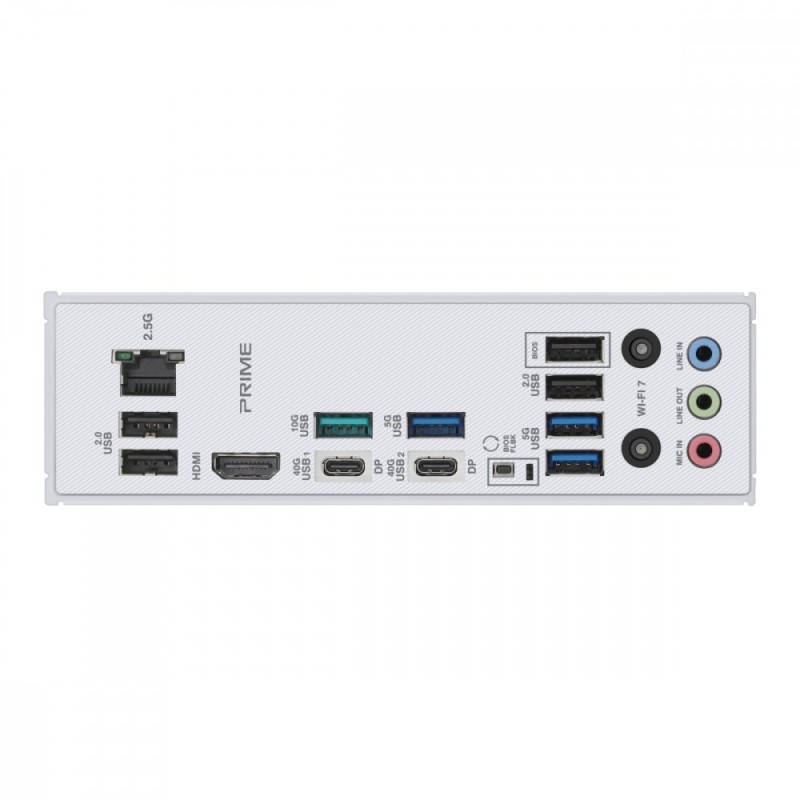

Porty USB na panelu tylnym

4x USB 2.0 + 3x USB 3.1 + 1x USB 3.1 + 2x USB4 Type-C

Gniazda USB na płycie głównej

2x USB 2.0 (2 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)

Port PS/2

Port combo klawiatury/myszy PS/2

Port szeregowy (COM)

1x wewnętrzne gniazdo portu COM

Port równoległy (LPT)

Brak

Inne porty i gniazda

3x Addressable RGB Gen2 LED connector
4-pin AIO Pump header
4-pin CPU Fan header
4-pin CPU OPT Fan header
4x 4-pin Chassis Fan headers
10-1 pin System Panel header
Clear CMOS header
SPI TPM header (14-1pin)

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin)

Ilość złącz pamięci DDR5

4

Maksymalna ilość portów USB 4.0

2

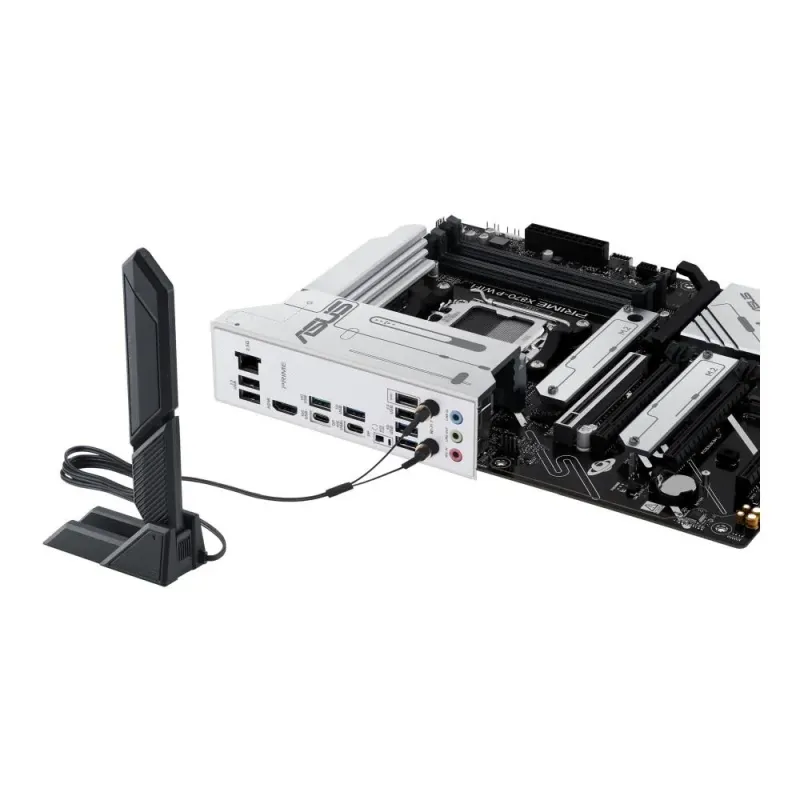

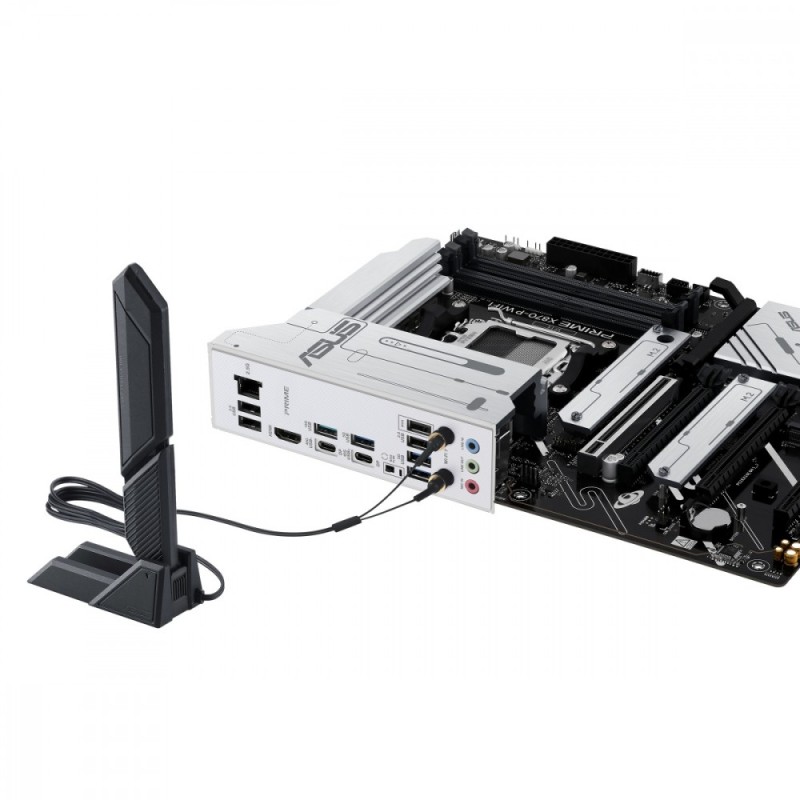

Uwagi do WiFi / BT

2x2 Wi-Fi 7 (802.11be)
For Windows 10, please note that no driver is available , please refer to
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
The Bluetooth version may vary, please refer to the Wi-Fi module
Wi-Fi features may vary depending on the operating system
functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E
manufacturer's website for the latest specifications
the Wi-Fi chipset vendor's website for details
