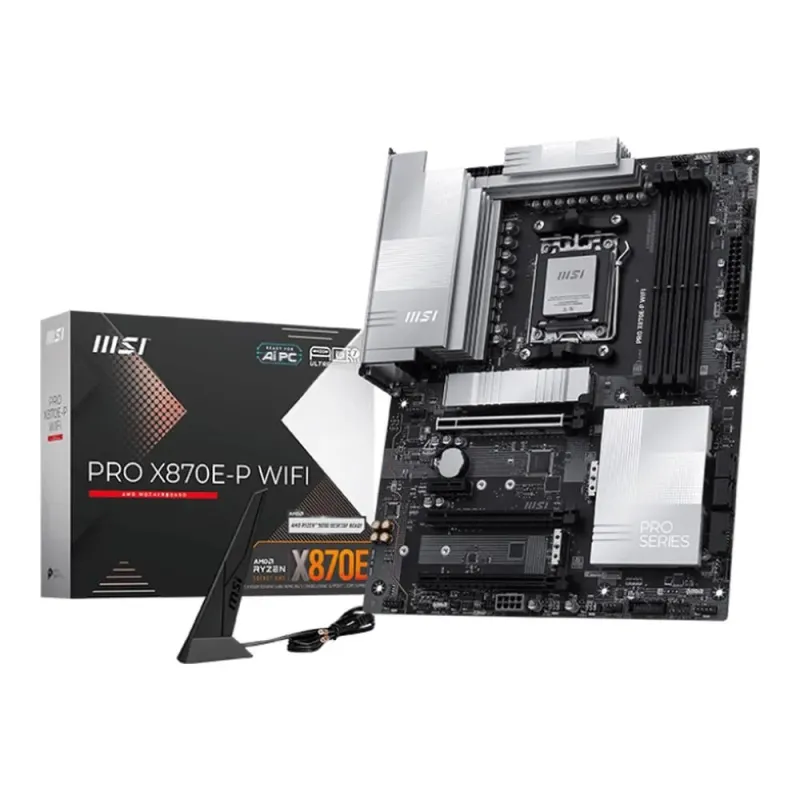

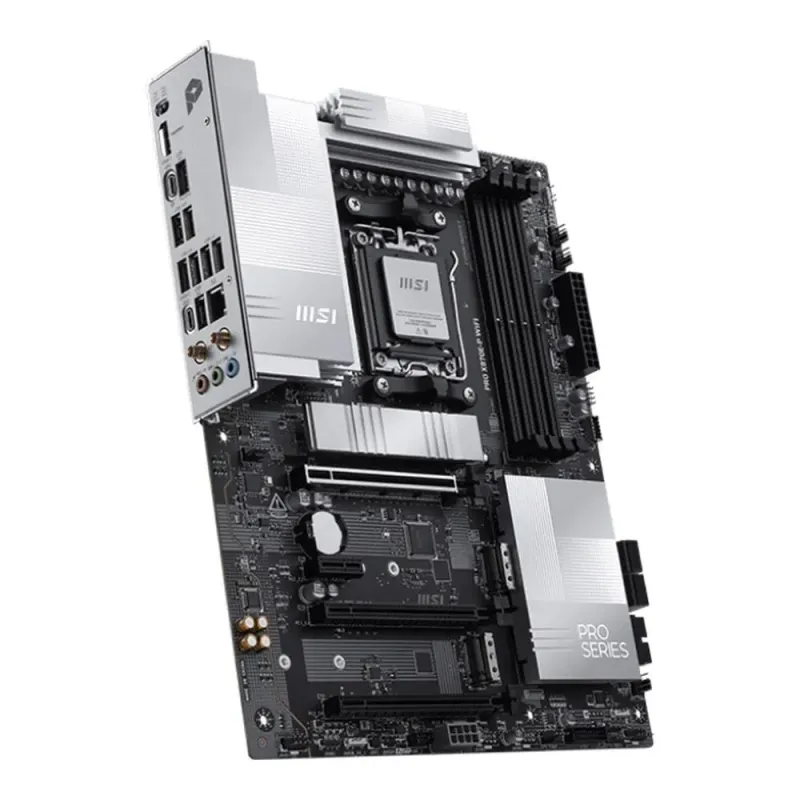

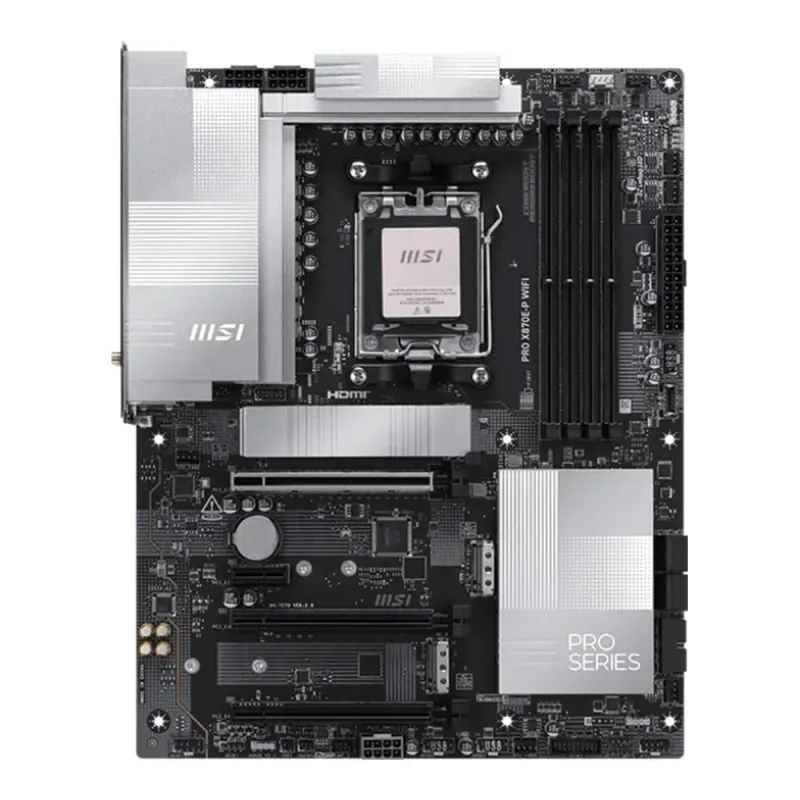

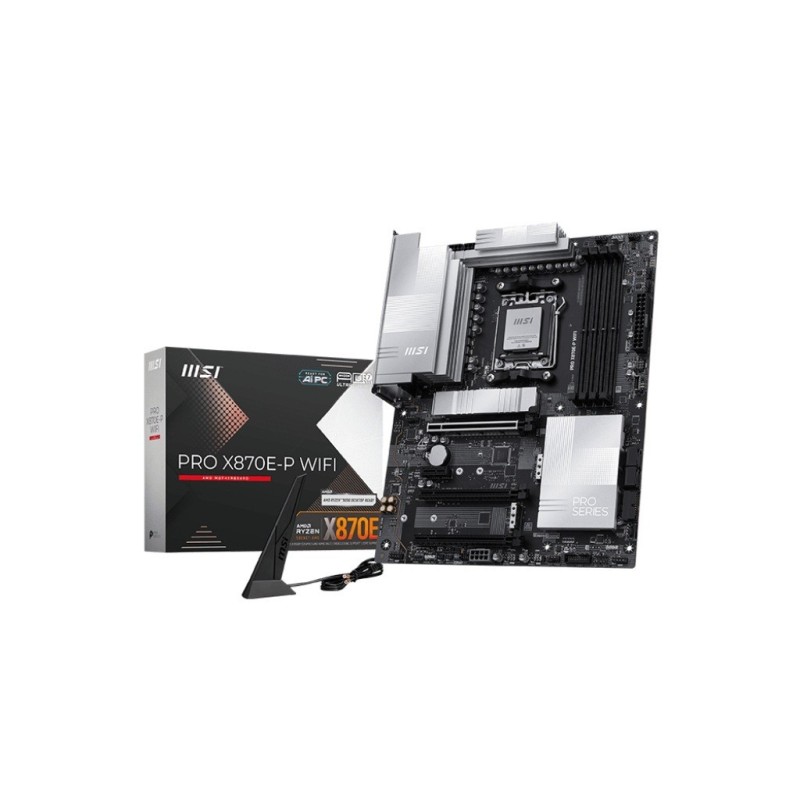

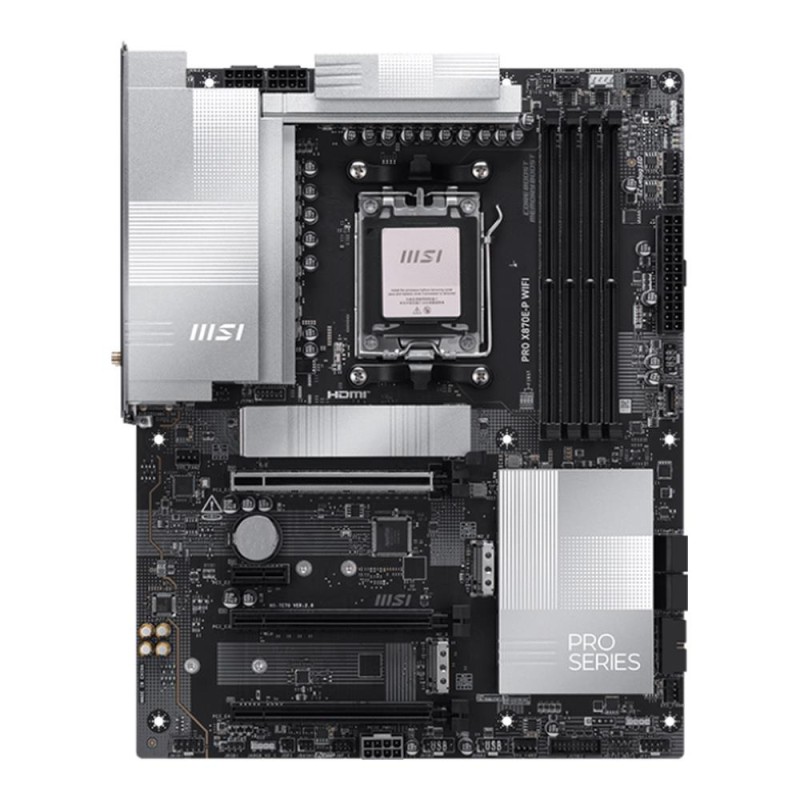

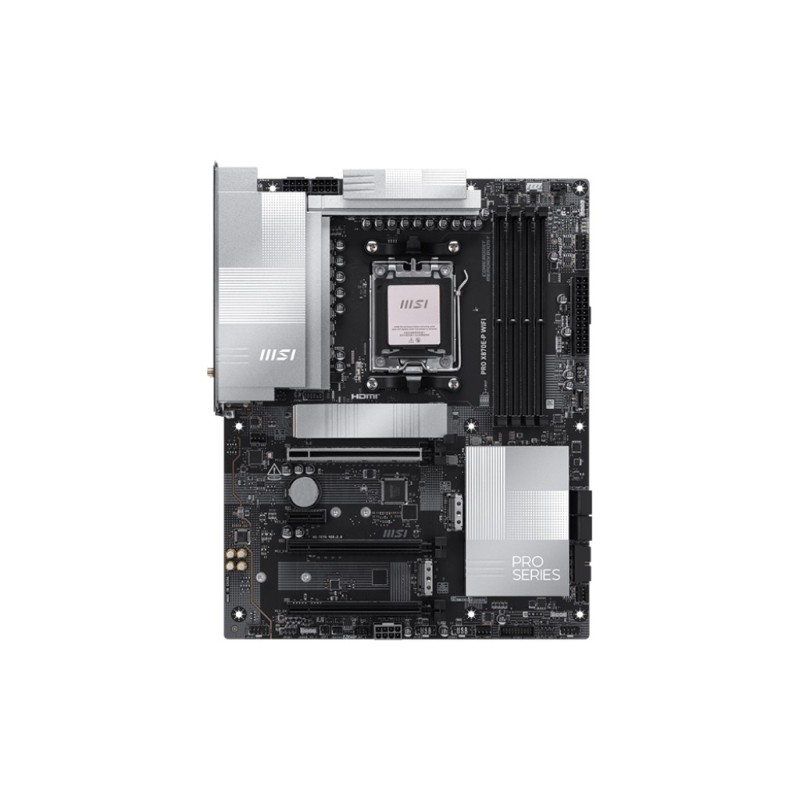

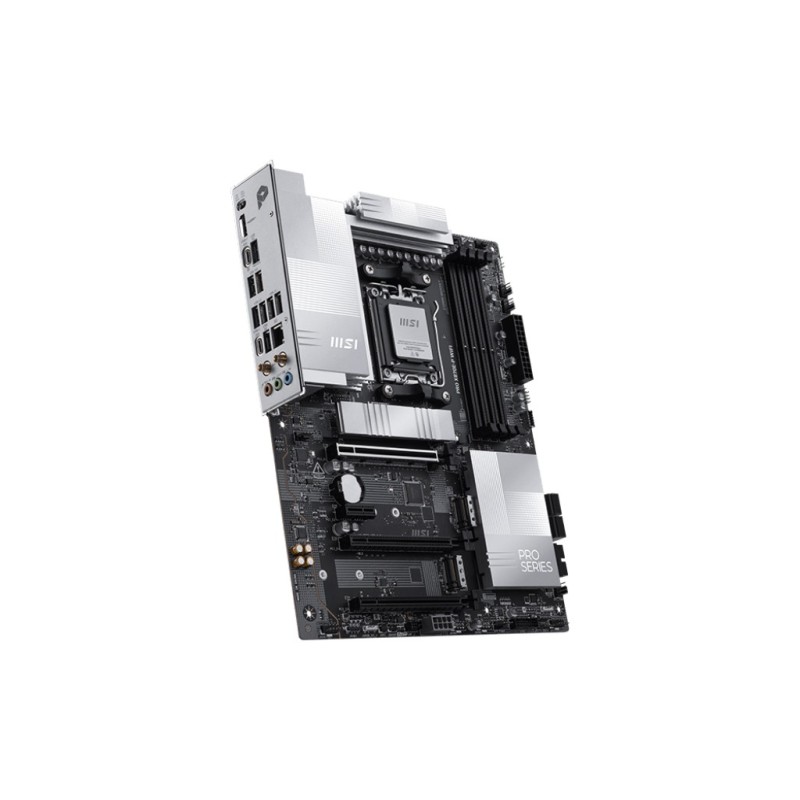

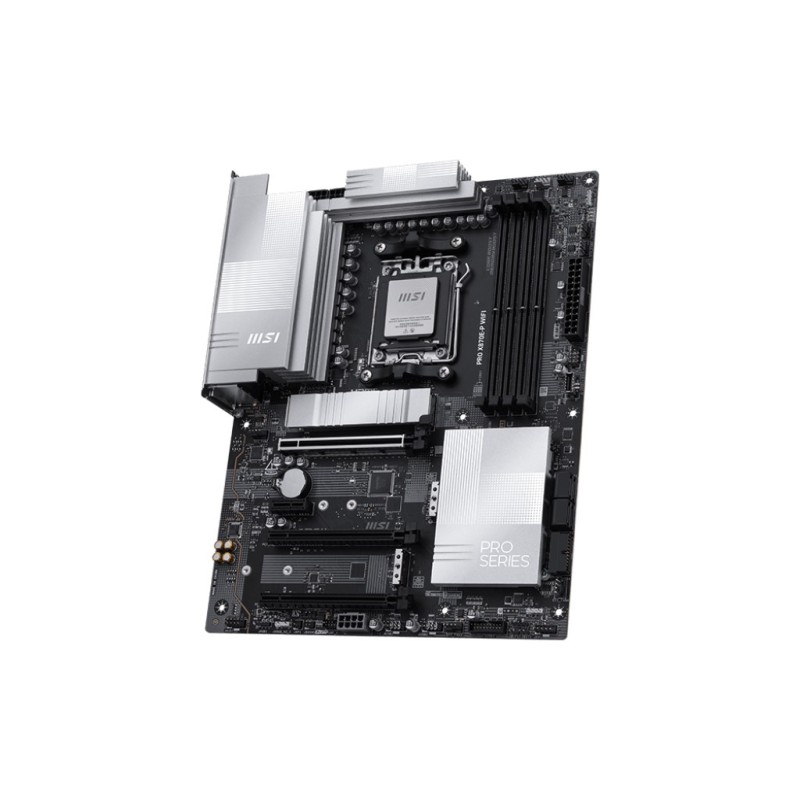

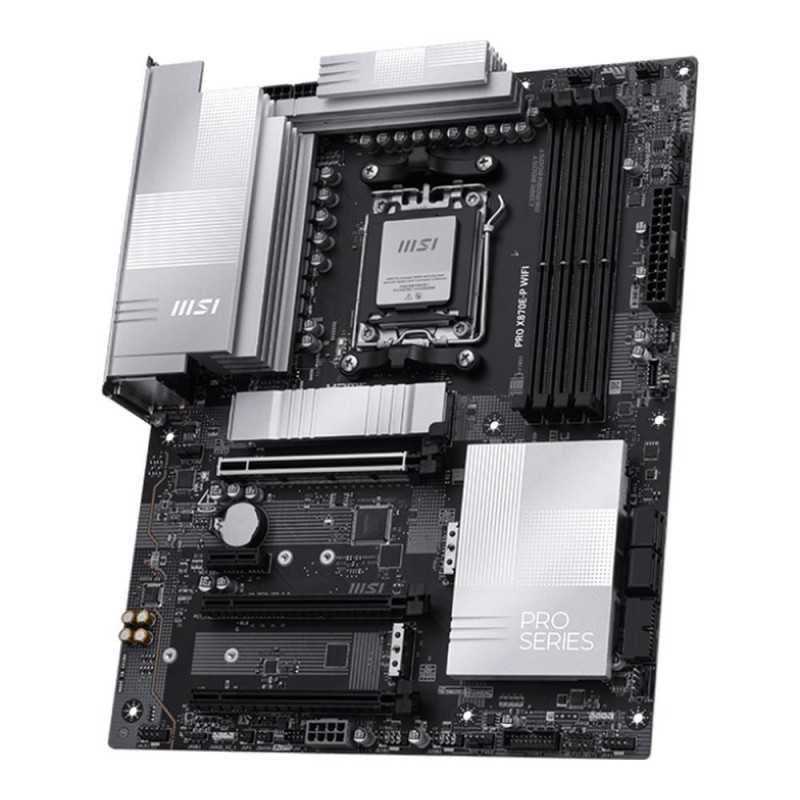

Płyta MSI PRO X870E-P WIFI /AMD

Opis

Gniazdo procesora

Socket AM5

Format płyty

ATX

Zawiera baterię / akumulator

Tak

Wyposażenie dodatkowe

1x to 2 EZ Conn-Cable (V1)
2x SATA Cables
3x EZ M.2 Clip II
EZ M.2 Clip II Removal
EZ Wi-Fi antenna

Wymiary [S x W] (mm)

243,84 x 304,8

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 5 Gigabit LAN Realtek® 8126VB

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

AMD X870

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™ (AM5)

Standard pamięci

DDR5-4800
DDR5-5000
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-5600 (OC)
DDR5-5800 (OC)
DDR5-6000 (OC)
DDR5-6200 (OC)
DDR5-6400 (OC)
DDR5-6600 (OC)
DDR5-6800 (OC)
DDR5-7000 (OC)
DDR5-7200 (OC)
DDR5-7400 (OC)
DDR5-7600 (OC)
DDR5-7800 (OC)
DDR5-8000 (OC)
DDR5-8200 (OC)

Uwagi do karty graficznej

Available only on processors featuring integrated graphics
Graphics specifications may vary depending on the CPU installed.
Support HDMI 2.1, maximum resolution of 4K 60Hz
USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C

Uwagi do procesora

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

- 1DPC 1R Max speed up to 8200+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 4800+ MT/s
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
Supports AMD POR Speed and JEDEC Speed
Supports CUDIMM, Clock Driver bypass mode only
Supports Memory Overclocking and AMD EXPO
Supports Non-ECC, Un-buffered Memory

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 3x M.2 - RAID 0, 1, 5

Uwagi do kontrolera SATA

- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 ,
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 ,
Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
supports 2280/2260 devices
supports 22110/2280 devices

Gniazda karty graficznej

HDMI
USB Type-C

Zintegrowana karta dźwiękowa

Realtek® ALC897 7.1-Channel High Definition Audio

Gniazda karty dźwiękowej

3x Audio Jack

Złącza PCI Express x16

3

Złącza PCI Express x1

1

Uwagi do złącz PCI

- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
- Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
- Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
3x PCI-E x16 slot (Qty), 1x PCI-E x1 slot (Qty):
PCI_E1 slot:

Maksymalna ilość portów USB 2.0

10

Maksymalna ilość portów USB 3.x

10

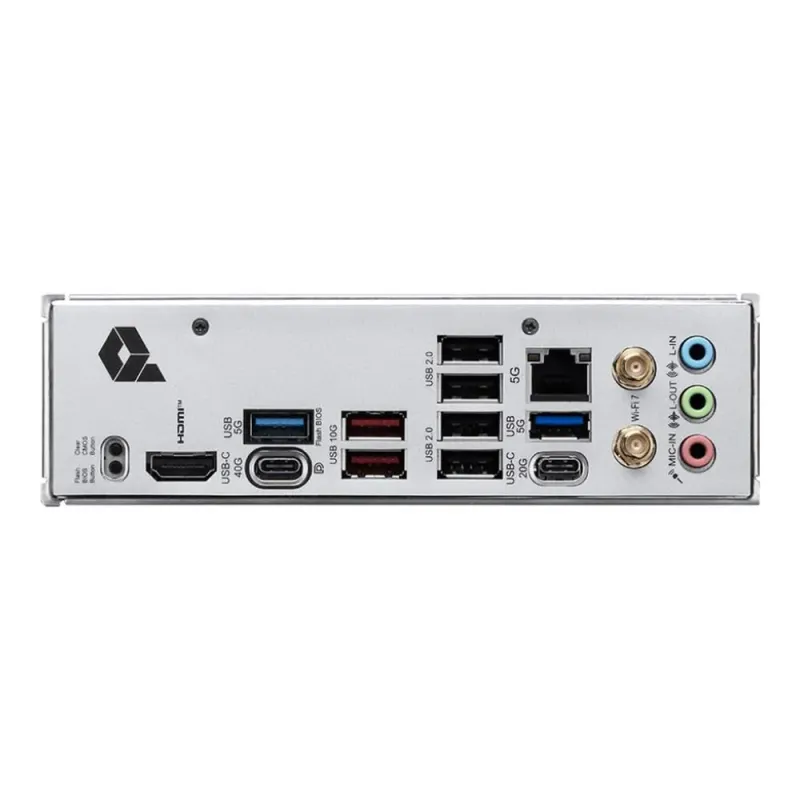

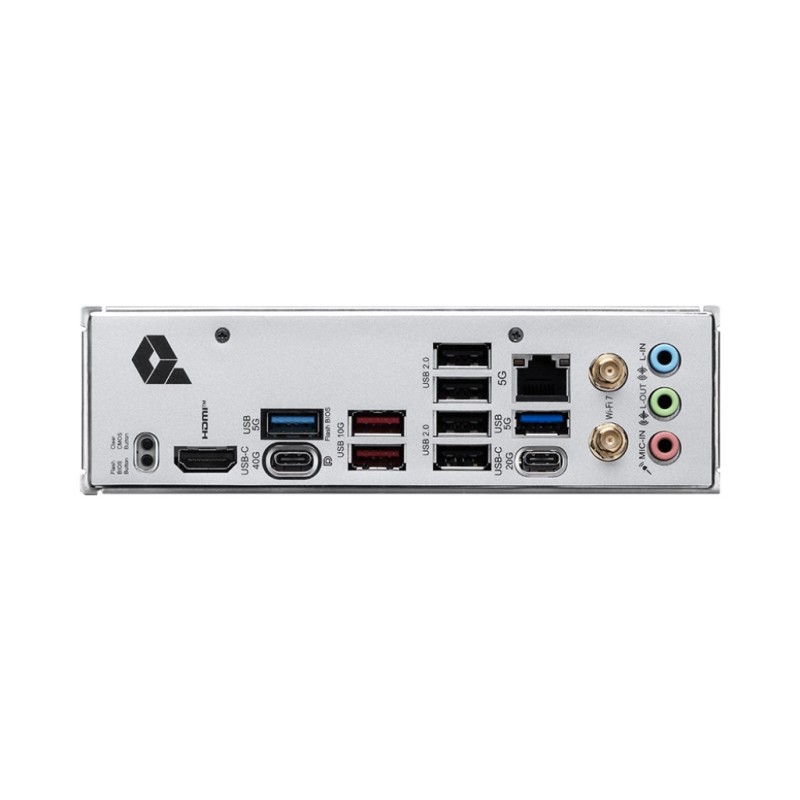

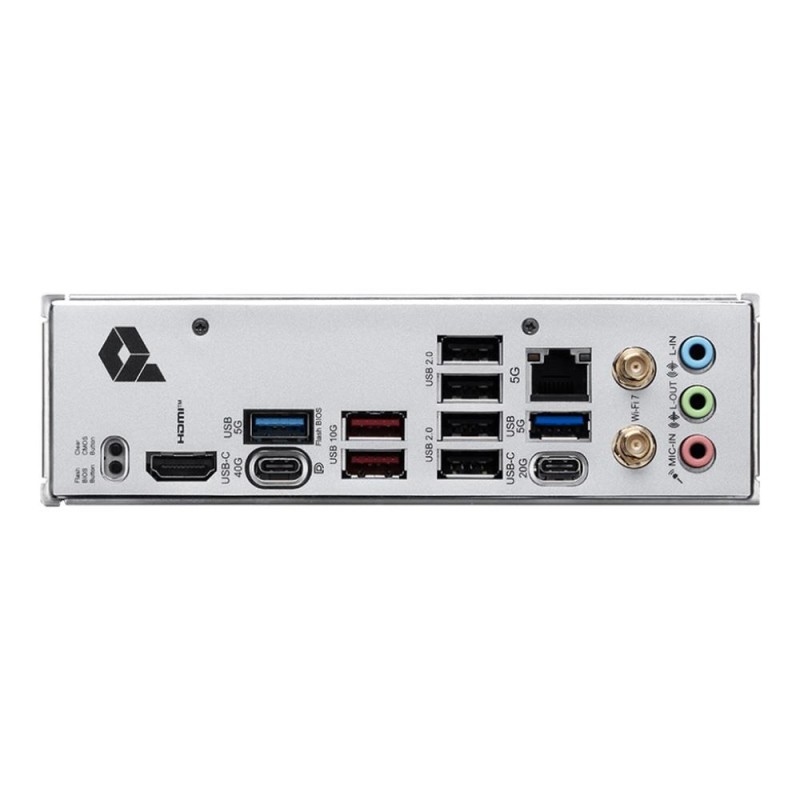

Porty USB na panelu tylnym

4x USB 2.0 + 2x USB 3.0 + 2x USB 3.1 + 1x USB 3.2 Type-C + 1x USB4 Type-C

Gniazda USB na płycie głównej

3x USB 2.0 (6 portów) + 2x USB 3.0 (4 porty) + 1x USB 3.1 Type-C (1 port)

Port PS/2

Brak

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Inne porty i gniazda

2x Antenna Ports
2x Front Panel
3x Addressable V2 RGB LED connector
6x System Fan
ARGB+FAN Header
CPU Fan
Chassis Intrusion (JCI)
Clear CMOS button(s)
Combo Fan (Pump_Sys Fan)
Flash BIOS Button
Gniazdo modułu TPM
RGB LED connector
Tuning Controller Connector

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)

Ilość złącz pamięci DDR5

4

Maksymalna ilość portów USB 4.0

1

Uwagi do WiFi / BT

6GHz band support may depend on every country’s regulations and Wi-Fi 7
Bluetooth 5.4 will be ready in Windows 11 version 24H2
Supports Bluetooth 5.4, MLO, 4KQAM
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
The Bluetooth version may be updated, please refer to the Wi-Fi chipset
The Wireless module is pre-installed in the M.2 (Key-E) slot
Wi-Fi 7
vendor’s website for details
will be ready in Windows 11 version 24H2
