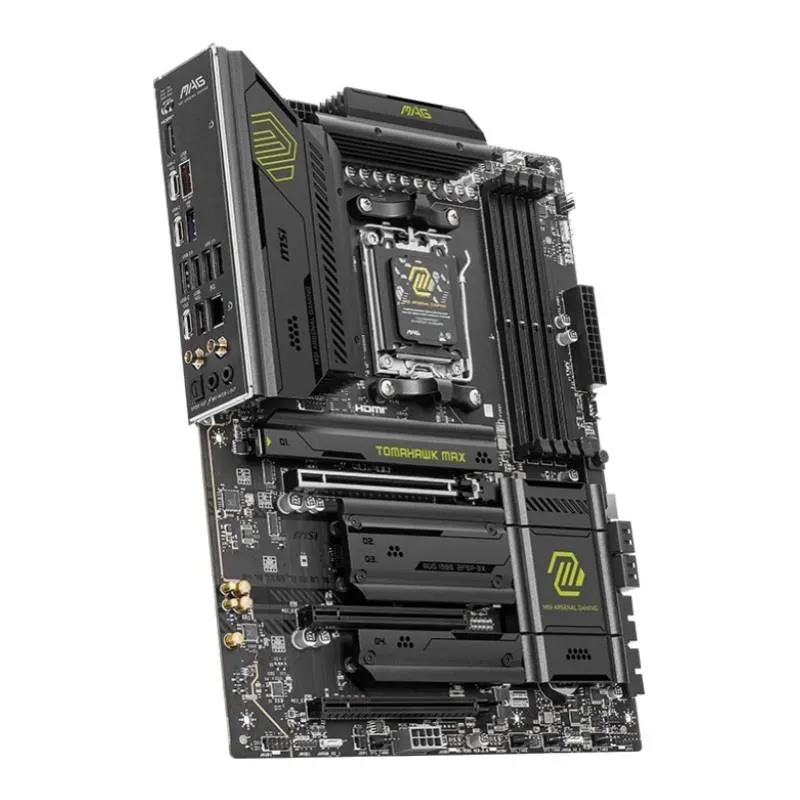

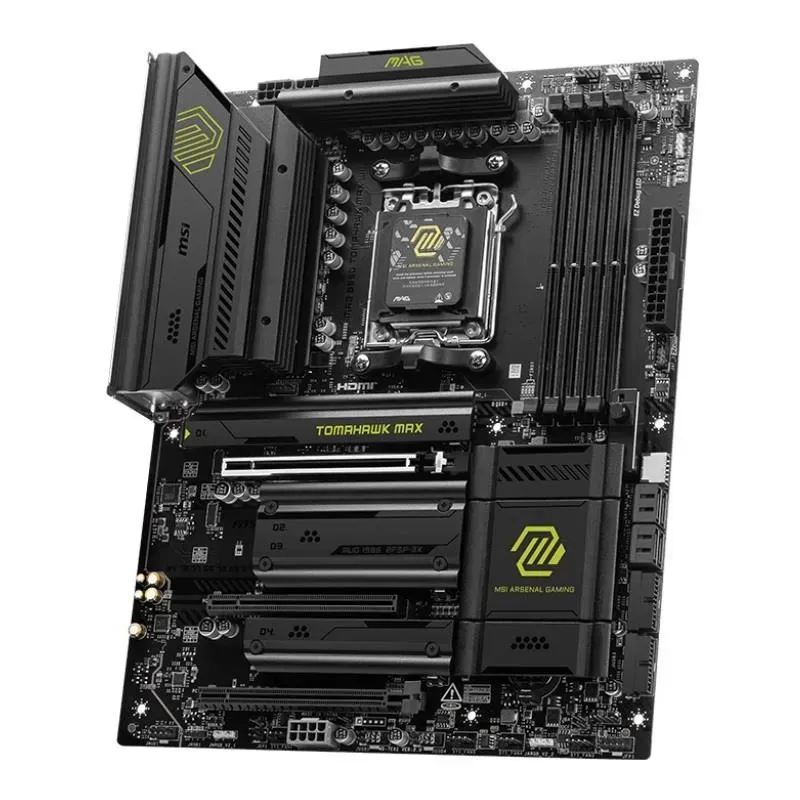

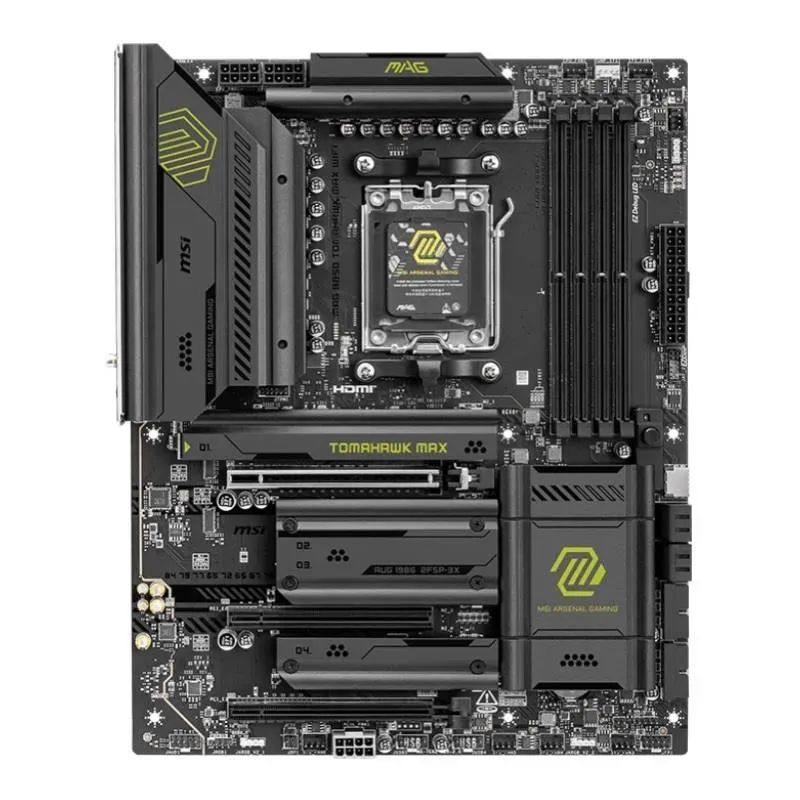

Płyta MSI MAG B850 TOMAHAWK MAX WIFI /AMD

Opis

Gniazdo procesora

Socket AM5

Format płyty

ATX

Zawiera baterię / akumulator

Tak

Wyposażenie dodatkowe

1 to 3 EZ Conn-Cable (V2)
Cable Sticker
EZ Front Panel Cable
EZ M.2 Clip II Remover
EZ M.2 Clips II
EZ Wi-Fi antenna
European Union Regulatory Notice
Quick Installation Guide
SATA cable

Wymiary [S x W] (mm)

243,84 x 304,8

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 5 Gigabit LAN Realtek® 8126VB

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

AMD B850

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™ (AM5)

Standard pamięci

DDR5-4800
DDR5-5000
DDR5-5200
DDR5-5400
DDR5-5600
DDR5-5600 (OC)
DDR5-5800 (OC)
DDR5-6000 (OC)
DDR5-6200 (OC)
DDR5-6400 (OC)
DDR5-6800 (OC)
DDR5-7000 (OC)
DDR5-7200 (OC)
DDR5-7400 (OC)
DDR5-7600 (OC)
DDR5-7800 (OC)
DDR5-7900 (OC)
DDR5-8000 (OC)
DDR5-8200 (OC)
DDR5-8400 (OC)

Uwagi do karty graficznej

Available only on processors featuring integrated graphics
Graphics specifications may vary depending on the CPU installed
Support HDMITM 2.1 with FRL port, supporting a max. resolution of 8K 60Hz

Uwagi do procesora

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

- 1DPC 1R Max speed up to 8400+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max. speed up to 4800+ MHz
Ryzen 9000 Series Processors max. overclocking frequency:
Supports AMD POR Speed and JEDEC Speed
Supports CUDIMM, Clock Driver bypass mode only
Supports Memory Overclocking and AMD EXPO
Supports Non-ECC, Un-buffered Memory

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2

Uwagi do kontrolera SATA

- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,
- M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 ,
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 ,
- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 ,
- Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600 / 8400 Series processor
- Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
M.2_1 slot:
M.2_2 slot:
RAID 10 for M.2 NVMe storage devices is only supp. by AMD Ryzen 9000/7000
Supports RAID 0, RAID 1 and RAID 10* for M.2 NVMe storage devices
supports 2280/2260 devices
supports 22110/2280 devices

Gniazda karty graficznej

HDMI

Zintegrowana karta dźwiękowa

Realtek® ALC 4080 7.1-Channel USB High Performance Audio CODEC

Gniazda karty dźwiękowej

2x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Uwagi do karty dźwiękowej

Supports up to 32-bit/384kHz playback on front panel

Złącza PCI Express x16

3

Uwagi do złącz PCI

- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
- Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
PCI_E1 slot:
PCI_E3 slot will run x2 speed when installing devices in the M.2_3 slot

Maksymalna ilość portów USB 2.0

8

Maksymalna ilość portów USB 3.x

11

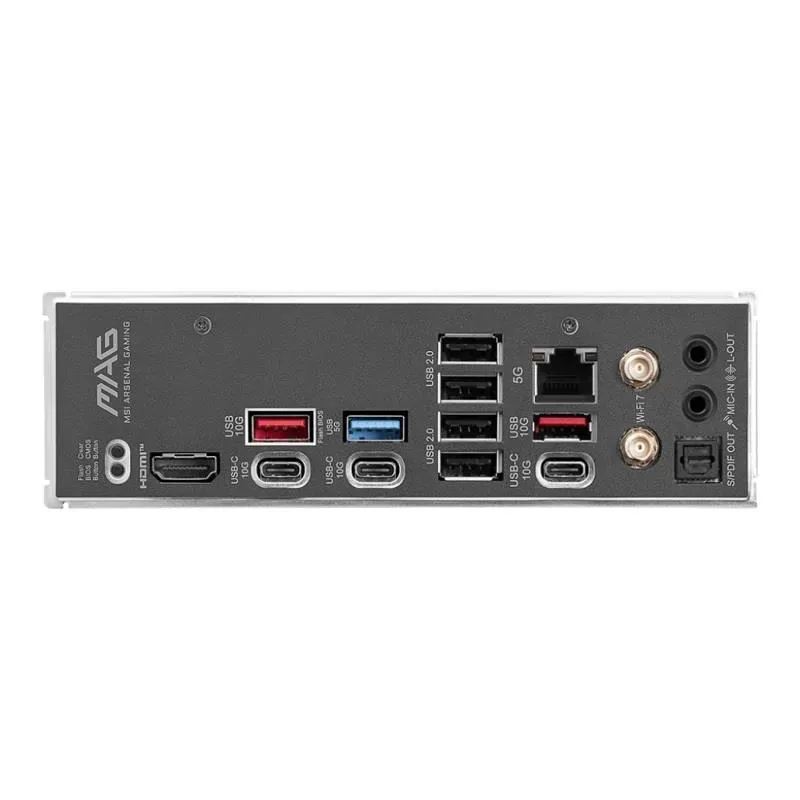

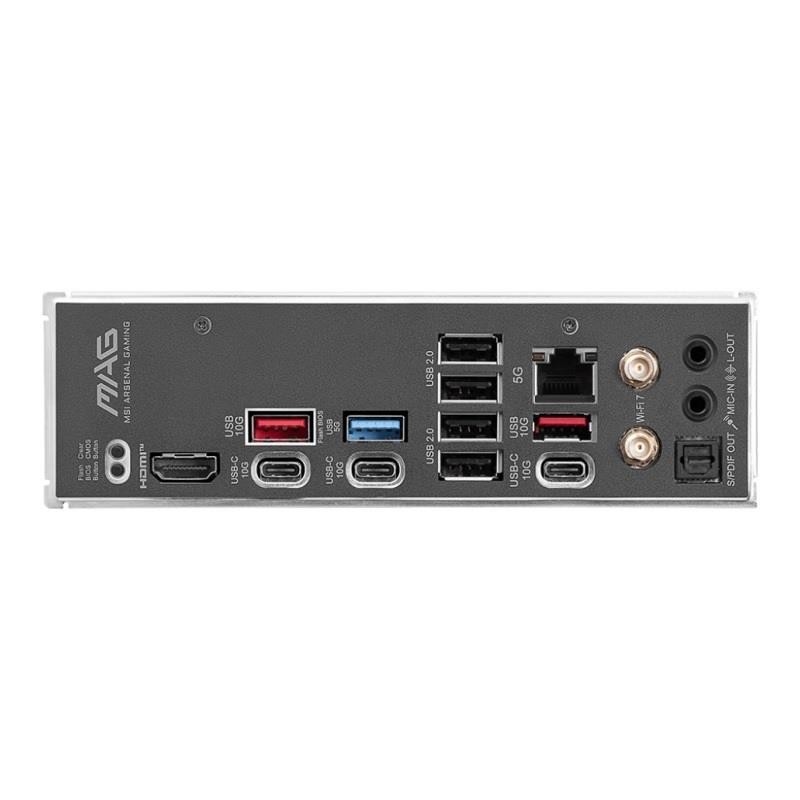

Porty USB na panelu tylnym

4x USB 2.0 + 1x USB 3.0 + 2x USB 3.1 + 3x USB 3.1 Type-C

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)

Port PS/2

Brak

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Inne porty i gniazda

2x Antenna Ports
3x Addressable V2 RGB LED connector
4x EZ Debug LED
6x System Fan
CPU Fan
Clear CMOS button(s)
Combo Fan (Pump_Sys Fan)
EZ Conn-header (JAF_1)
Flash BIOS Button
Gniazdo modułu TPM
RGB LED connector
Złącze czujnika otwarcia obudowy

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)

Ilość złącz pamięci DDR5

4

Uwagi do WiFi / BT

6GHz band support may depend on every country’s regulations and Wi-Fi 7
Bluetooth 5.4 will be ready in Windows 11 version 24H2
Supports Bluetooth 5.4, MLO, 4KQAM
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
The Bluetooth version may be updated, please refer to the Wi-Fi chipset
The Wireless module is pre-installed in the M.2 (Key-E) slot
Wi-Fi 7
vendor’s website for details
will be ready in Windows 11 version 24H2
