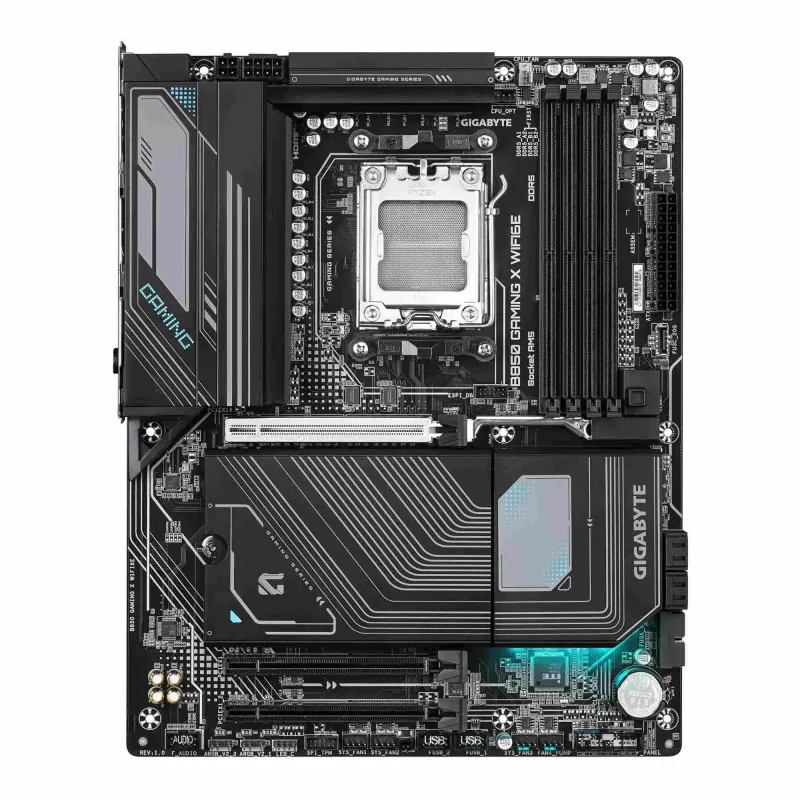

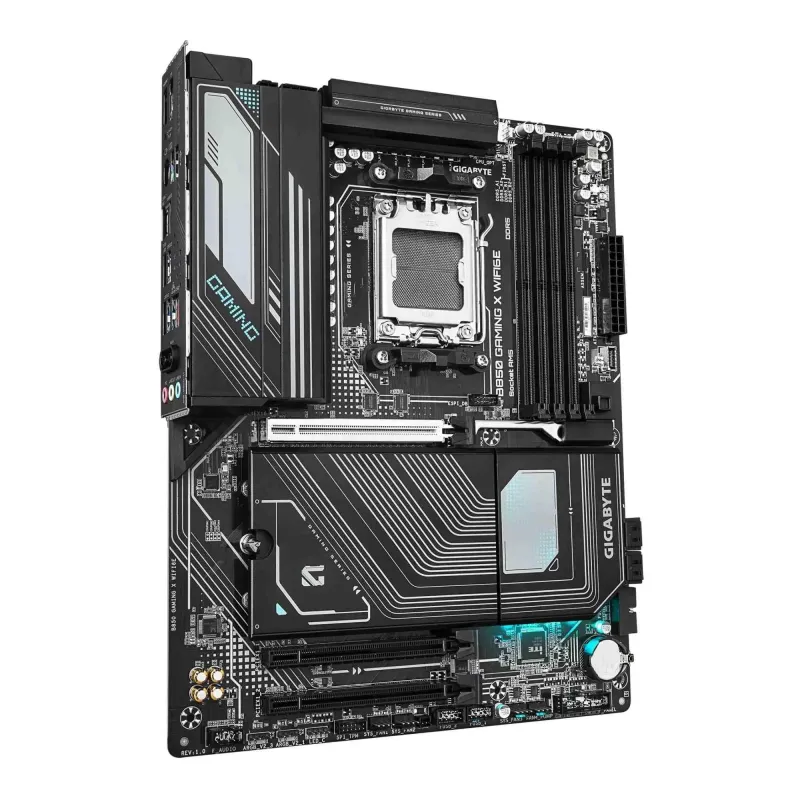

Płyta Gigabyte B850 GAMING X WIFI6E /AMD

Opis

Gniazdo procesora

Socket AM5

Format płyty

ATX

Bios

256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Zawiera baterię / akumulator

Tak

Wymiary [S x W] (mm)

305 x 244

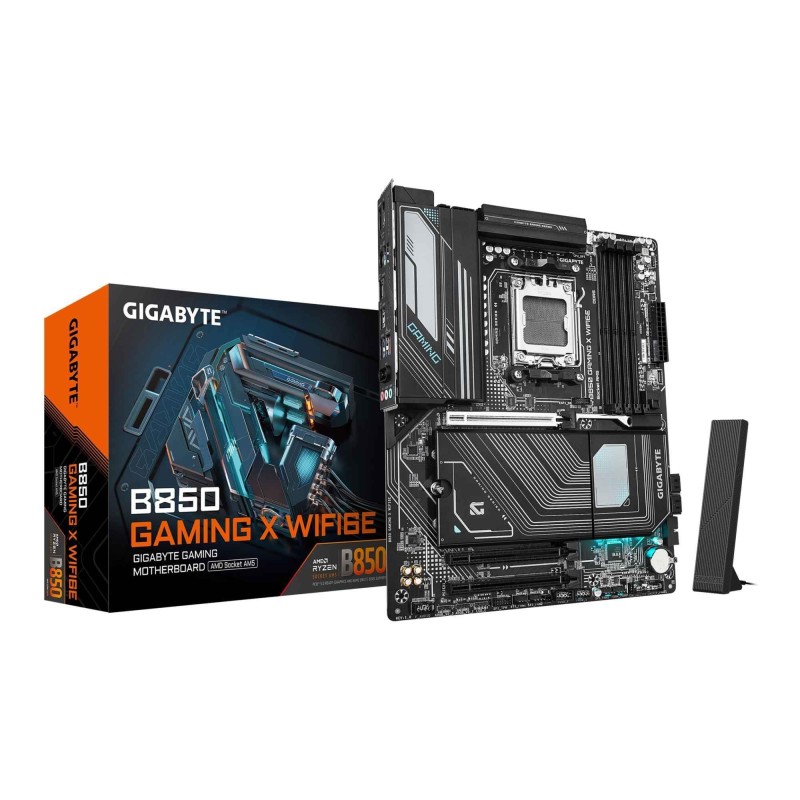

Opakowanie

BOX

Port Bluetooth

Bluetooth V5.3

Maksymalna wielkość pamięci

256 GB

Port LAN

1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax

Chipset płyty głównej

AMD B850

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™

Standard pamięci

DDR5-4400
DDR5-4800
DDR5-5200
DDR5-5600 (OC)
DDR5-5800 (OC)
DDR5-6200 (OC)
DDR5-6400 (OC)
DDR5-6600 (OC)
DDR5-6800 (OC)
DDR5-7000 (OC)
DDR5-7200 (OC)
DDR5-7400 (OC)
DDR5-7600 (OC)
DDR5-7800 (OC)
DDR5-7900 (OC)
DDR5-7950 (OC)
DDR5-8000 (OC)
DDR5-8200 (OC)

Uwagi do karty graficznej

- 1 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics specifications may vary depending on CPU support
Integrated Graphics Processor with AMD Radeon™ Graphics support:
Support for DisplayPort 1.4 version.
Support for DisplayPort 1.4 version and HDR
Support for HDMI 2.1 version and HDCP 2.3, and HDR.
Support for native HDMI 2.1 TMDS compatible ports.
Support for up to triple-display at the same time

Uwagi do procesora

Support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

Extreme Memory Profile (XMP) memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 3x M.2 - RAID 0,1,5,10

Uwagi do kontrolera SATA

- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3,
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3,
M key, type 25110/22110/2580/2280 SSDs:
M key, type 25110/22110/25110/2280 PCIe 4.0 x4/x2 SSDs
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
RAID 5 is only available on AMD Ryzen™ 9000 Series Processors

Gniazda karty graficznej

DisplayPort
HDMI

Zintegrowana karta dźwiękowa

Realtek ® 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękowej

3x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękowej

To configure 7.1-channel audio, access the audio software for audio setting
You can change the functionality of an audio jack using the audio software

Złącza PCI Express x16

3

Uwagi do złącz PCI

(PCIEX1_1, PCIEX1_2)
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
Chipset:
If only one graphics card is to be installed, be sure to install it in
The PCIEX16 slot can only support a graphics card or an NVMe SSD
the PCIEX16 slot

Maksymalna ilość portów USB 2.0

7

Maksymalna ilość portów USB 3.x

8

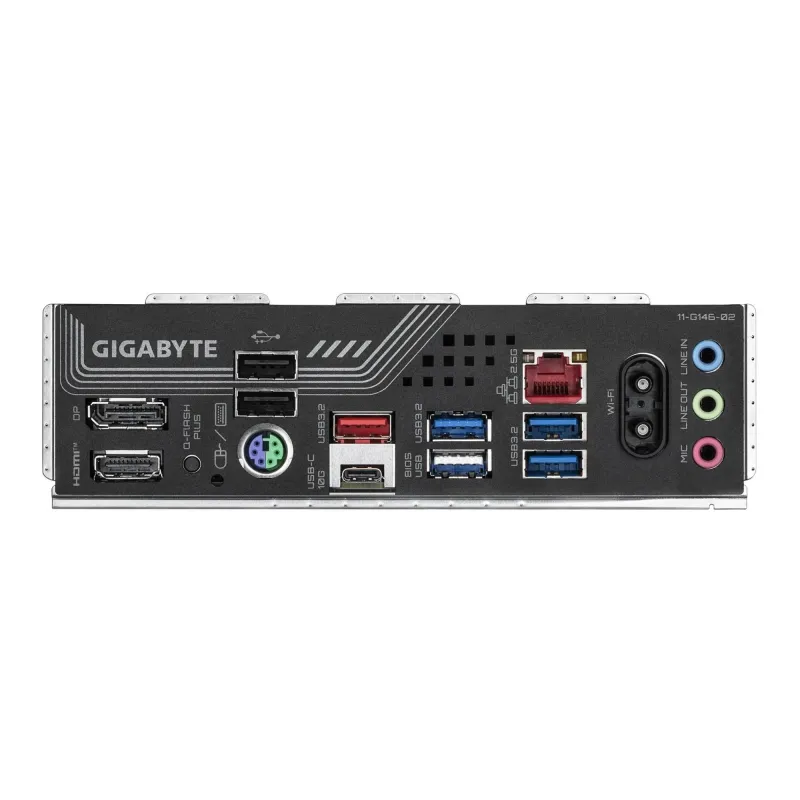

Porty USB na panelu tylnym

3x USB 2.0 + 3x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)

Port PS/2

Port combo klawiatury/myszy PS/2

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Inne porty i gniazda

2x SMA antenna connectors (2T2R)
3x Addressable RGB Gen2 LED strip headers
3x system fan headers
CPU fan/water cooling pump header
CPU fan header
Clear CMOS jumper
Gniazdo modułu TPM
Q-Flash Plus button
RGB LED strip header
Reset jumper
System fan/water cooling pump header

Gniazdo zasilania

ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)

Ilość złącz pamięci DDR5

4

Uwagi do WiFi / BT

Actual data rate may vary depending on environment and equipment
Support for 11ax 160MHz wireless standard
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
