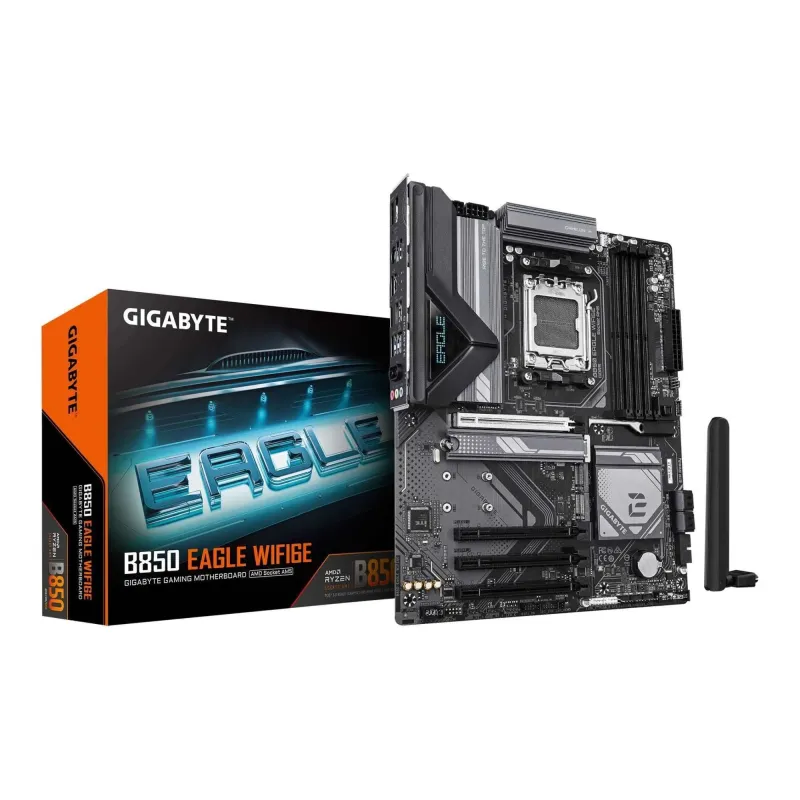

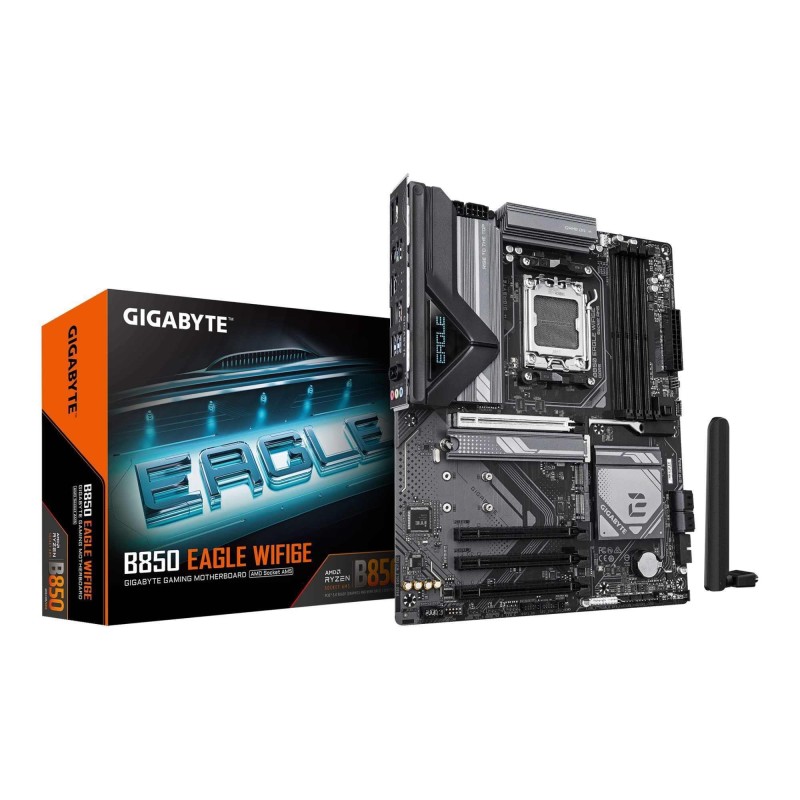

Płyta Gigabyte B850 EAGLE WIFI6E /AMD
713,99 zł
Brutto
warehouse Wybierz magazyn
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Support for Windows 10 and windows 11 64-bit
Bundled Software:
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Support for Windows 10 and windows 11 64-bit
Bundled Software:
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
B850 EAGLE WIFI6E
1 Przedmiot
Opis
AM5
Gniazdo procesora
ATX
Format płyty
256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Bios
Tak
Zawiera baterię / akumulator
305 x 244
Wymiary [S x W] (mm)
BOX
Opakowanie
Tak
Port Bluetooth
256 GB
Maksymalna wielkość pamięci
1x 1 Gigabit LAN Realtek®
Port LAN
Tak
Port Wi-Fi
AMD B850
Chipset płyty głównej
Brak lub AMD Radeon™ Graphics (zależy od procesora)
Wbudowana karta graficzna
AMD Ryzen™
Obsługiwane typy procesorów
DDR5
Standard pamięci
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics specifications may vary depending on CPU support
Integrated Graphics Processor with AMD Radeon™ Graphics support:
Support for DisplayPort 1.4 version and HDR.
Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for native HDMI 2.1 TMDS compatible ports.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics specifications may vary depending on CPU support
Integrated Graphics Processor with AMD Radeon™ Graphics support:
Support for DisplayPort 1.4 version and HDR.
Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for native HDMI 2.1 TMDS compatible ports.
Uwagi do karty graficznej
Support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Uwagi do procesora
Dual Channel
Tryb pracy pamięci RAM
Extreme Memory Profile (XMP) memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Uwagi do pamięci RAM
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 3x M.2 - RAID 0,1,5,10
Zintegrowany kontroler SATA
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3,
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3,
M key, type 22110/2280 PCIe 4.0 x2 SSDs
M key, type 22110/2280 SSDs:
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
RAID 5 is only available on AMD Ryzen™ 9000 Series Processors
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3,
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3,
M key, type 22110/2280 PCIe 4.0 x2 SSDs
M key, type 22110/2280 SSDs:
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
RAID 5 is only available on AMD Ryzen™ 9000 Series Processors
Uwagi do kontrolera SATA
DisplayPort
HDMI
HDMI
Gniazda karty graficznej
Realtek ® 7.1 Surround Sound High Definition Audio CODEC
Zintegrowana karta dźwiękowa
3x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wewnętrzne gniazdo audio przedniego panelu
Gniazda karty dźwiękowej
To configure 7.1-channel audio, access the audio software for audio setting
You can change the functionality of an audio jack using the audio software
You can change the functionality of an audio jack using the audio software
Uwagi do karty dźwiękowej
4
Złącza PCI Express x16
(PCIEX1_1, PCIEX1_2, PCIEX1_3)
- 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
Chipset:
If only one graphics card is to be installed, be sure to install it in
The PCIEX16 slot can only support a graphics card or an NVMe SSD
the PCIEX16 slot
- 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
Chipset:
If only one graphics card is to be installed, be sure to install it in
The PCIEX16 slot can only support a graphics card or an NVMe SSD
the PCIEX16 slot
Uwagi do złącz PCI
8
Maksymalna ilość portów USB 2.0
8
Maksymalna ilość portów USB 3.x

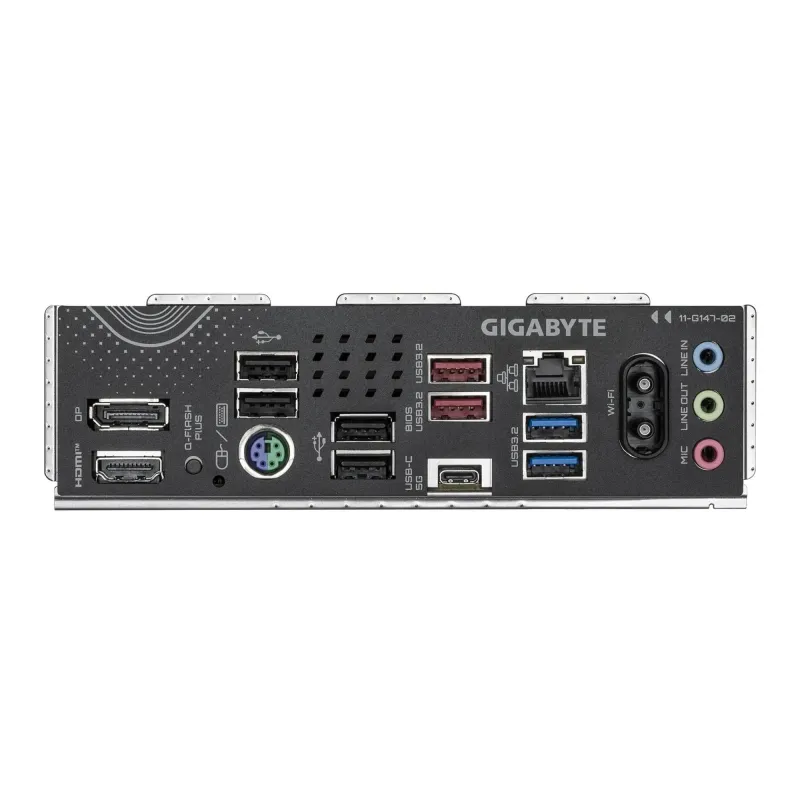

4x USB 2.0 + 2x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C
Porty USB na panelu tylnym
2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.0 Type-C (1 port)
Gniazda USB na płycie głównej
Port combo klawiatury/myszy PS/2
Port PS/2
Brak
Port szeregowy (COM)
Brak
Port równoległy (LPT)
2x SMA antenna connectors (2T2R)
3x Addressable RGB Gen2 LED connector
3x system fan headers
CPU fan/water cooling pump header
CPU fan header
Clear CMOS jumper
Gniazdo modułu TPM
Q-Flash Plus button
RGB LED strip header
Reset button
Reset jumper
System fan/water cooling pump header
3x Addressable RGB Gen2 LED connector
3x system fan headers
CPU fan/water cooling pump header
CPU fan header
Clear CMOS jumper
Gniazdo modułu TPM
Q-Flash Plus button
RGB LED strip header
Reset button
Reset jumper
System fan/water cooling pump header
Inne porty i gniazda
ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)
Gniazdo zasilania
4
Ilość złącz pamięci DDR5
Actual data rate may vary depending on environment and equipment
Support for 11be 160MHz wireless standard
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Support for 11be 160MHz wireless standard
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Uwagi do WiFi / BT
Specyficzne kody
- EAN13
- 4719331866587
