Płyta Asus TUF GAMING X870-PLUS WIFI /AMD

Opis

Gniazdo procesora

Socket AM5

Format płyty

ATX

Bios

256 Mb Flash ROM, UEFI AMI BIOS WOL by PME, PXE

Zawiera baterię / akumulator

Tak

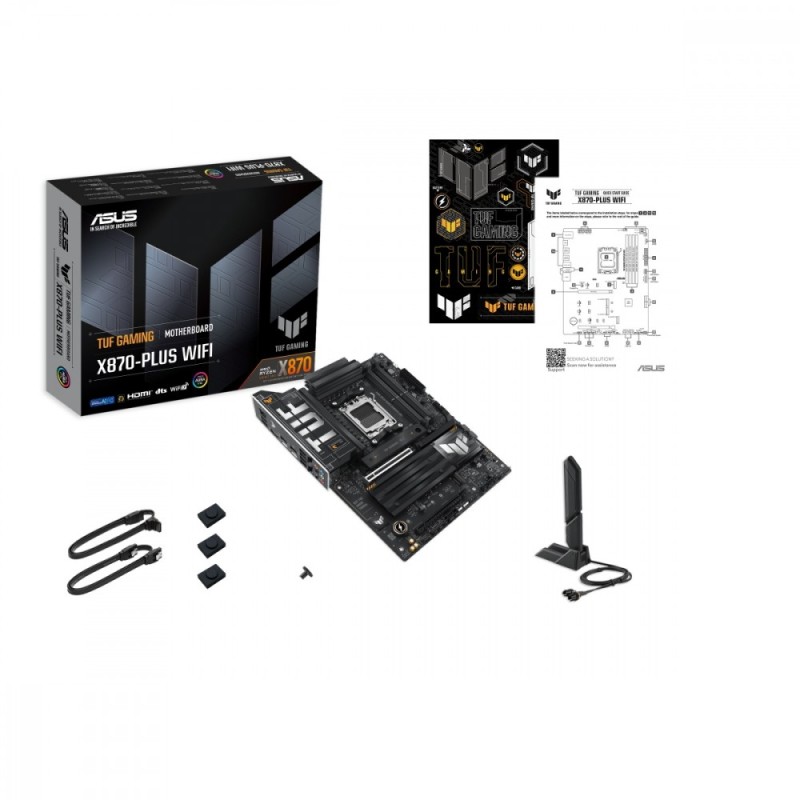

Wyposażenie dodatkowe

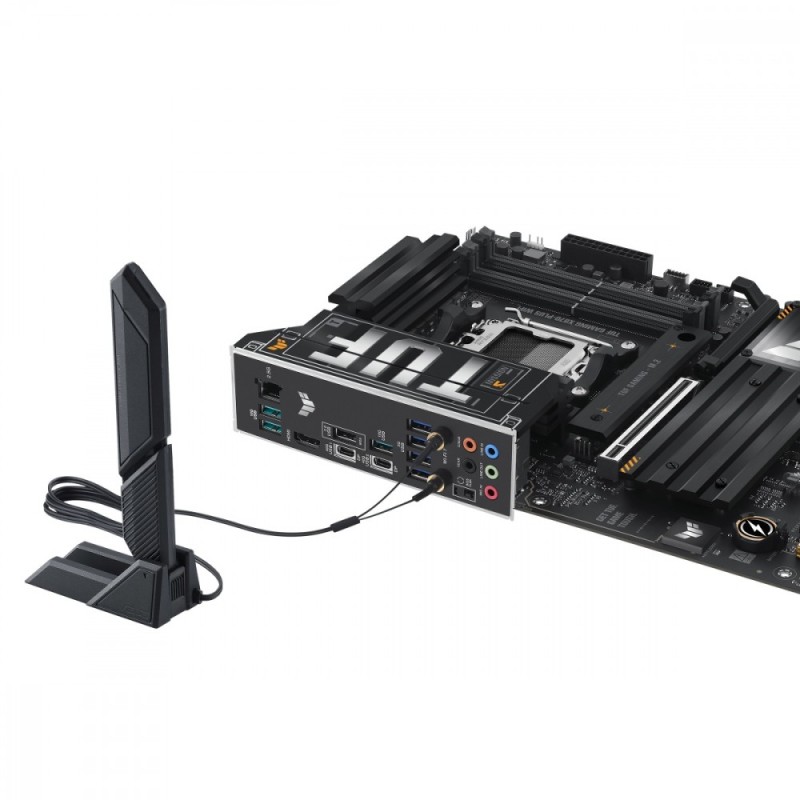

1x ASUS WiFi Q-Antenna
1x Quick start guide
1x Screw package for M.2 SSD
1x TUF GAMING sticker
2x M.2 rubber packages
2x SATA 6Gb/s cables

Wymiary [S x W] (mm)

305 x 244

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

192 GB

Port LAN

1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

AMD X870

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™ (AM5)

Uwagi do karty graficznej

AMD CPU specifications
Graphics specifications may vary between CPU types. Please refer to
Supports 4K@60Hz as specified in HDMI 2.1
Supports max. 4K@60Hz as specified in DisplayPort 1.4a

Uwagi do procesora

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

ASUS Enhanced Memory Profile (AEMP)
Adjustments will be made based on the specifications of mass-produced
ECC and Non-ECC, Un-buffered DIMM
Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Supported memory types, data rate (speed), and number of DRAM modules vary
Supports AMD Extended Profiles for Overclocking (EXPO)
Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series
depending on the CPU and memory configuration, for more information please
memory products available on the market
refer to CPU/Memory Support list under the Support tab of product informa

Zintegrowany kontroler SATA

Chipset+CPU: 2x SATA III 6Gb/s + 4x M.2

Uwagi do kontrolera SATA

- 2 x SATA 6Gb/s ports
- M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
- M.2_2 slot not support
- M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and
AMD Ryzen 8000 Series Desktop Processors:
AMD Ryzen 9000 & 7000 Series Desktop Processors:
AMD X870 Chipset:
SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series
The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be
The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run
disabled when M.2_4 runs
to x8 mode when M.2_2 runs

Gniazda karty graficznej

2x USB4 Type-C
HDMI

Zintegrowana karta dźwiękowa

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękowej

5x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu

Uwagi do karty dźwiękowej

Audio Cover
Audio Shielding
Dedicated audio PCB layers
Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported
High quality 120 dB SNR stereo playback output and 113 dB SNR recording
Impedance sense for front and rear headphone outputs
Internal audio Amplifier to enhance the highest quality sound for
Premium audio capacitors
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Unique de-pop circuit
for 7.1 Surround Sound audio
headphone and speakers
input (Line-in)

Złącza PCI Express x16

2

Uwagi do złącz PCI

- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors:
AMD Ryzen 9000 & 7000 Series Desktop Processors:
AMD X870 Chipset:
Please check the PCIe bifurcation table on the support site
The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be
The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run
To ensure compatibility of the device installed, please refer to
disabled when M.2_4 runs
to x8 mode when M.2_2 runs

Uwagi do karty sieciowej

TUF LANGuard

Maksymalna ilość portów USB 2.0

5

Maksymalna ilość portów USB 3.x

10

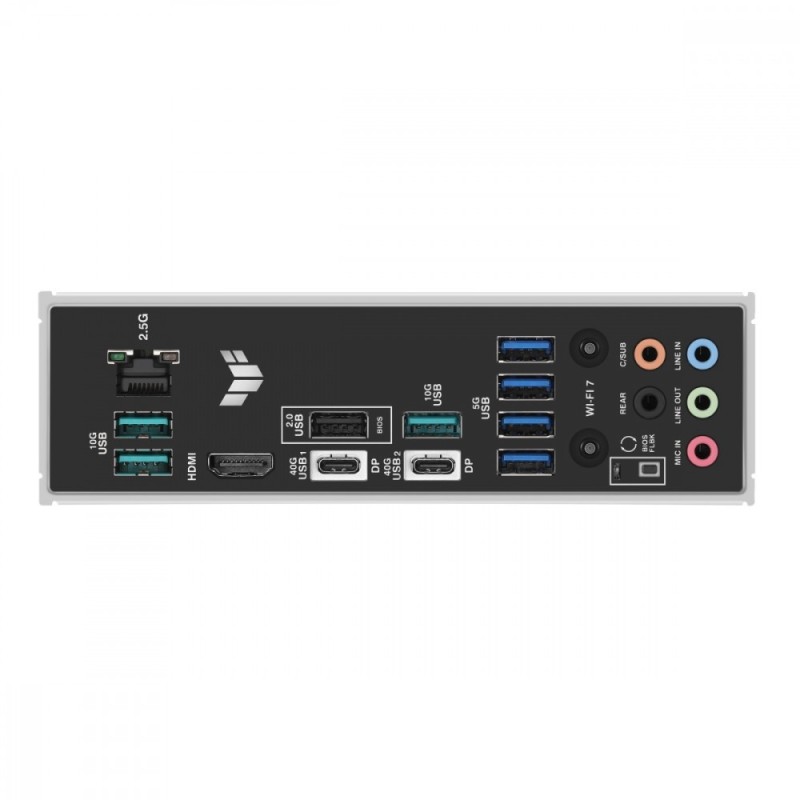

Porty USB na panelu tylnym

1x USB 2.0 + 4x USB 3.0 + 3x USB 3.1 + 2x USB4 Type-C

Gniazda USB na płycie głównej

2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)

Port PS/2

Brak

Port szeregowy (COM)

1x wewnętrzne gniazdo portu COM

Port równoległy (LPT)

Brak

Inne porty i gniazda

3x Addressable Gen 2 header
4-pin AIO Pump header
4-pin CPU Fan header
4-pin CPU OPT Fan header
10-1 pin System Panel header
Chassis intrusion header
Clear CMOS header
Thermal Sensor header
W_PUMP+ header

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin)

Ilość złącz pamięci DDR5

4

Maksymalna ilość portów USB 4.0

2

Uwagi do WiFi / BT

For Windows 10, please note that no driver is available , please refer to
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
The Bluetooth version may vary, please refer to the Wi-Fi module
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary
Wi-Fi features may vary depending on the operating system
functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E
manufacturer's website for the latest specifications
the Wi-Fi chipset vendor's website for details
