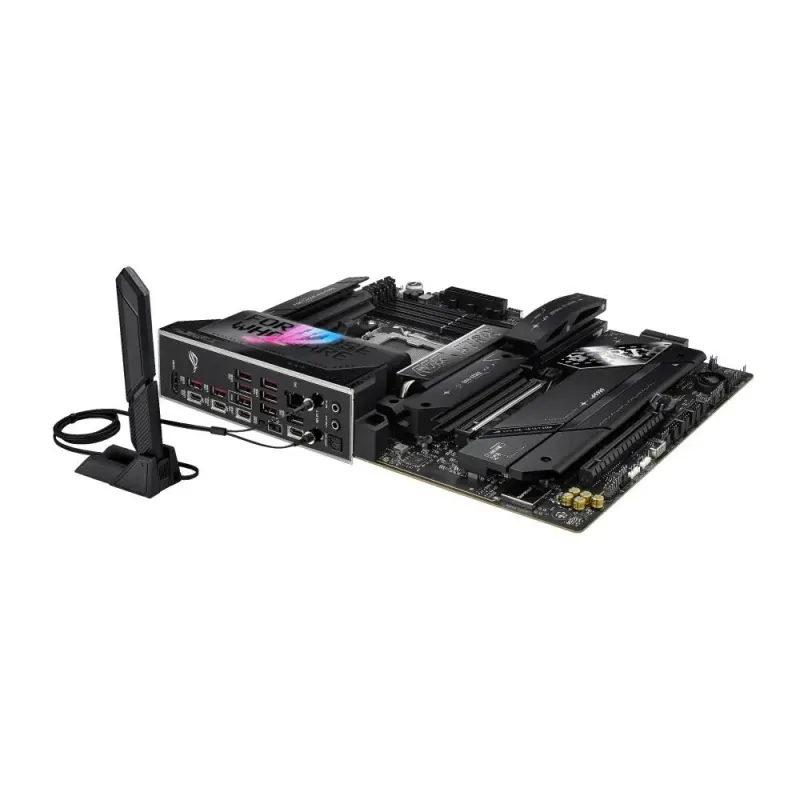

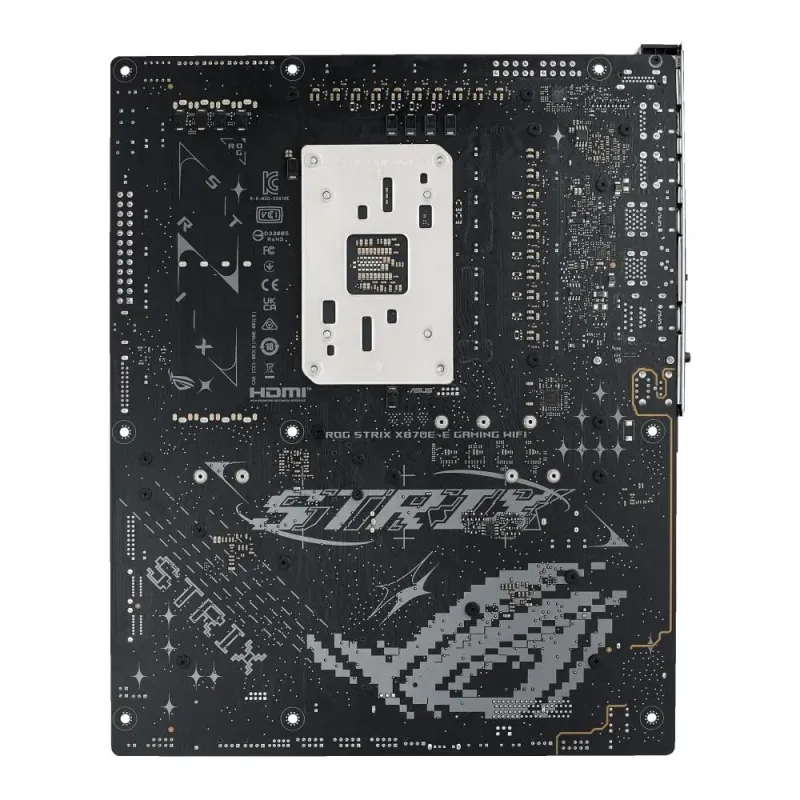

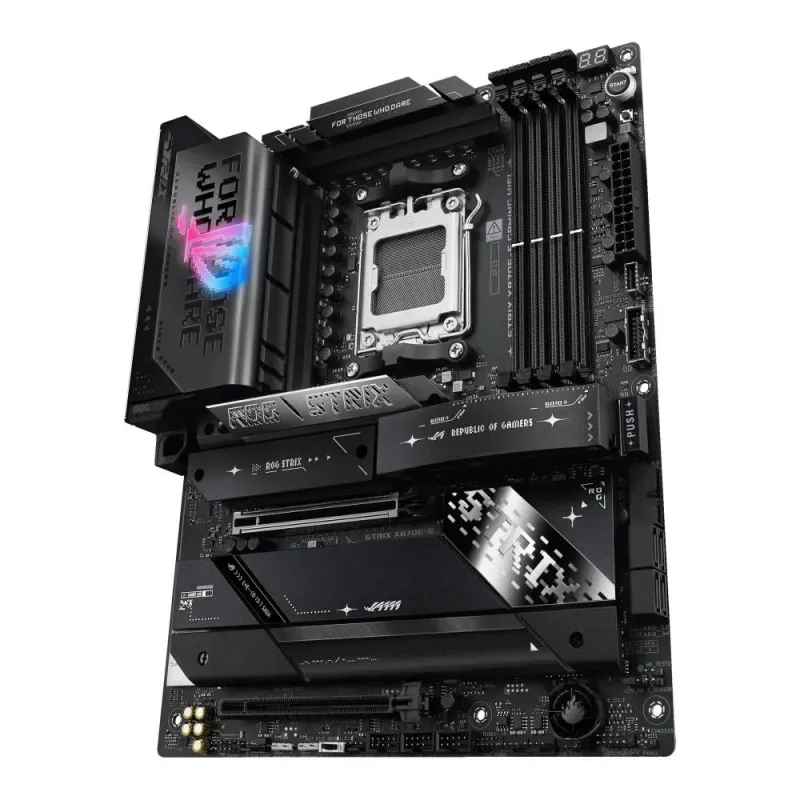

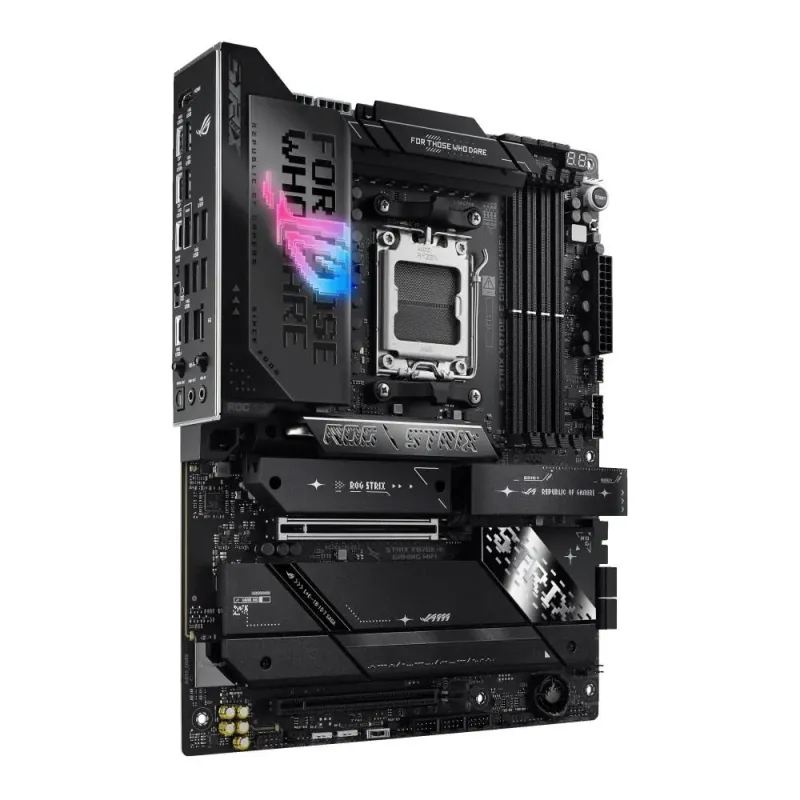

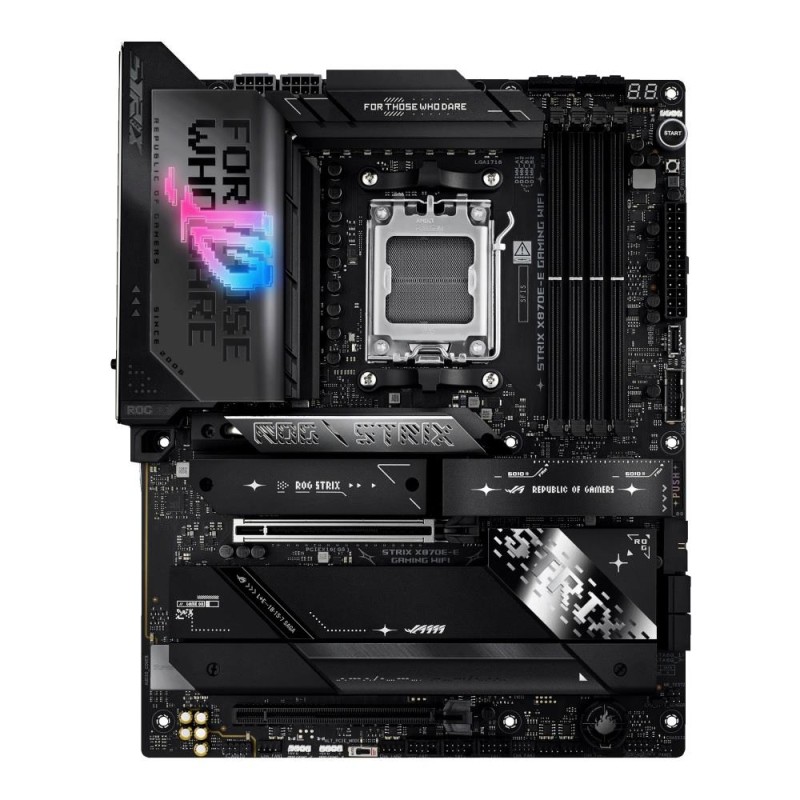

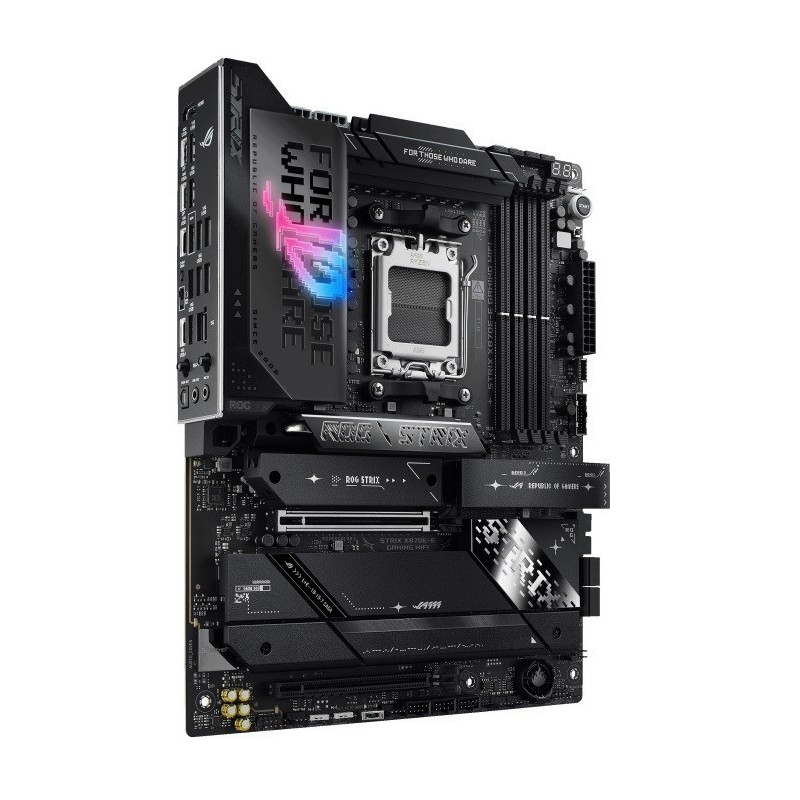

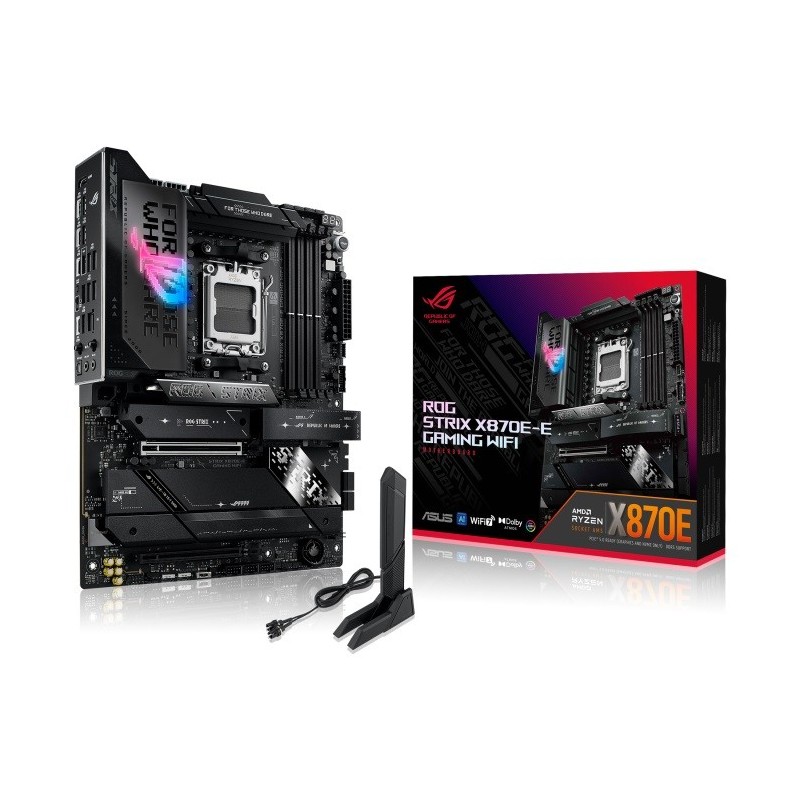

Płyta Asus ROG STRIX X870E-E GAMING WIFI /AMD

Opis

Gniazdo procesora

Socket AM5

Format płyty

ATX

Bios

Zawiera baterię / akumulator

Tak

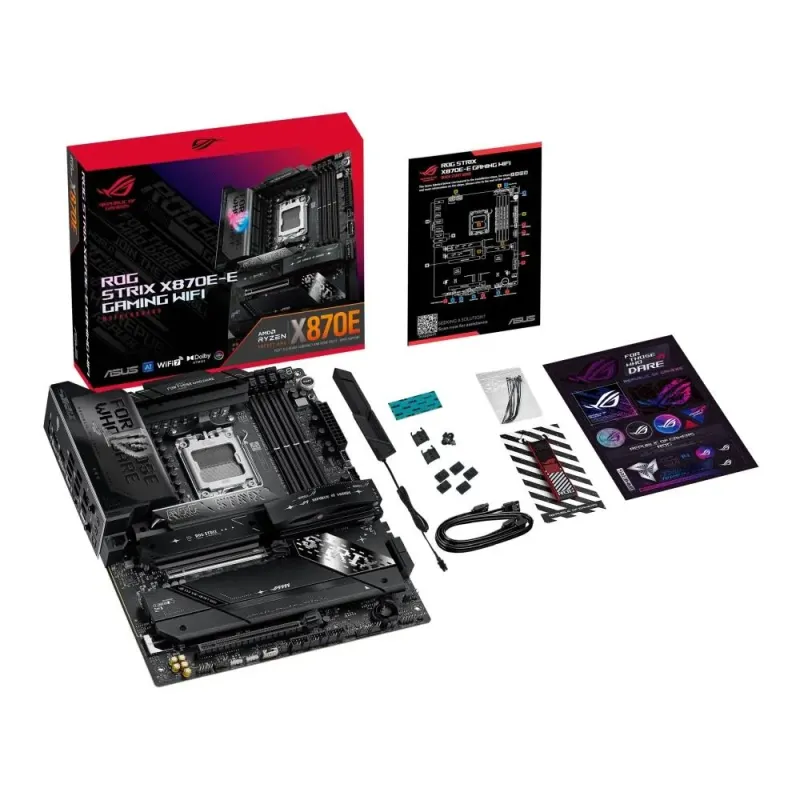

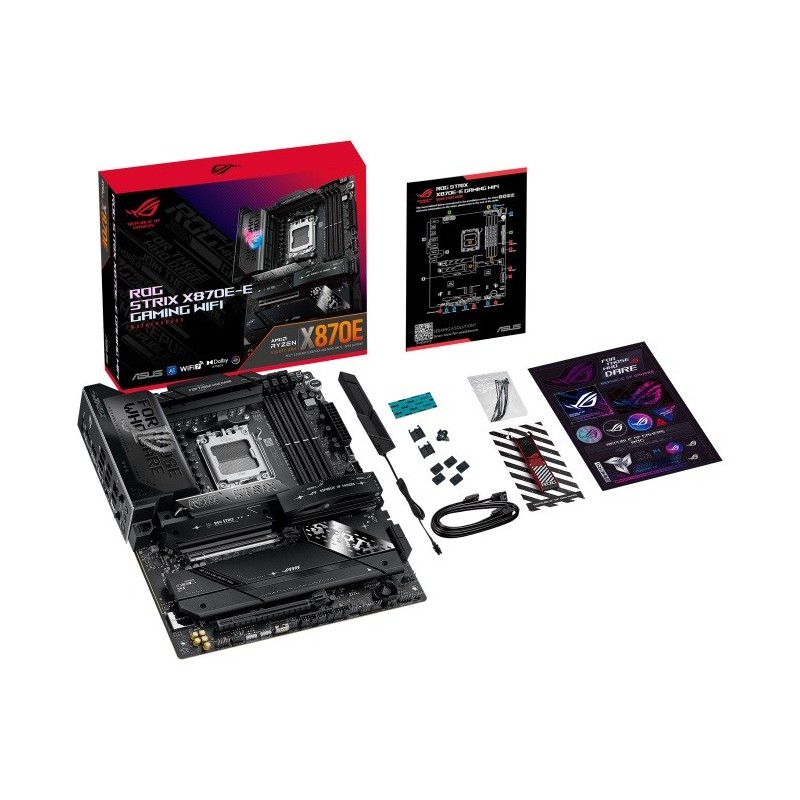

Wyposażenie dodatkowe

1x ASUS Wi-Fi moving antennas
1x Cable ties pack
1x M.2 Q-Latch package
1x Quick start guide
1x ROG Strix stickers
1x ROG key chain
1x Thermal pad for M.2 22110
2x M.2 Q-Slides
2x SATA 6Gb/s cables
5x M.2 Rubbers

Wymiary [S x W] (mm)

305 x 244

Port Bluetooth

Bluetooth V5.4

Maksymalna wielkość pamięci

192 GB

Port LAN

1x 5 Gigabit LAN Realtek®

Port Wi-Fi

IEEE 802.11a/b/g/n/ac/ax/be

Chipset płyty głównej

AMD X870

Wbudowana karta graficzna

Brak lub AMD Radeon™ Graphics (zależy od procesora)

Obsługiwane typy procesorów

AMD Ryzen™ (AM5)

Uwagi do karty graficznej

AMD CPU specifications
Graphics specifications may vary between CPU types. Please refer to
Supports max. 4K@60Hz as specified in DisplayPort 1.4a
Supports max. 4K@60Hz as specified in HDMI 2.1

Uwagi do procesora

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Tryb pracy pamięci RAM

Dual Channel

Uwagi do pamięci RAM

- 8000+MT/s(OC) with Ryzen 7000 Series Processors
- 8000+MT/s(OC) with Ryzen 9000 Series Processors
- 8400+MT/s(OC) with Ryzen 8000 Series Processors
ASUS Enhanced Memory Profile (AEMP)
ECC and Non-ECC Un-buffered DIMM
NitroPath DRAM Technology
Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Supported memory types, data rate (speed), and number of DRAM modules vary
Supports AMD Extended Profiles for Overclocking (EXPO)
Supports up to:
depending on the CPU and memory configuration, for more information
please refer to CPU/Memory Support list under the Support tab of product

Zintegrowany kontroler SATA

Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 5x M.2 + RAID 0,1,5,10

Uwagi do kontrolera SATA

- 4 x SATA 6Gb/s ports
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
- M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen 9000series CPU
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/
AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors:
AMD X870E Chipset:
M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5)
When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run
x8 only

Gniazda karty graficznej

2x USB4 Type-C
HDMI

Zintegrowana karta dźwiękowa

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Gniazda karty dźwiękowej

2x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF

Uwagi do karty dźwiękowej

Audio Cover
Audio Shielding
Gold-plated audio jacks
High quality 120 dB SNR stereo playback output and 110 dB SNR recording
If you wish to use spatial audio, make sure to connect your audio output
Impedance sense for front and rear headphone outputs
Premium audio capacitors
Savitech SV3H712 AMP
Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
Supports up to 32-Bit/384 kHz playback
The LINE OUT port on the rear panel does not support spatial audio
device to the audio jack on the front panel of your chassis or use a USB
interface audio device.

Złącza PCI Express x16

2

Uwagi do złącz PCI

- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 5.0 x16 slots (supports x16 mode)
AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors:
AMD X870E Chipset:
Please check the PCIe bifurcation table on the support
To ensure compatibility of the device installed, please refer to

Uwagi do karty sieciowej

ASUS LANGuard

Maksymalna ilość portów USB 2.0

6

Maksymalna ilość portów USB 3.x

16

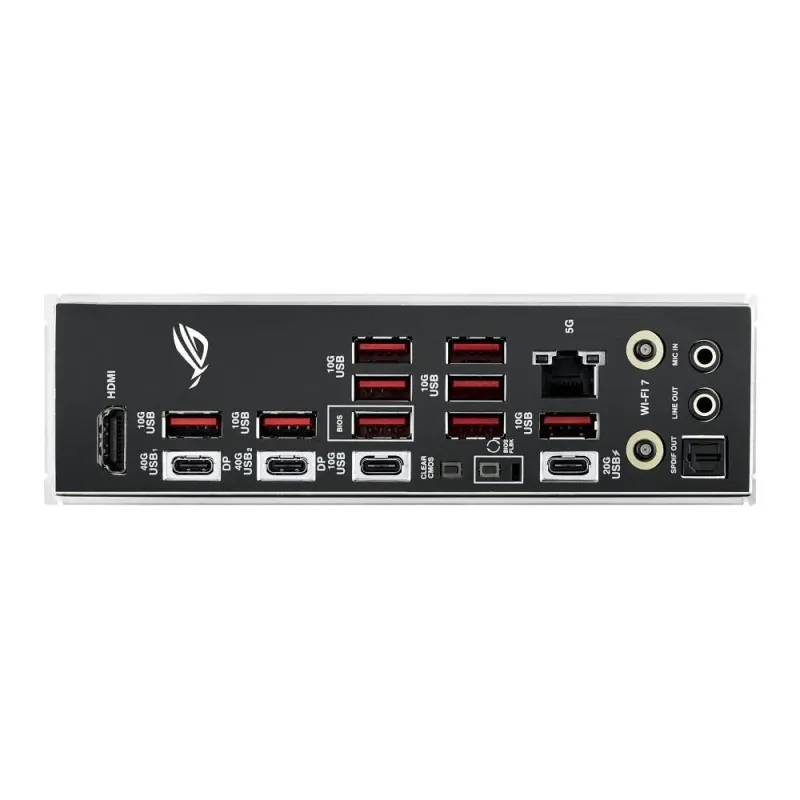

Porty USB na panelu tylnym

9x USB 3.1 + 1x USB 3.1 Type-C + 1x USB 3.2 Type-C + 2x USB4 Type-C

Gniazda USB na płycie głównej

3x USB 2.0 (6 portów) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)

Port PS/2

Brak

Port szeregowy (COM)

Brak

Port równoległy (LPT)

Brak

Inne porty i gniazda

3x Addressable Gen 2 header
4-pin AIO Pump header
4-pin CPU Fan header
4-pin CPU OPT Fan header
5x 4-pin Chassis Fan header(s)
10-1 pin System Panel header
BIOS FlashBack button
CPU Over Voltage jumper
Clear CMOS button(s)
FlexKey button
Start button
Thermal Sensor header
Wi-Fi module with an antenna connector

Gniazdo zasilania

ATX (24-pin) + 2x ATX12V (8-pin)

Ilość złącz pamięci DDR5

4

Maksymalna ilość portów USB 4.0

2

Uwagi do WiFi / BT

2x2 Wi-Fi 7 (802.11be)
For Windows 10, please note that no driver is available, refer to the Wi-Fi
For Windows 11, Wi-Fi 7 will require24H2 or later version for full
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate
Supports 2.4/5/6GHz frequency band
The Bluetooth version may vary, please refer to the Wi-Fi module
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary
Wi-Fi features may vary depending on the operating system
between countries
chipset vendor's website for details
functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E
manufacturer's website for the latest specifications
