Płyta Asus ROG CROSSHAIR X870E HERO /AMD
3 162,00 zł
Brutto
Płyta Asus ROG CROSSHAIR X870E HERO /AMD Płyta Asus ROG CROSSHAIR X870E HERO /AMD to płyta główna AMD AM5. Stanowi podstawę zestawu komputerowego z procesorami AMD Ryzen 7000/9000. ATX Format płyty 256Mb Flash ROM, UEFI AMI BIOS WOL by PME, PXE.

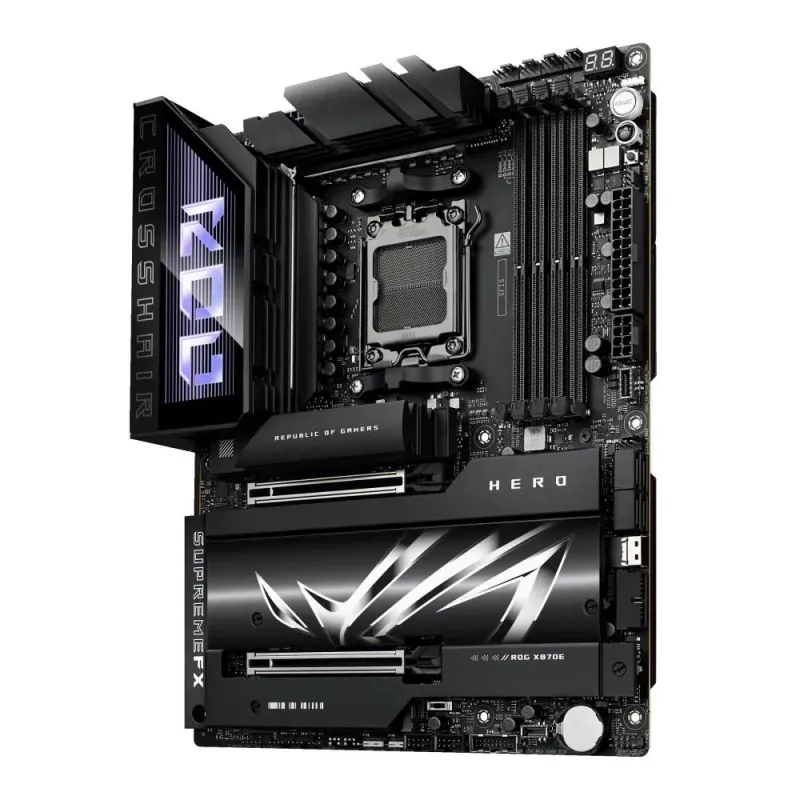

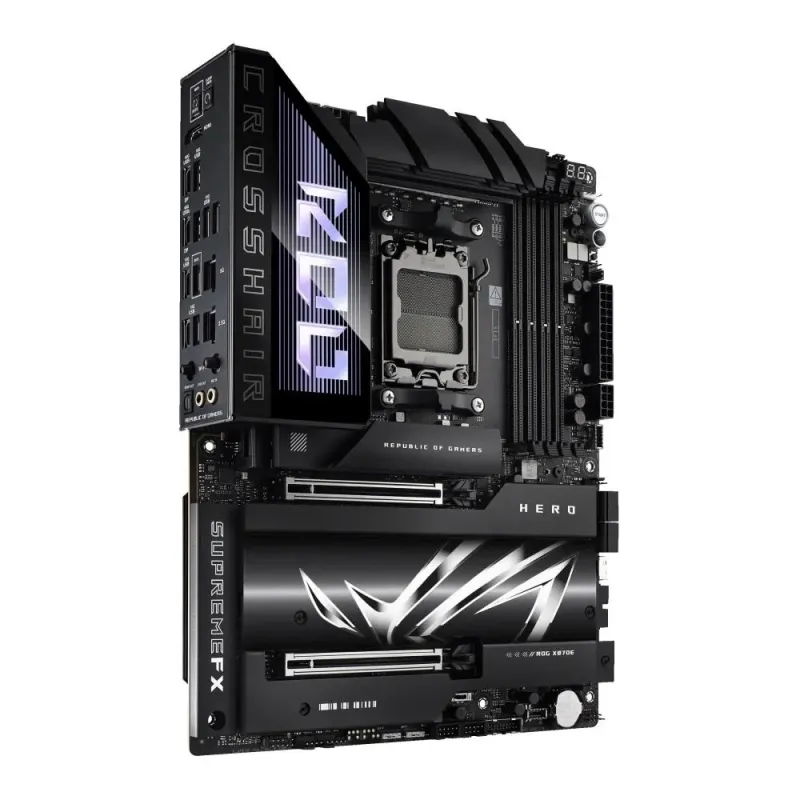

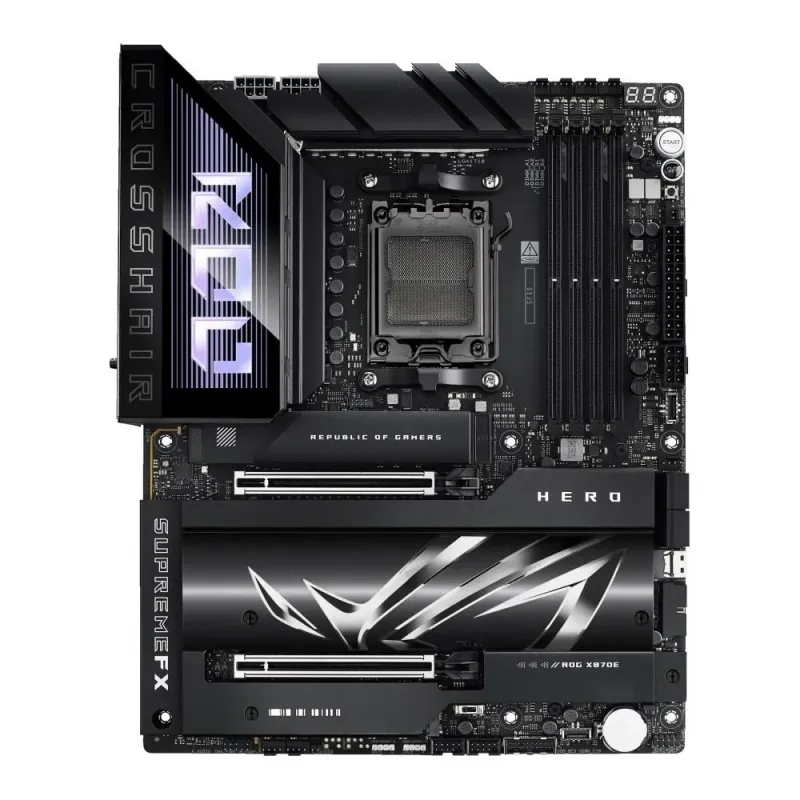

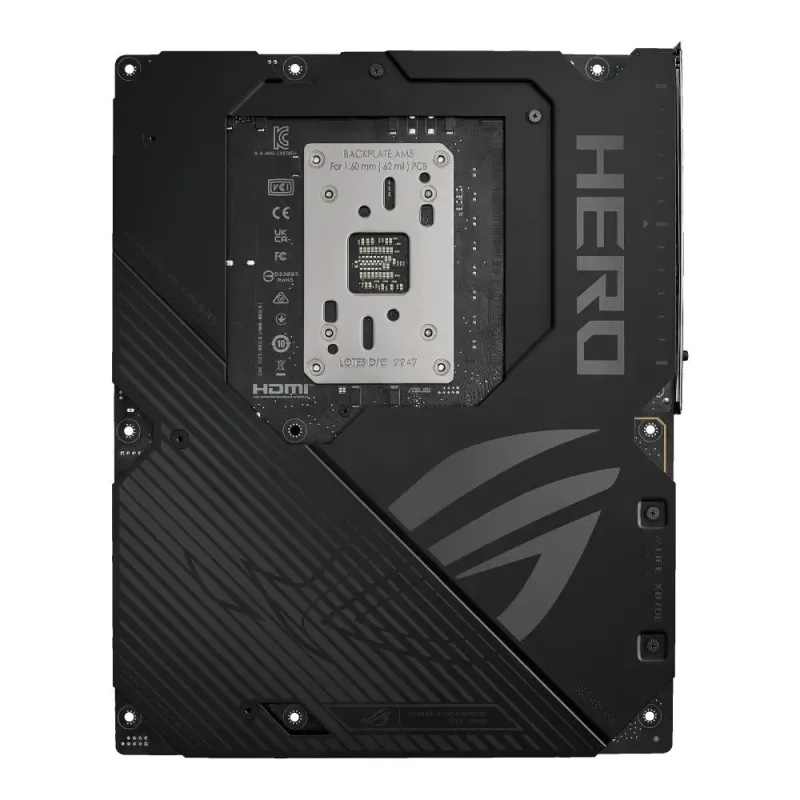

Płyta Asus ROG CROSSHAIR X870E HERO /AMD
Płyta Asus ROG CROSSHAIR X870E HERO /AMD to płyta główna AMD AM5. Stanowi podstawę zestawu komputerowego z procesorami AMD Ryzen 7000/9000.
ATX
Format płyty
256Mb Flash ROM, UEFI AMI BIOS WOL by PME, PXE
Bios
AMD X870
Chipset płyty głównej
HDMI, 2x USB4 Type-C
Gniazda karty graficznej
Kluczowe cechy
Bios: 256Mb Flash ROM, UEFI AMI BIOS WOL by PME, PXE. Gniazda karty dźwiękowej: Wewnętrzne gniazdo audio przedniego panelu, 2x Audio Jack, Wyjście optyczne S/PDIF. Gniazda karty graficznej: HDMI, 2x USB4 Type-C. Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 2x USB 3.2 Type-C (2 porty).
Złącza i wyposażenie
Inne porty i gniazda: Alteration PCIe mode switch, LN2 Mode jumper, FlexKey button, ReTry button, Start button, Clear CMOS button(s), 4-pin CPU Fan header, BIOS FlashBack button , Thermal Sensor header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 10-1 pin System Panel header, 3x Addressable Gen 2 header, 4x 4-pin Chassis Fan headers, Wi-Fi module with an antenna connector, W_PUMP+ header. Wyposażenie dodatkowe: 1x ARGB RGB extension cable, 4x SATA 6Gb/s cables, 1x ASUS WiFi Q-Antenna, 1x Q-connector, 2x M.2 Q-Latch package, 3x M.2 Q-Slide package, 5x M.2 rubber package, 1x ROG stickers, 1x ROG thank you card, 1x ROG Bottle Opener, 1x USB drive with utilities and drivers, 1x Quick start guide.

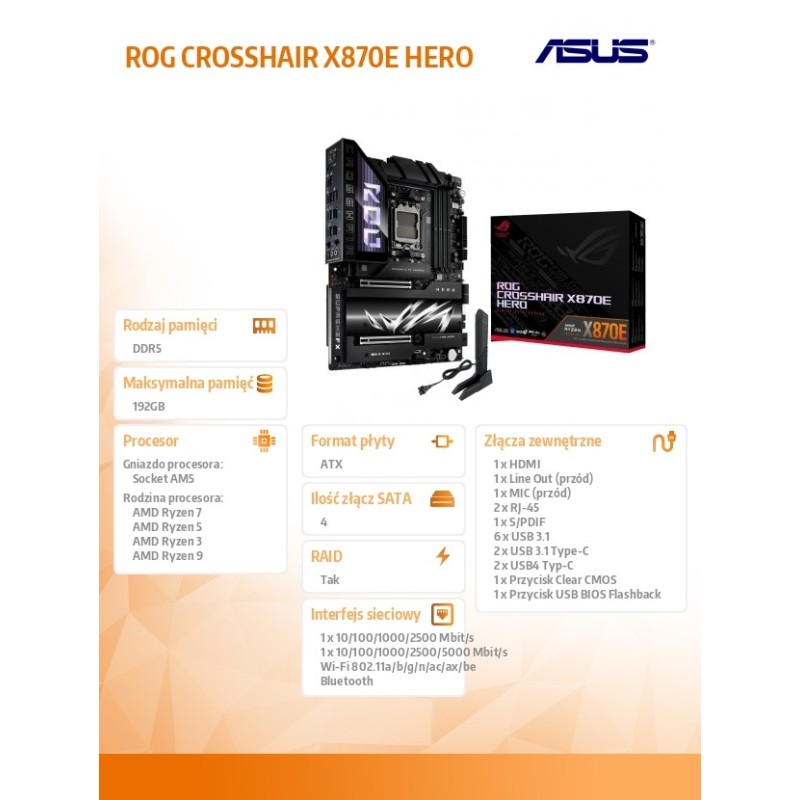

Specyfikacja techniczna
| Bios | 256Mb Flash ROM, UEFI AMI BIOS WOL by PME, PXE |
| Chipset płyty głównej | AMD X870 |
| Format płyty | ATX |
| Gniazda karty dźwiękowej | Wewnętrzne gniazdo audio przedniego panelu, 2x Audio Jack, Wyjście optyczne S/PDIF |
| Gniazda karty graficznej | HDMI, 2x USB4 Type-C |
| Gniazda USB na płycie głównej | 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 2x USB 3.2 Type-C (2 porty) |
| Gniazdo procesora | Socket AM5 |
| Gniazdo zasilania | ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin) |
| Ilość złącz pamięci DDR5 | 4 |
| Inne porty i gniazda | Alteration PCIe mode switch, LN2 Mode jumper, FlexKey button, ReTry button, Start button, Clear CMOS button(s), 4-pin CPU Fan header, BIOS FlashBack button , Thermal Sensor header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 10-1 pin System Panel header, 3x Addressable Gen 2 header, 4x 4-pin... |
| Maksymalna ilość portów USB 2.0 | 4 |
| Maksymalna ilość portów USB 3.x | 14 |
| Maksymalna ilość portów USB 4.0 | 2 |
| Maksymalna wielkość pamięci | 192 GB |
| Obsługiwane typy procesorów | AMD Ryzen™ (AM5) |
| Port Bluetooth | Bluetooth V5.4 |
| Port LAN | 1x 5 Gigabit LAN Realtek®, 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Intel®) |
| Port PS/2 | Brak |
| Port równoległy (LPT) | Brak |
| Port szeregowy (COM) | Brak |
| Port Wi-Fi | IEEE 802.11a/b/g/n/ac/ax/be |
| Porty USB na panelu tylnym | 6x USB 3.1 + 2x USB 3.1 Type-C + 2x USB4 Type-C |
| Tryb pracy pamięci RAM | Dual Channel |
| Wbudowana karta graficzna | Brak lub AMD Radeon™ Graphics (zależy od procesora) |
| Wymiary [S x W] (mm) | 305 x 244 |
| Wyposażenie dodatkowe | 1x ARGB RGB extension cable, 4x SATA 6Gb/s cables, 1x ASUS WiFi Q-Antenna, 1x Q-connector, 2x M.2 Q-Latch package, 3x M.2 Q-Slide package, 5x M.2 rubber package, 1x ROG stickers, 1x ROG thank you card, 1x ROG Bottle Opener, 1x USB drive with utilities and drivers, 1x Quick start guide |
| Zawiera baterię / akumulator | Tak |
| Zintegrowana karta dźwiękowa | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 |
| Zintegrowany kontroler SATA | Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 5x M.2 + RAID 0,1,5,10 + 1x SlimSAS |
ROG CROSSHAIR X870E HERO
1 Przedmiot
Opis
Socket AM5
Gniazdo procesora
ATX
Format płyty
256Mb Flash ROM, UEFI AMI BIOS WOL by PME, PXE
Bios
Tak
Zawiera baterię / akumulator

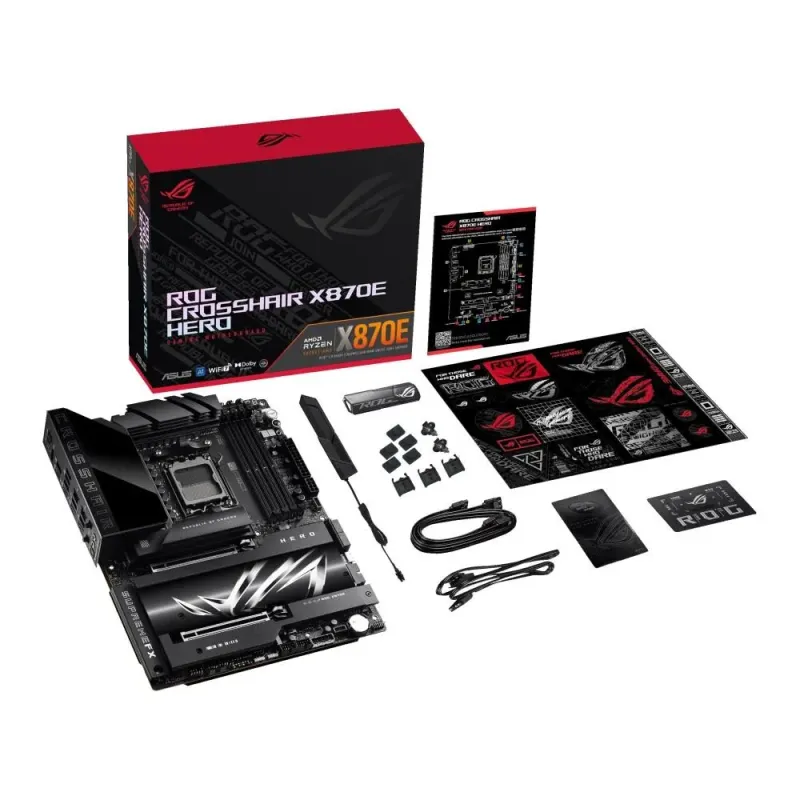

1x ARGB RGB extension cable

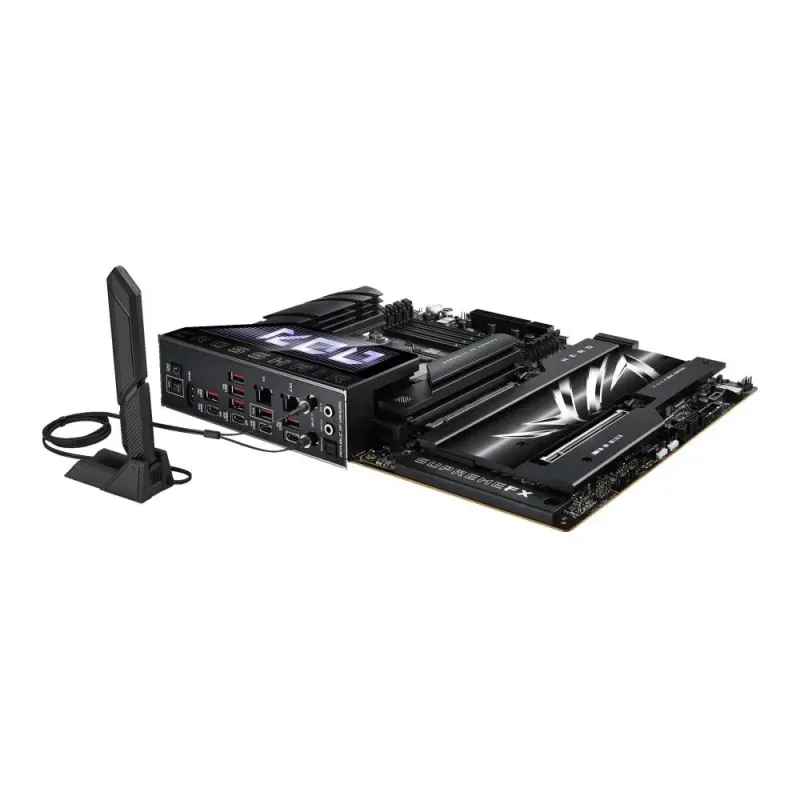

1x ASUS WiFi Q-Antenna
1x Q-connector
1x Quick start guide
1x ROG Bottle Opener
1x ROG stickers
1x ROG thank you card
1x USB drive with utilities and drivers
2x M.2 Q-Latch package
3x M.2 Q-Slide package
4x SATA 6Gb/s cables
5x M.2 rubber package
1x ASUS WiFi Q-Antenna
1x Q-connector
1x Quick start guide
1x ROG Bottle Opener
1x ROG stickers
1x ROG thank you card
1x USB drive with utilities and drivers
2x M.2 Q-Latch package
3x M.2 Q-Slide package
4x SATA 6Gb/s cables
5x M.2 rubber package
Wyposażenie dodatkowe
305 x 244
Wymiary [S x W] (mm)
Bluetooth V5.4
Port Bluetooth
192 GB
Maksymalna wielkość pamięci
1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Intel®)
1x 5 Gigabit LAN Realtek®
1x 5 Gigabit LAN Realtek®
Port LAN
IEEE 802.11a/b/g/n/ac/ax/be
Port Wi-Fi
AMD X870
Chipset płyty głównej
Brak lub AMD Radeon™ Graphics (zależy od procesora)
Wbudowana karta graficzna
AMD Ryzen™ (AM5)
Obsługiwane typy procesorów
AMD CPU specifications
Graphics specifications may vary between CPU types. Please refer to
Supports 4K@60Hz as specified in HDMI 2.1
Supports max. 4K@60Hz as specified in DisplayPort 1.4a
Graphics specifications may vary between CPU types. Please refer to
Supports 4K@60Hz as specified in HDMI 2.1
Supports max. 4K@60Hz as specified in DisplayPort 1.4a
Uwagi do karty graficznej
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Uwagi do procesora
Dual Channel
Tryb pracy pamięci RAM
- 8000+MT/s(OC) with Ryzen 7000 Series Processors
- 8200+MT/s(OC) with Ryzen 9000 Series Processors
- 8600+MT/s(OC) with Ryzen 8000 Series Processors
ASUS Enhanced Memory Profile (AEMP)
ECC and Non-ECC, Un-buffered Memory
NitroPath DRAM Technology
Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Supported memory types, data rate (speed), and number of DRAM modules vary
Supports AMD Extended Profiles for Overclocking (EXPO)
Supports up to:
depending on the CPU and memory configuration, for more information please
refer to CPU/Memory Support list under the Support tab of product
- 8200+MT/s(OC) with Ryzen 9000 Series Processors
- 8600+MT/s(OC) with Ryzen 8000 Series Processors
ASUS Enhanced Memory Profile (AEMP)
ECC and Non-ECC, Un-buffered Memory
NitroPath DRAM Technology
Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Supported memory types, data rate (speed), and number of DRAM modules vary
Supports AMD Extended Profiles for Overclocking (EXPO)
Supports up to:
depending on the CPU and memory configuration, for more information please
refer to CPU/Memory Support list under the Support tab of product
Uwagi do pamięci RAM
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 5x M.2 + RAID 0,1,5,10 + 1x SlimSAS
Zintegrowany kontroler SATA
- 4 x SATA 6Gb/s ports
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- SlimSAS slot supports PCIe 4.0 x4 mode
0/1/5/10. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID
AMD Ryzen 8000 Series Desktop Processors:
AMD Ryzen 9000 & 7000 Series Desktop Processors:
AMD X870E Chipset:
M.2_2 will be disabled
When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled
When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4,
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- SlimSAS slot supports PCIe 4.0 x4 mode
0/1/5/10. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID
AMD Ryzen 8000 Series Desktop Processors:
AMD Ryzen 9000 & 7000 Series Desktop Processors:
AMD X870E Chipset:
M.2_2 will be disabled
When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled
When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4,
Uwagi do kontrolera SATA
2x USB4 Type-C
HDMI
HDMI
Gniazda karty graficznej
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Zintegrowana karta dźwiękowa
2x Audio Jack
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF
Wewnętrzne gniazdo audio przedniego panelu
Wyjście optyczne S/PDIF
Gniazda karty dźwiękowej
A chassis with an HD audio module in the front panel is required to
ESS® ES9219 QUAD DAC
Gold-plated audio jacks
High quality 120 dB SNR stereo playback output and 110 dB SNR recording
If you wish to use spatial audio, make sure to connect your audio output
Impedance sense for front and rear headphone outputs
Premium audio capacitors
Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
Supports up to 32-Bit/384 kHz playback on front panel
SupremeFX Shielding Technology
The LINE OUT port on the rear panel does not support spatial audio
device to the audio jack on the front panel of your chassis or use a USB
interface audio device.
support 7.1 Surround Sound audio output
ESS® ES9219 QUAD DAC
Gold-plated audio jacks
High quality 120 dB SNR stereo playback output and 110 dB SNR recording
If you wish to use spatial audio, make sure to connect your audio output
Impedance sense for front and rear headphone outputs
Premium audio capacitors
Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
Supports up to 32-Bit/384 kHz playback on front panel
SupremeFX Shielding Technology
The LINE OUT port on the rear panel does not support spatial audio
device to the audio jack on the front panel of your chassis or use a USB
interface audio device.
support 7.1 Surround Sound audio output
Uwagi do karty dźwiękowej
- 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 &
- 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 &
- 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8
- When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will
- When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will
AMD Ryzen 9000 & 7000 Series Desktop Processors:
AMD Ryzen™ 8500 & 8300 Series Desktop Processors:
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors:
Please check the PCIe bifurcation table on the support
To ensure compatibility of the device installed, please refer to
run x4
total bandwidth for x4, PCIEx16_2 will be disabled)
total bandwidth for x8, PCIEx16_2 will be disabled)
will run x8.
x8/x4/x4 modes)
- 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 &
- 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8
- When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will
- When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will
AMD Ryzen 9000 & 7000 Series Desktop Processors:
AMD Ryzen™ 8500 & 8300 Series Desktop Processors:
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors:
Please check the PCIe bifurcation table on the support
To ensure compatibility of the device installed, please refer to
run x4
total bandwidth for x4, PCIEx16_2 will be disabled)
total bandwidth for x8, PCIEx16_2 will be disabled)
will run x8.
x8/x4/x4 modes)
Uwagi do złącz PCI
ASUS LANGuard
Uwagi do karty sieciowej
4
Maksymalna ilość portów USB 2.0
14
Maksymalna ilość portów USB 3.x
6x USB 3.1 + 2x USB 3.1 Type-C + 2x USB4 Type-C
Porty USB na panelu tylnym
2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 2x USB 3.2 Type-C (2 porty)
Gniazda USB na płycie głównej
Brak
Port PS/2
Brak
Port szeregowy (COM)
Brak
Port równoległy (LPT)
3x Addressable Gen 2 header
4-pin AIO Pump header
4-pin CPU Fan header
4-pin CPU OPT Fan header
4x 4-pin Chassis Fan headers
10-1 pin System Panel header
Alteration PCIe mode switch
BIOS FlashBack button
Clear CMOS button(s)
FlexKey button
LN2 Mode jumper
ReTry button
Start button
Thermal Sensor header
W_PUMP+ header
Wi-Fi module with an antenna connector
4-pin AIO Pump header
4-pin CPU Fan header
4-pin CPU OPT Fan header
4x 4-pin Chassis Fan headers
10-1 pin System Panel header
Alteration PCIe mode switch
BIOS FlashBack button
Clear CMOS button(s)
FlexKey button
LN2 Mode jumper
ReTry button
Start button
Thermal Sensor header
W_PUMP+ header
Wi-Fi module with an antenna connector
Inne porty i gniazda
ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)
Gniazdo zasilania
4
Ilość złącz pamięci DDR5
2
Maksymalna ilość portów USB 4.0
2x2 Wi-Fi 7 (802.11be)
For Windows 10, please note that no driver is available, refer to the Wi-Fi
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate
The Bluetooth version may vary, please refer to the Wi-Fi module
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary
Wi-Fi features may vary depending on the operating system
between countries
chipset vendor's website for details
functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E
manufacturer's website for the latest specifications
For Windows 10, please note that no driver is available, refer to the Wi-Fi
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate
The Bluetooth version may vary, please refer to the Wi-Fi module
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary
Wi-Fi features may vary depending on the operating system
between countries
chipset vendor's website for details
functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E
manufacturer's website for the latest specifications
Uwagi do WiFi / BT
Specyficzne kody
- EAN13
- 4711387710302
chat
Komentarze (0)
16 innych produktów w tej samej kategorii:
Płyta Gigabyte X870E A ELITE X /AMD
1 487,00 zł
Płyta Gigabyte X870 GAMING X WIFI7 /AMD
1 088,99 zł
Płyta MSI PRO B850M-P WIFI /AMD
680,00 zł
Płyta Gigabyte B650M GAMING PLUS WF /AMD
574,00 zł
Płyta Gigabyte B850 GAMING WF6 /AMD
701,00 zł
Płyta Gigabyte X870E A XTREME AI TOP /AMD
3 471,00 zł
Płyta MSI MPG X870I EDGE TI EVO WIFI /AMD
1 999,99 zł
Płyta Gigabyte X870E AORUS ELITE WIFI7 /AMD
1 248,00 zł
Płyta MSI B850M GAMING PLUS WIFI /AMD
731,99 zł
Płyta Asus ROG STRIX B650E-I GAMING WIFI /AMD
1 362,99 zł
Ostatnio przeglądane
Zobacz także
Płyta ASrock B850M Riptide WiFi /AMD
702,00 zł
Płyta Gigabyte B650M GAMING PLUS WF /AMD
574,00 zł
Płyta MSI PRO B850M-P WIFI /AMD
680,00 zł
Płyta ASrock B850 Pro RS WiFi /AMD
728,00 zł
